M07Z40M15-02 CSRN-XHE2 FFA 12.2-24.4 13

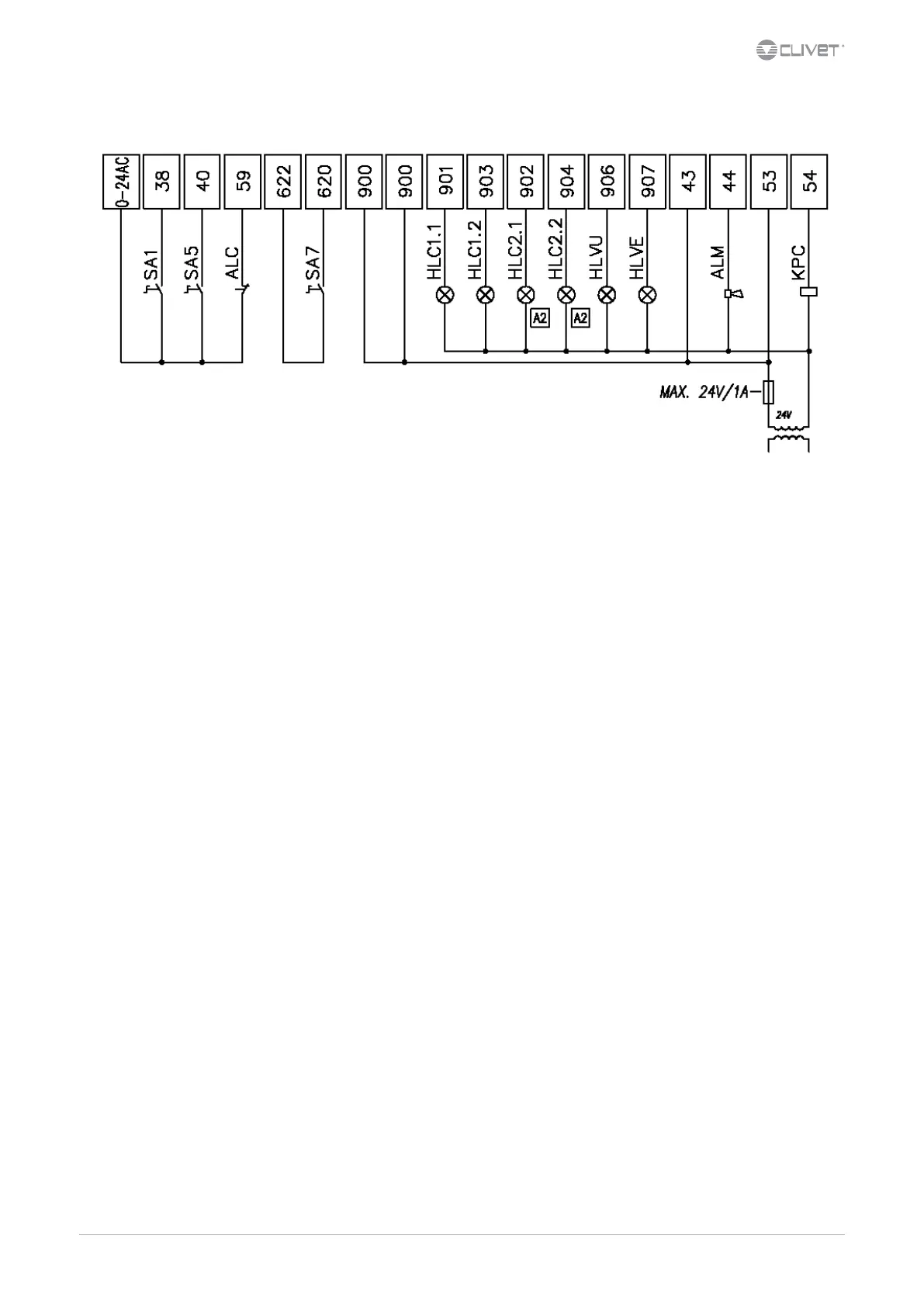

6.5 Connections performer by customer
ALC Free contact from signalling system of re alarm HLVU Indicating light of the supply fan status
ALM cumulative fault signal KPC Pump control of the integration coil
HLC1.1..2.2 Compressor status signal lamp SA1 * Remote ON/OFF selector
HLVE Indicating light of the return and/or supply fan status SA5 * Settable input
SA7 Enabling selector to the umidier manual discharge
* pag 22
6.6 SA5 input
SA5: Summer / Winter mode remote change
Summer - winter mode remote change P1010
enabled from keyboard 0
enabled by SA5* 1
enabled by BMS 2
* Fan-only function from SA5 not available
function Fan only P2323
disabled 0
enabled by BMS 1
enabled by SA5* 2
enabled from keyboard 3
*SUMMER - WINTER change mode by SA5 not available
