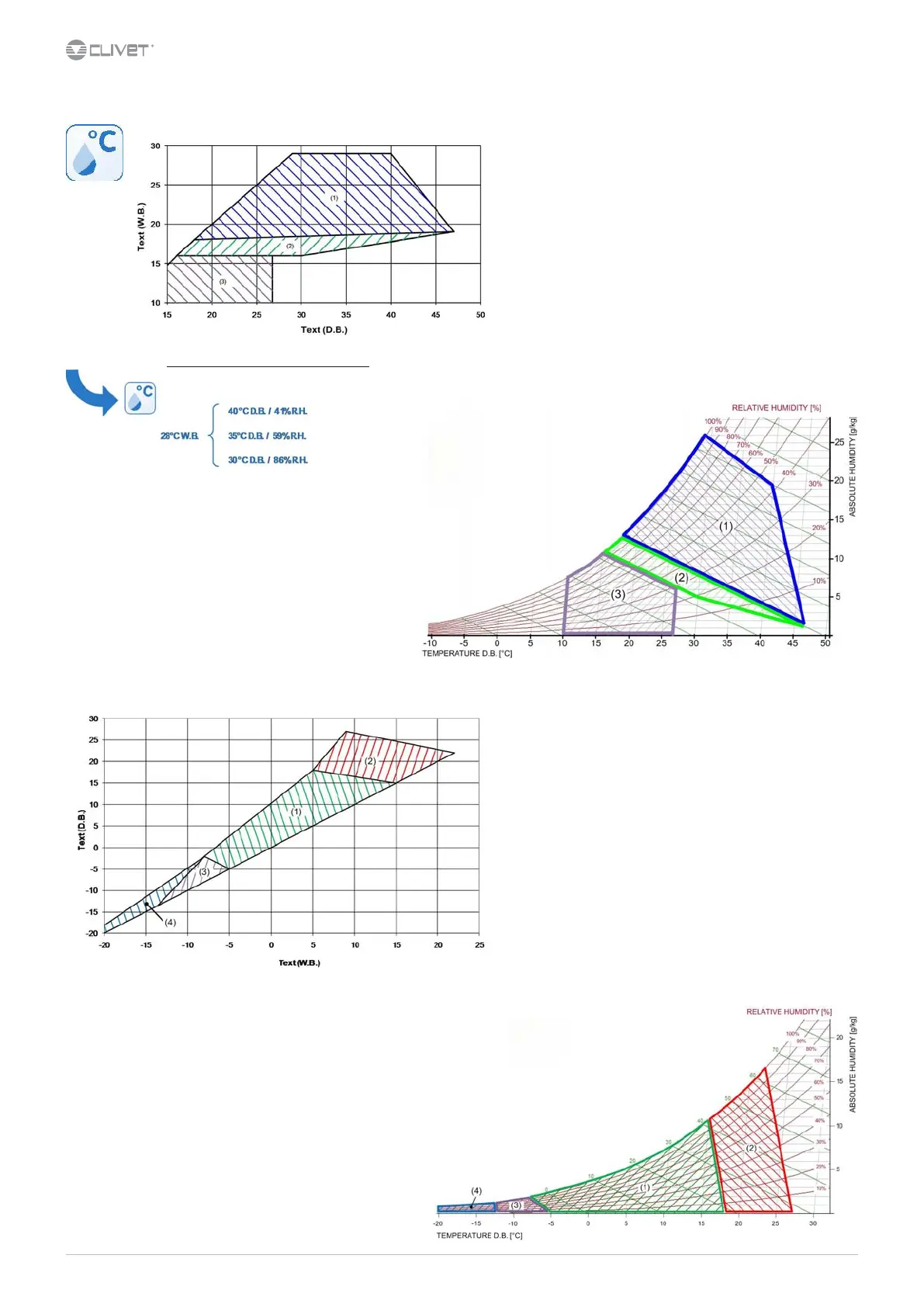

CLIVET CSRN-XHE2 - Cooling and Heating Operating Ranges

Operating range (Cooling)
Operating range (Heating)
The limits are indicative and take into consideration:
- general and non specic sizes
- standard airow
- operation at full load
- unit correctly installed and serviced
Text (D.B.) = Ambient air temperqature / handling coil inlet
dry bulb measured temperature
(D.B.=DRY BULB)
Text (W.B.) = Ambien air temperature / handling coil inlet
WARNING! WET BULB TEMPERATURE
(W.B. = WET BULB)
1. Operation range at full load
2. Operating eld at partial load (one active compressor for each
refrigerant circuit)
3. FREE-COOLING range operating
The limits are indicative and take into consideration:
- general and non specic sizes
- standard airow
- operation at full load
- unit correctly installed and serviced
Text (D.B.) = Ambient air temperqature / handling coil inlet
dry bulb measured temperature
(D.B.=DRY BULB)
TEXT (W.B.) = Fresh air temperature/inlet of treatment coil
WARNING! WET BULB TEMPERATURE
(W.B. = WET BULB)
1. Operation range at full load
2. Operating eld at partial load (one active compressor for each refrigerant
circuit)
3. Operating eld of the unit with external low temperature equipment and
pre-heating resistances or hot water coil options.
4. Operating eld of the unit with external low temperature equipment and
hot water coil or gas heating module options
WET BULB TEMPERATURE - EXAMPLE

