3 - POSITIONING
3.7 VERTICAL FLOOR OR WALL INSTALLATION
When floor mounting with support pins, respect the min. ground height of 80mm., for the pin mounting and refer to the individual
instructions leaflets supplied and the relative manual

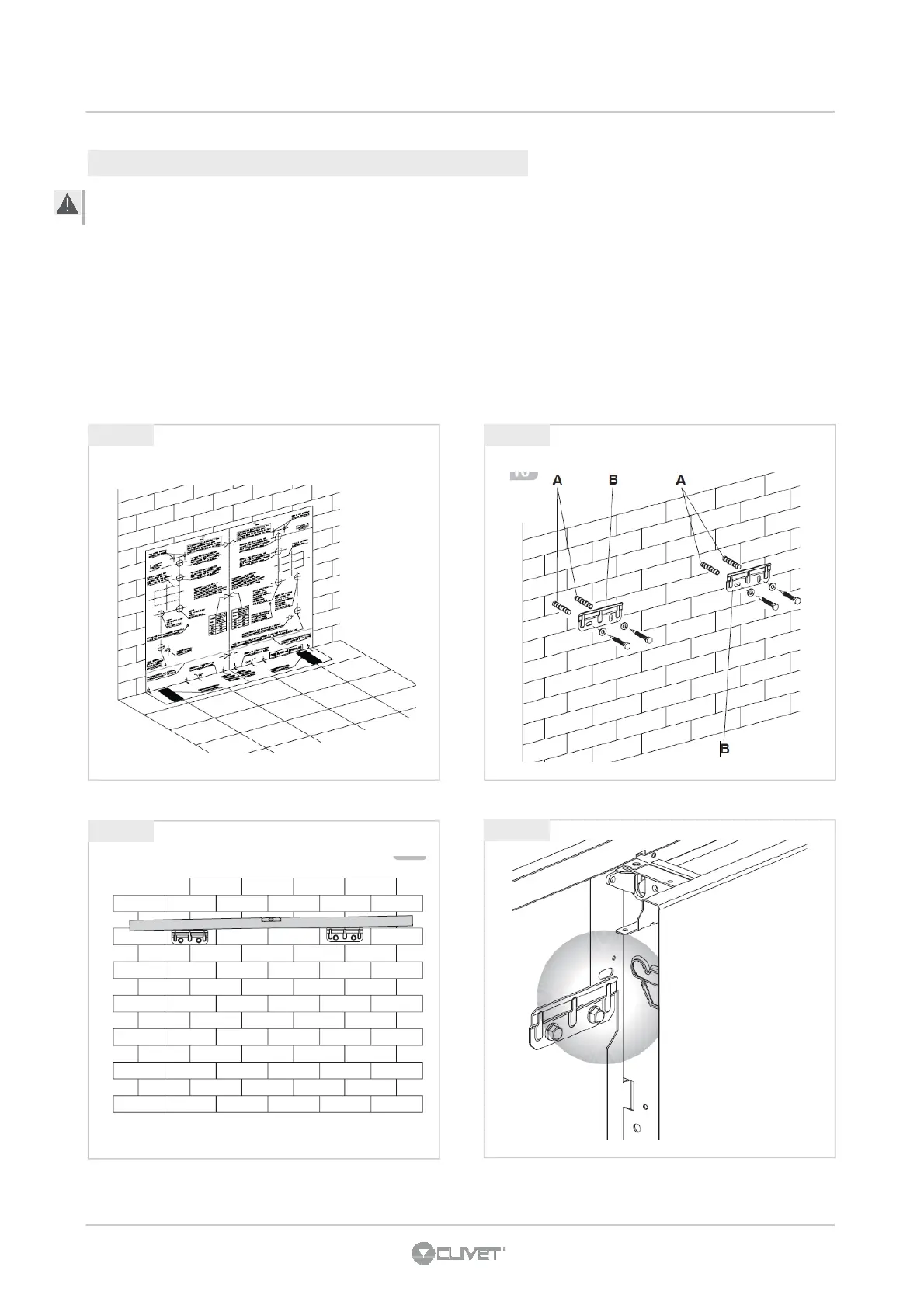

• Using the paper template, trace the position of the two fixing brackets on the wall (fig. 3.2).
• Use a suitable drill to make the holes with and insert the toggle bolts (2 for each bracket) (fig. 3.3 ref. A); fix the two brackets (fig.
3.3 ref. B). Do not over-tighten the screws so that the brackets can be adjusted with a spirit level (fig. 3.4).
• Fully tighten the four screws to block the two brackets.
• Check the stability by manually moving the brackets to the right and to the left, up and down.
• Mount the unit, checking that it fits correctly onto the brackets and checking that it is stable (fig. 3.5).
fig 3.2 fig 3.3
fig 3.4
fig 3.5
