CLIVET ELFOROOM 3 - 9 - TECHNICAL INFORMATION

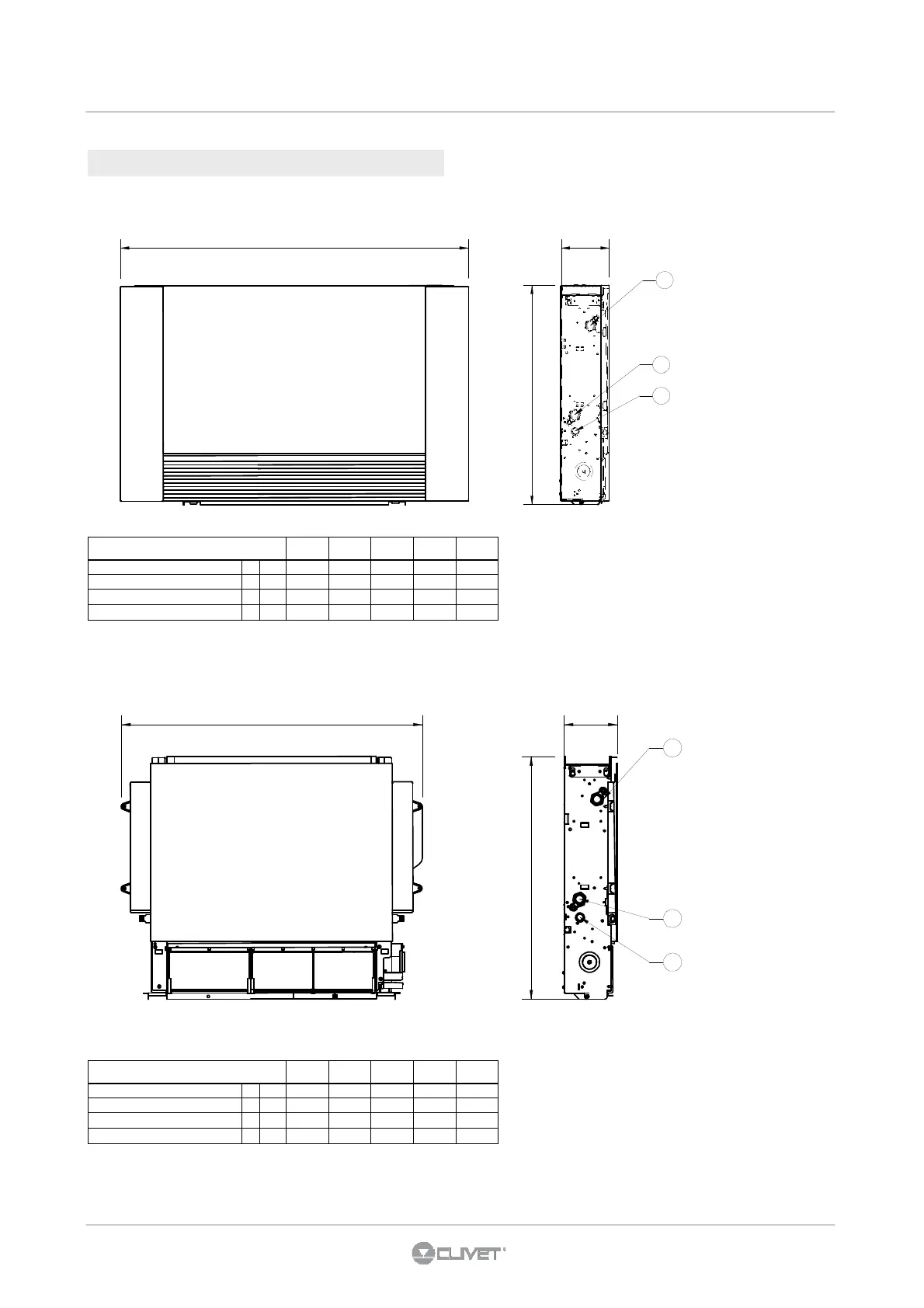

DIMENSIONS
9 - TECHNICAL INFORMATION
(1) WATER INPUT OF EUROKONUS 3/4” EXCHANGER
(2) WATER OUTPUT OF EUROKONUS 3/4” EXCHANGER
(3) CONDENSATE DISCHARGE DUCT Ø 14 MM
SIZE
3 5 11 15 17
A mm 737 937 1137 1337
B mm 131 131 131 131
C mm 579 579 579 579
Net weight kg 17 20 23 26
1537
131
579
29
Built-in version - 2 pipes
Cased version - 2 pipes
SIZE
3 5 11 15 17
A mm 527 727 927 1227
B mm 126 126 126 126
C mm 579 579 579 579
Net weight kg 9 12 15 18
1327
126
579
21
A B
1
2
3
C
1
2
3
A B
C
82
