Description of the system
3. Description of the system
3.1 Main components
3.1.1 Sizes 2.1 to 3.1
1
2
3
4
5
6 7 8
9
10
11
1213
14
15

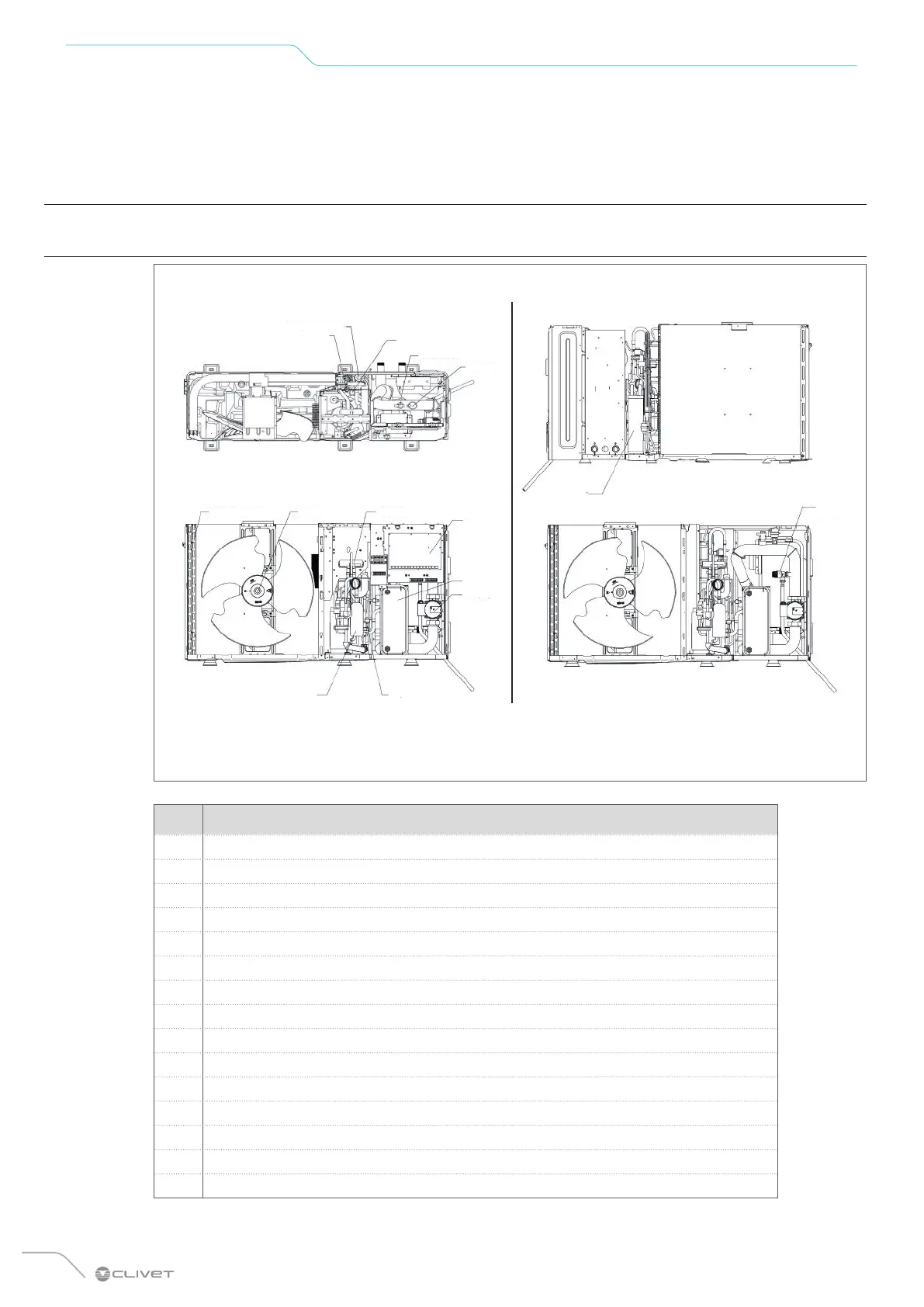

Fig. 1
No. Component
1
Pressure sensor
2
Electronic expansion valve
3
HP pressure switch
4
Water flow switch
5
Air vent valve
6
Source exchanger: finned coil
7
Fan
8
4-way valve
9
Main board
10
Water side heat exchanger
11
Water circulator
12
LP pressure switch
13
Compressor inverter
14
Gas-liquid separator
15
Water pressure relief valve
