Description of the system
3.2.2 Sizes 4.1 to 8.1
4.1~8.1
2
5.3
1
7
3
4
5.4
5.5
5.1
5.2
6
8
9
12
11
10
1
4
5.4
5.5
6
9
11
10
3
7
8
12
2
5.3
4.1~8.1

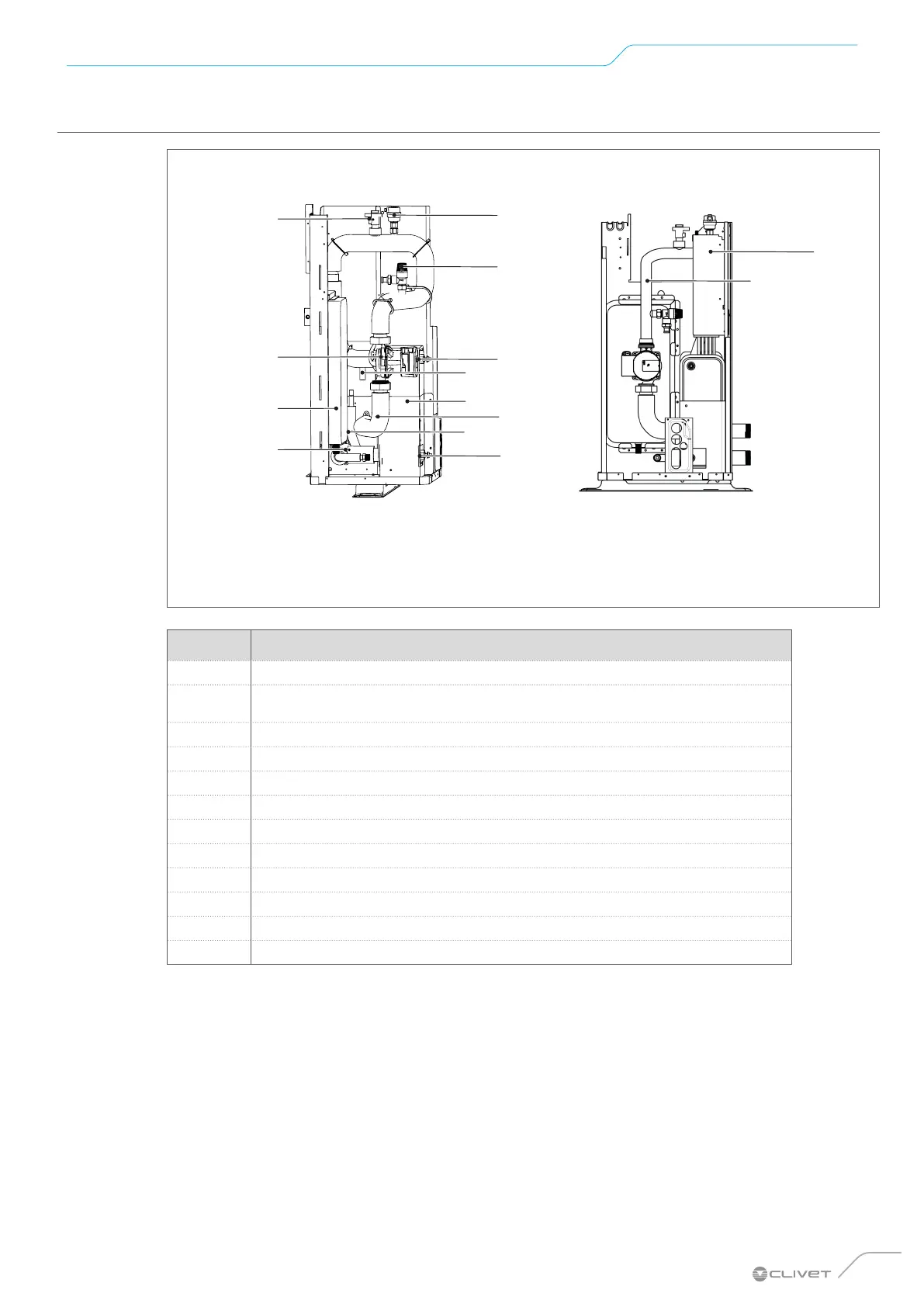

Version with built-in heaterStandard version without built-in heater
Fig. 6
No. Component
1 Automatic air vent valve
2
Additional/backup electric heater
(optional configuration)
3 Expansion tank
4 Refrigerant gas pipe
5 Temperature sensors
6 Refrigerant pipe
7 Flow switch
8 Pump
9 Plate heat exchanger
10 Water outlet pipe
11 Pressure relief valve
12 Water inlet pipe
