68
Electrical connections
Installation in electrical box 86
Coperchio
posteriore
Cavi di
segnale
Tre fori per vite a muro utilizzare M4X20
Fori per le viti da installare sulla scatola elettrica 86
usare due viti M4X25

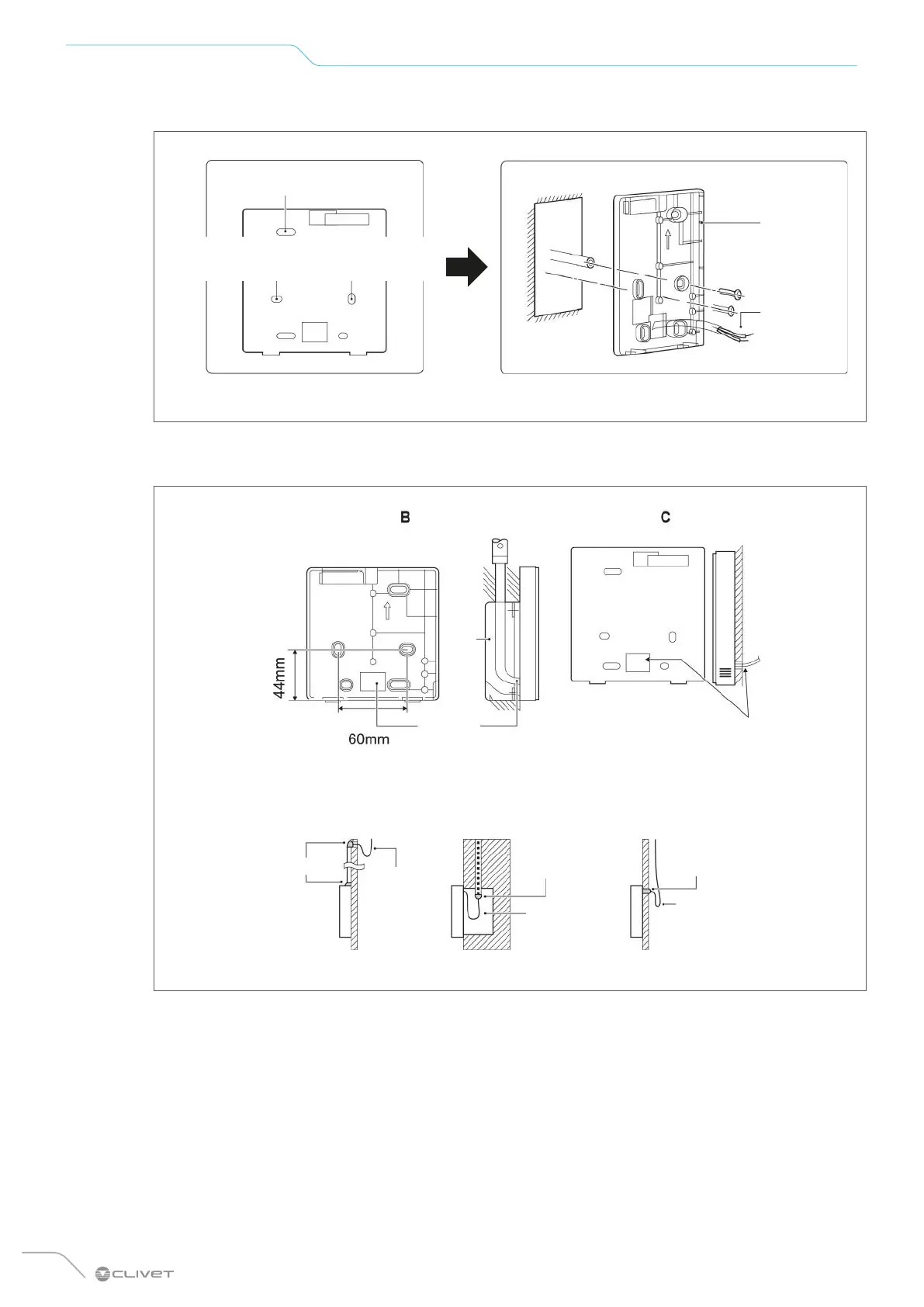

Fig. 57
Prevent water from entering the wired controller, use siphons and mastic to seal the wire connectors during
installation.
Scatola elettrica
Foro per i
cavi
Foro a parete e foro per i cavi
Diametro: ø8 --ø10
Mastice
Sifone
Sifone
Mastice
Mastice
Sifone
Fig. 58
Three holes for M4X20 wall
screw use
Holes for screws to install on electrical
box 86 use two M4X25 screws
Back cover
Signal cables
Cable
holes
Mastic
Siphon
Mastic
Siphon
Mastic
Siphon
Electrical box
Wall hole and cable hole
Diameter: ø8 --ø10
