M0G940E8-00 04/07/08 pag 20
6. ADDITIONAL HEATING ELEMENT
It is possible to control an external element for additional
heating, typically electric heaters.
The control can be:
• ON-OFF ( max 1 A )
• modulating WITH SIGNAL 0-10 V
(in this case a plug-in expansion module is necessary, an
optional that must be assembled by the customer (refer to the
instructions in the kit) and enabled with the parameter 140=1

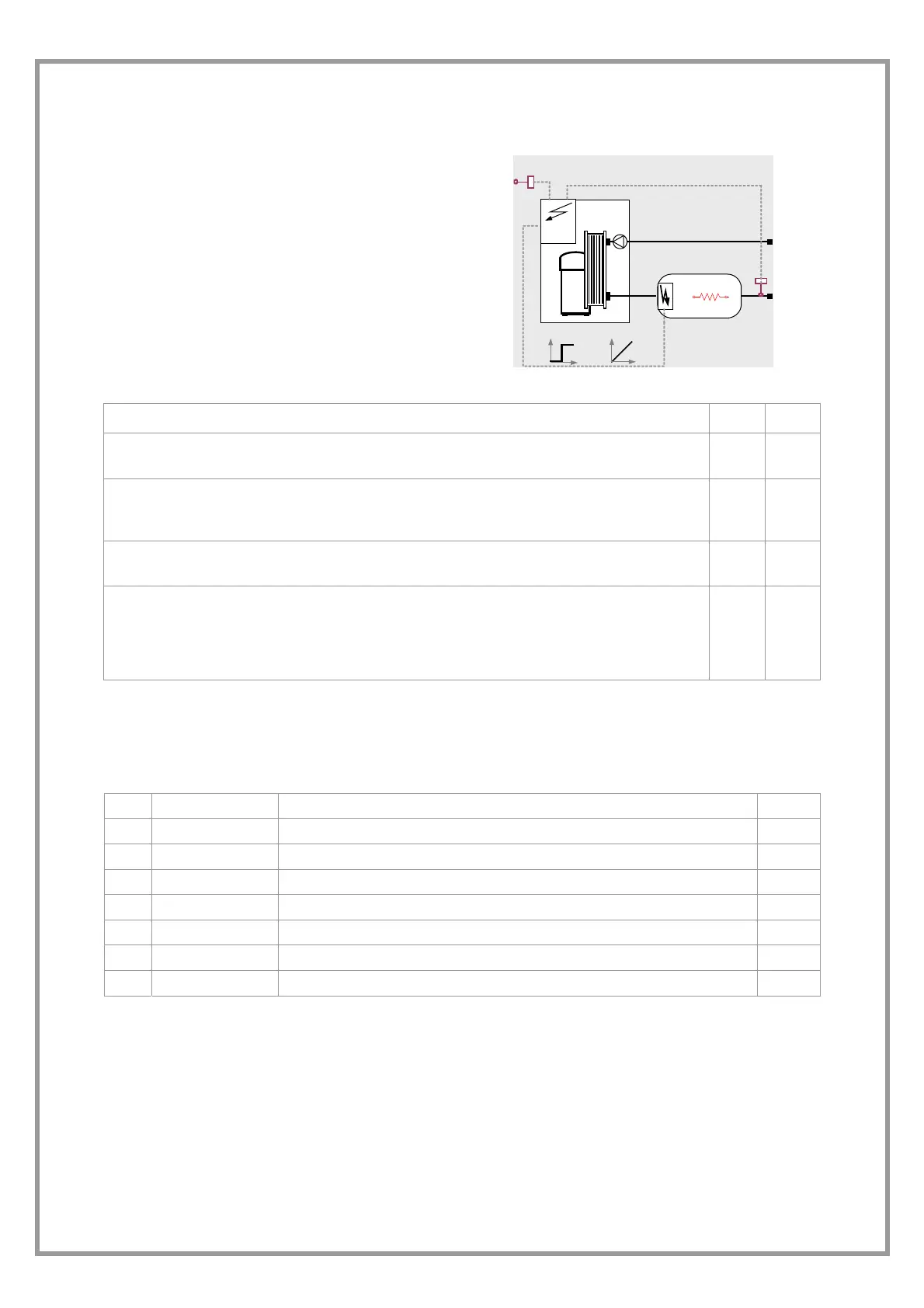

The diagram on the side is indicative: check the position of the
water connections on the dimensional drawing of the unit or on
the adhesive labels on the unit itself
T out1
T ext
O - 10V
ON -OFF
The parameters 178 and 179 can be used to select the behaviour of the heaters: P 178 P 179
AS AN ADDITIONAL ELEMENT ONLY
the heaters are considered as a second power step
1 0
IN REPLACEMENT OF THE COMPRESSOR
the heaters operate only when the compressor is disabled due to an external temp. lower than
par. 180
1 1
MAIN ADJUSTMENT UNIT IN HEATING MODE
in heat pump mode the compressor is disabled
2 1
POWER LIMITATION ACCORDING TO EXTERNAL TEMPERATURE
the following behaviour occurs as the external temperature decreases:
1st Zone = Compressor Enabled / Heaters Disabled
2nd Zone = Compressor Enabled / Heaters Enabled
3rd Zone = Compressor Disabled / Heaters Enabled
2 2
It is necessary to declare the presence of the outlet probe Tout 1 with par. 70 = 1.
This probe becomes the reference for heat adjustment in heating mode; furthermore it manages the antifreeze protection
for this part of the system.
par Description Meaning value
70 Tout1En Enables output probe
140 PlugInEn Enables PLUG-IN presence . 1=YES / 0=NO
177 PotRes Power provided by the additional heaters 100
178 ModeHeater Enable compressor operation in heating 0
179 LimPotTextEn Enable capacity limit for ext. temperature 0
180 LimText Ext. temperature limit for compressor operation 0
181 IstRes Differential on LimText value for heaters activation 5
