CLIVET WSAN-XPR Series - Visible Status Display

M0G940E8-00 04/07/08 pag 40

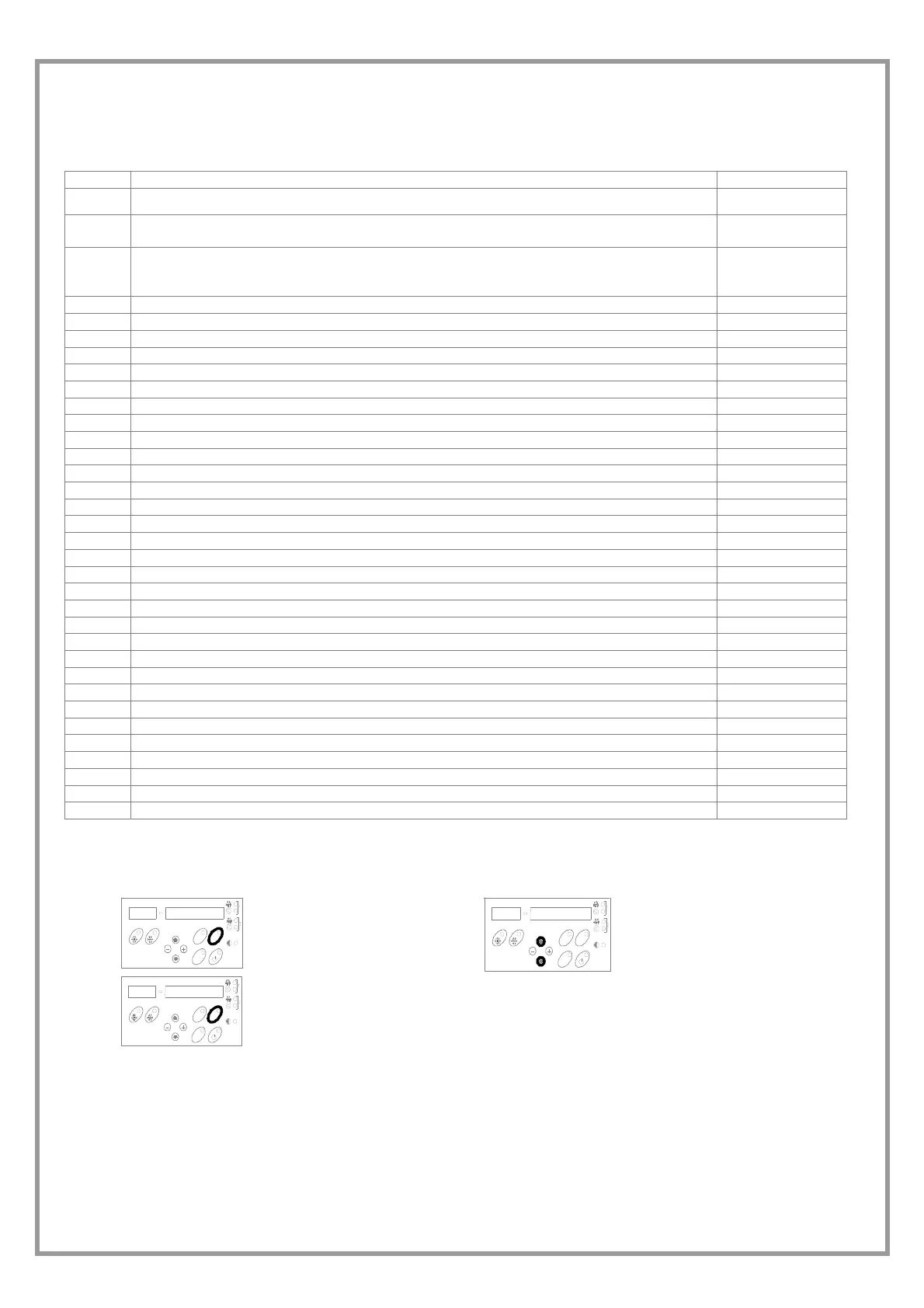

VISIBLE STATUS FROM REMOTE KEYBOARD OR SERVICE KEYBOARD
INDEX DESCRIPTION VALUE
1
Current Set Point °C
2
Temperature drop in degrees centigrade given by the compressor including
compensations, if any
°C
3
Resource activation timer
When this value reaches the value fixed at the 4 status, the thermal regulator will compare
the input temperature with the set point and will activate the resources, if necessary
Secondi
4
Dynamic TimeScan relating to source activation Secondi
5
Value in degrees of the external air compensation °C
6
Value in degrees of the water reset signal compensation °C
7
Value in degrees of the charge compensation °C
9
Inlet temperature °C
10
Outlet temperature °C
11
Outlet temperature of radiant panel water °C
12
Coil temperature °C
13
Condensing pressure Bar
14
Fan/Valve 1 percentage 0-100%
15
Heater output temperature
18
Water Reset signal value 4-20 mA
19
Outdoor temperature °C
20
Outdoor Humidity 0-100%
21
Machine Clock - fed unit hours Num
22
Working hours C1 Num
23
Pickups C1 Num
24
Radiant panel valve status (Out-2) ON-OFF
25
Radiant panel valve status %
26
Percentage pump %
27
Integration heater status ON-OFF
28
Radiant panel valve status (Out-1) ON-OFF
29
Radiant Set Point °C
30
Keypad software EJ – t
31
Year of certification of the keyboard SW 2007
32
Month of certification of the keyboard SW 04
33
Day of certification of the keyboard SW 03
34
Base Software EJ – b
35
Year of certification of the keyboard SW 2007
36
Month of certification of the keyboard SW 03
37
Day of certification of the keyboard SW 14
STATUS DISPLAY
1
AL
AR
M
STATUS
SET
push STATUS button
2
AL
AR
M
S
T
A
T
U
S
S
E
T
Select status
3
A
L
A
RM
S
TATUS
SET
STATUS to esc
