CMC ARIZONA VORTEX KIT - CONFIGURATION: SIDEWAYS A-FRAME

LOAD
LOAD
HOBBLE STRAP
HOBBLE STRAP
SIDE VIEWTOP VIEW
VIEWS
GUYLINE
GUYLINE
GUYLINE (X2)
APPLIED
FORCE
Keep the Applied Force centered
within the footprint/Frame Plane of
the Bipod.
B

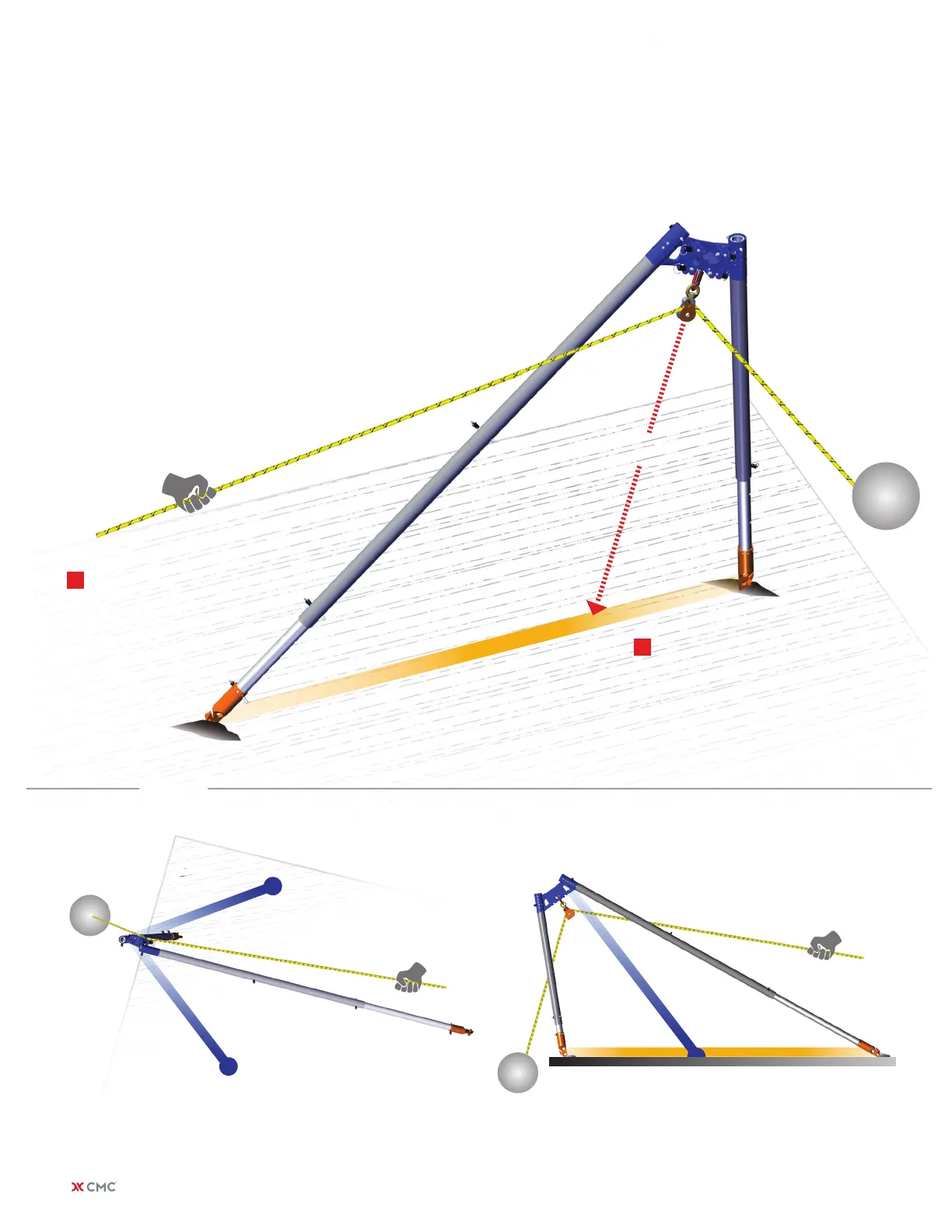

The Sideways A-Frame Bipod shown is a Directional Frame
as the rope supporting the load is directed through a pulley
on the head and is not anchored to the frame. The example
shown would require a combination of hobbles, Raptor Feet
inserted into a crevice and guys to provide security and
stability.
A Sideways A-Frame conguration requires guylines con-
nected to anchors out to each side of the frame. For this
reason, this conguration is well suited to environments
where anchors are not available at the edge.
CONFIGURATIONS
SIDEWAYS A-FRAME
Directional Frame
MODE OF USE:
CONFIGURATION:
Sideways A-Frame
A
| ARIZONA VORTEX KIT USER MANUAL28
