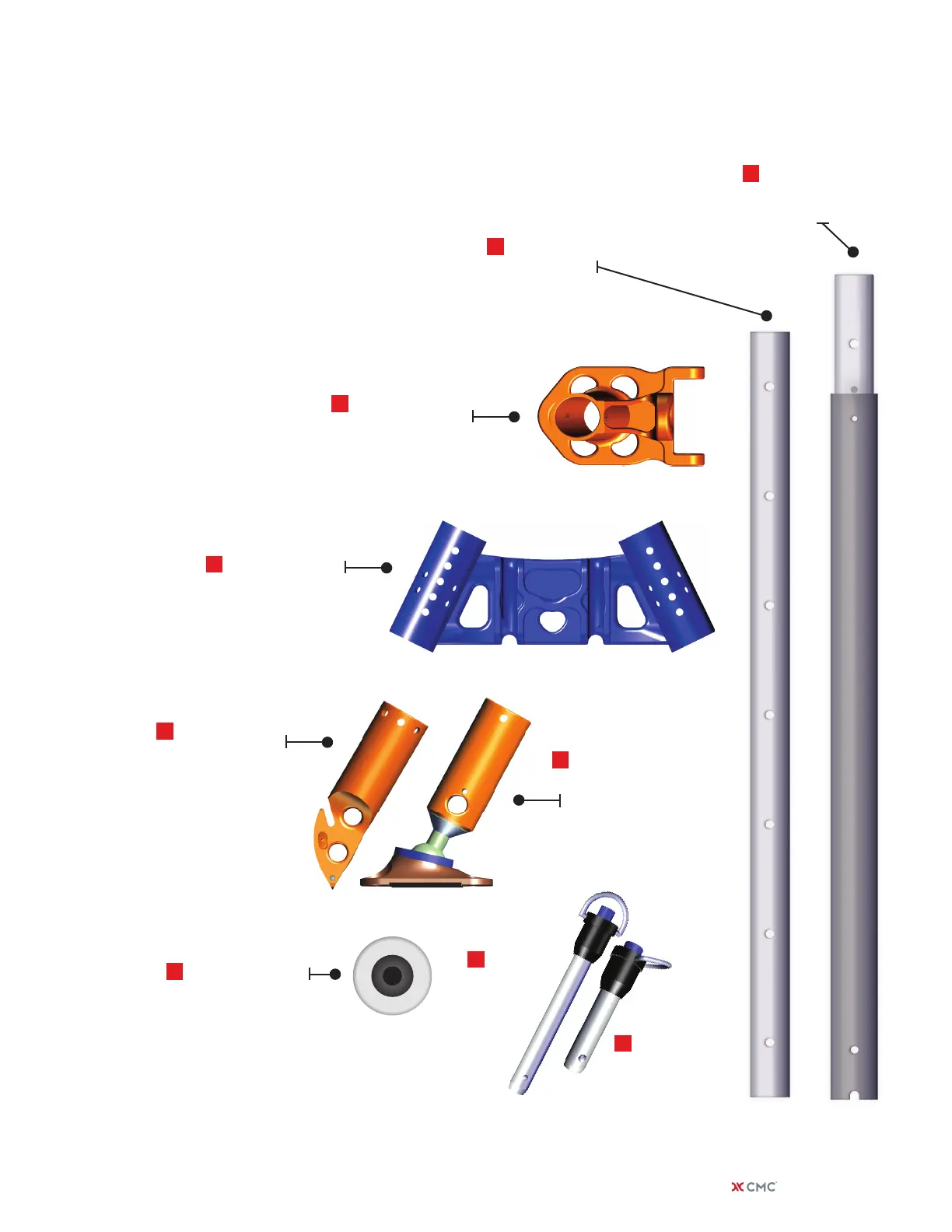

CMC ARIZONA VORTEX KIT - VORTEX HARDWARE COMPONENTS; Leg & Pin Components; Head & Foot Components; Pulley Wheel

A-FRAME HEAD
x1
RAPTOR FEET
FLAT FEET
x3
x3
PULLEY WHEEL
x1
LEG &
FOOT PINS
(Ball-lock Pin 3/8”)
x17
HEAD PINS
(Ball-lock Pin 1/2”)
x4
VORTEX HARDWARE
Attaches to Legs and Gin Pole
Head to create tripod and other
custom congurations.
Uses replaceable carbide tip
for optimal grip on appropri-
ate surfaces. Rotates to
adjust orientation.
Features rubber sole
for optimal grip on at
surfaces. Ball joint
easily adjusts to
necessary angle.
Most of the Vortex hardware
components are machined from
solid aluminum and incorporate
design features that reduce weight
and increase strength.
GIN POLE HEAD
x1
Connects to the A-Frame Head
to construct tripod & variants.
1.5” Pulley Wheel attaches to
A-Frame Head using Head Pin.
Uses high-eciency bearing.
INNER LEG
x3
Attaches to A-Frame, Gin Pole Head
and feet. Fits within Outer Leg to
adjust height or join two Outer Legs.
OUTER LEG
x7
Attaches to feet. Can be reversed to
t into A-Frame & Gin Pole Heads.
A
B
C
D
E
G
F
H
I
