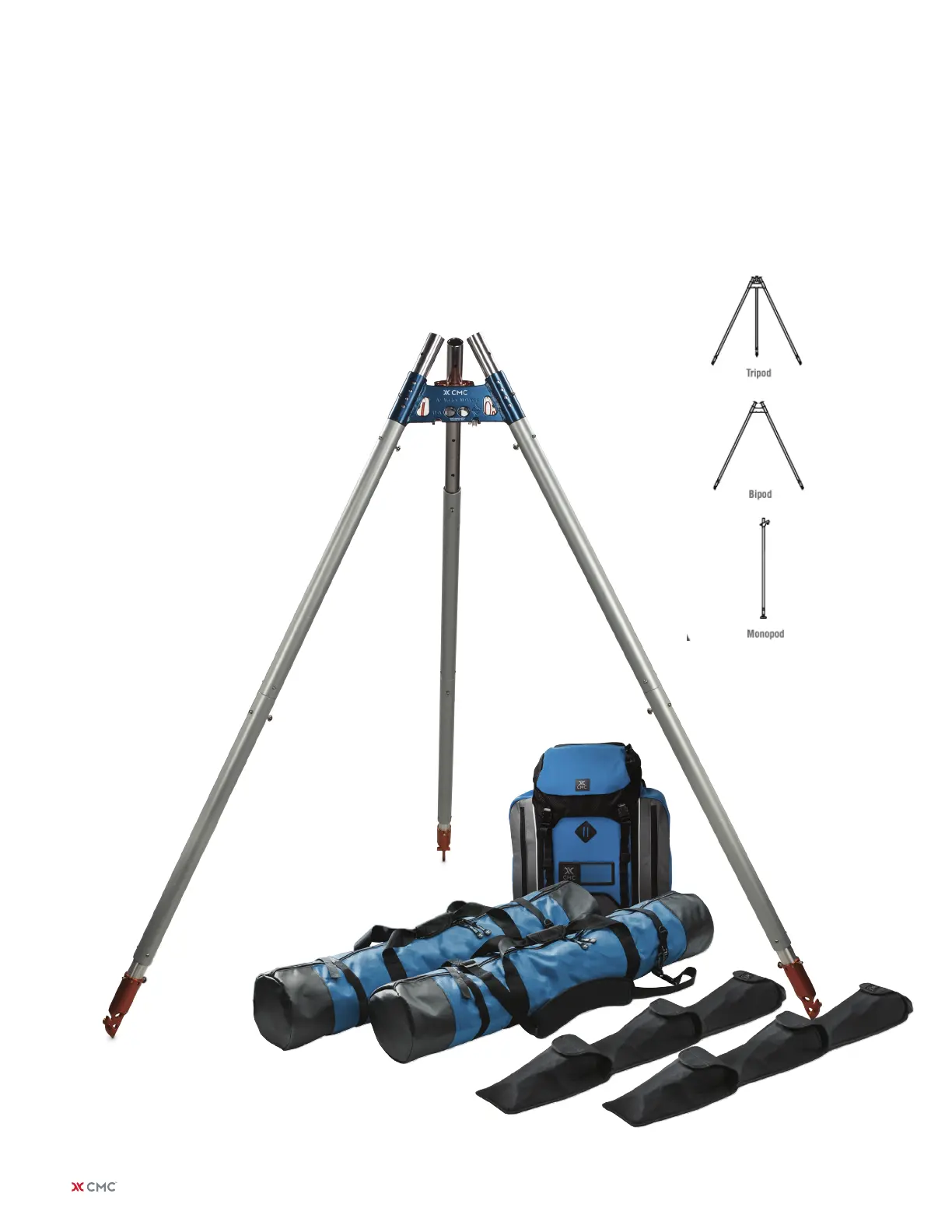

ARIZONA VORTEX KIT
COMPONENTS:
SPECIFICATIONS:
BAG SET:
2-Piece Head Set
Head Set Pulley Wheel
Head Pins (4)
Inner Legs (3)
Outer Legs (7)
Leg/Foot Pins (17)
Flat Feet (3)
Raptor Feet (3)
Orange Pin Flags (21)
Adjustable Hobble Straps (3)
8mm Tether Cord (40ft)
User Manual
RigTech Pack™
Leg Bags (2)
Foot Set Sleeves (2)
Pin Storage Bag
HORIZONTAL CLEARANCE: 8 ft 9 in (2.6 m) at foot level in 9 ft height configuration
MAX HEIGHT WITH ADDITIONAL LEGS: 12 ft (3.7 m)
SYSTEM WEIGHT: 72 lb (33 kg) with both sets of feet
PIN STRENGTH: 18,000 lbf (80 kN) for the 3/8-inch leg pins
32,000 lbf (142 kN) for the 1/2-inch head pins
| ARIZONA VORTEX KIT USER MANUAL6
