LOAD LOAD
LOAD
LOAD
SIDE VIEWTOP VIEWS
VIEWS
GUYLINE
GUYLINE
GUYLINE
GUYLINE (X2)
APPLIED
FORCE
GUYLINES
90°
120°
Keep the Applied
Force directed down
the Monopod.
B

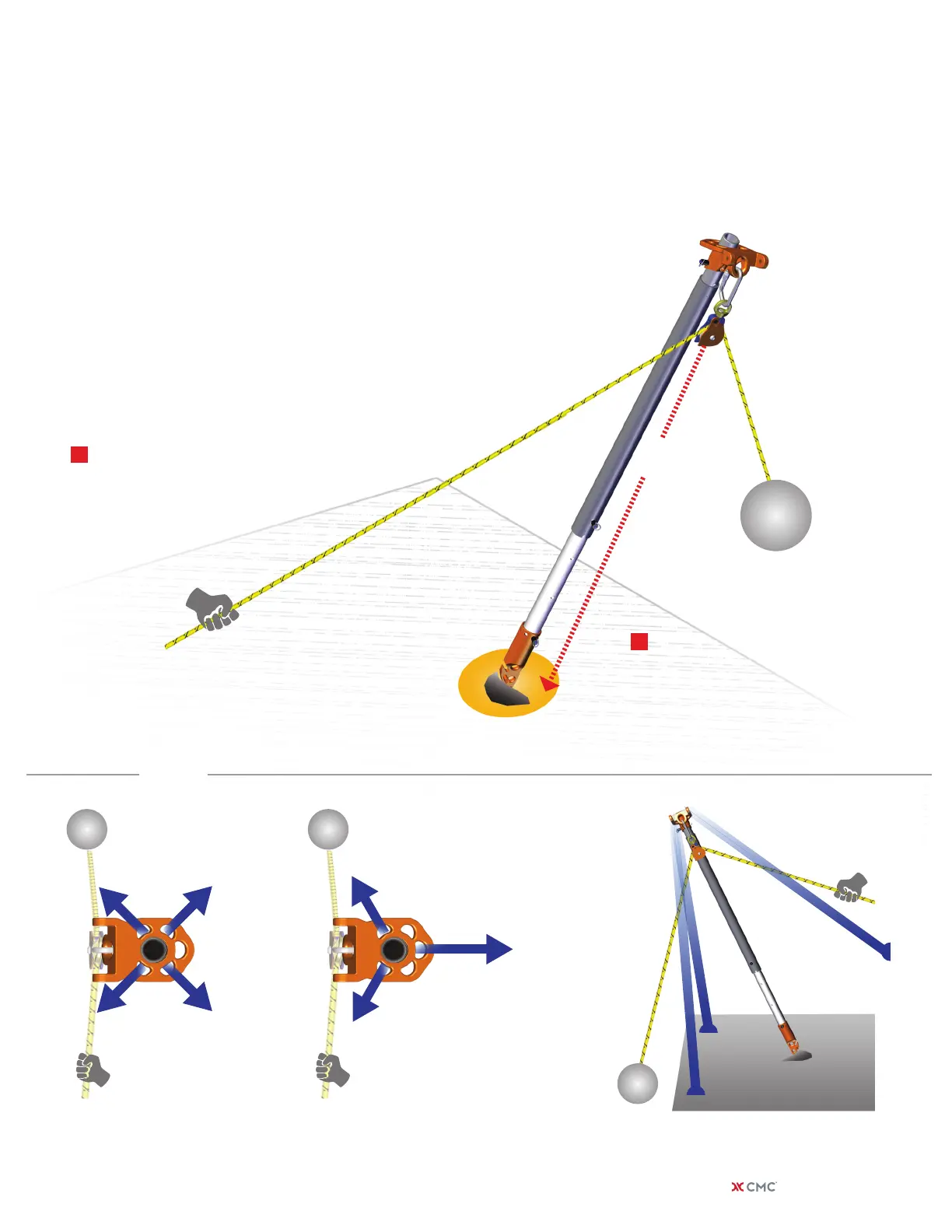

The Gin Pole conguration shown is a Directional Frame as
the rope supporting the load is directed through a pulley
on the head and is not anchored to the frame. The example
shown would require a combination of hobbles, Raptor feet
inserted into a crevice and guys to provide security and
stability.
A Gin Pole conguration requires a minimum of three (3)
guys, ideally separated by 120°. This may prove to be di-
cult to achieve in some environments as suitable anchors
may not be available. Additional guys may be necessary in
these situations.
CONFIGURATIONS
GIN POLE MONOPOD
Directional Frame
MODE OF USE:
CONFIGURATION:
Gin Pole
A
| cmcpro.com 29
