CMC ARIZONA VORTEX KIT - CONFIGURATION: EASEL-LEG TRIPOD (with Leg-Mounted Winch)

LOAD
SIDE VIEWTOP VIEW
VIEWS
HOBBLE STRAP
APPLIED
FORCE
Anchor Frame
MODE OF USE:
CONFIGURATION:
Easel-Leg Tripod (with
leg-mounted winch)
A
B
Keep the Applied Force
within the footprint of
Easel-Leg Frame.
CONFIGURATIONS
EASEL-LEG TRIPOD
(with Leg-Mounted Winch)

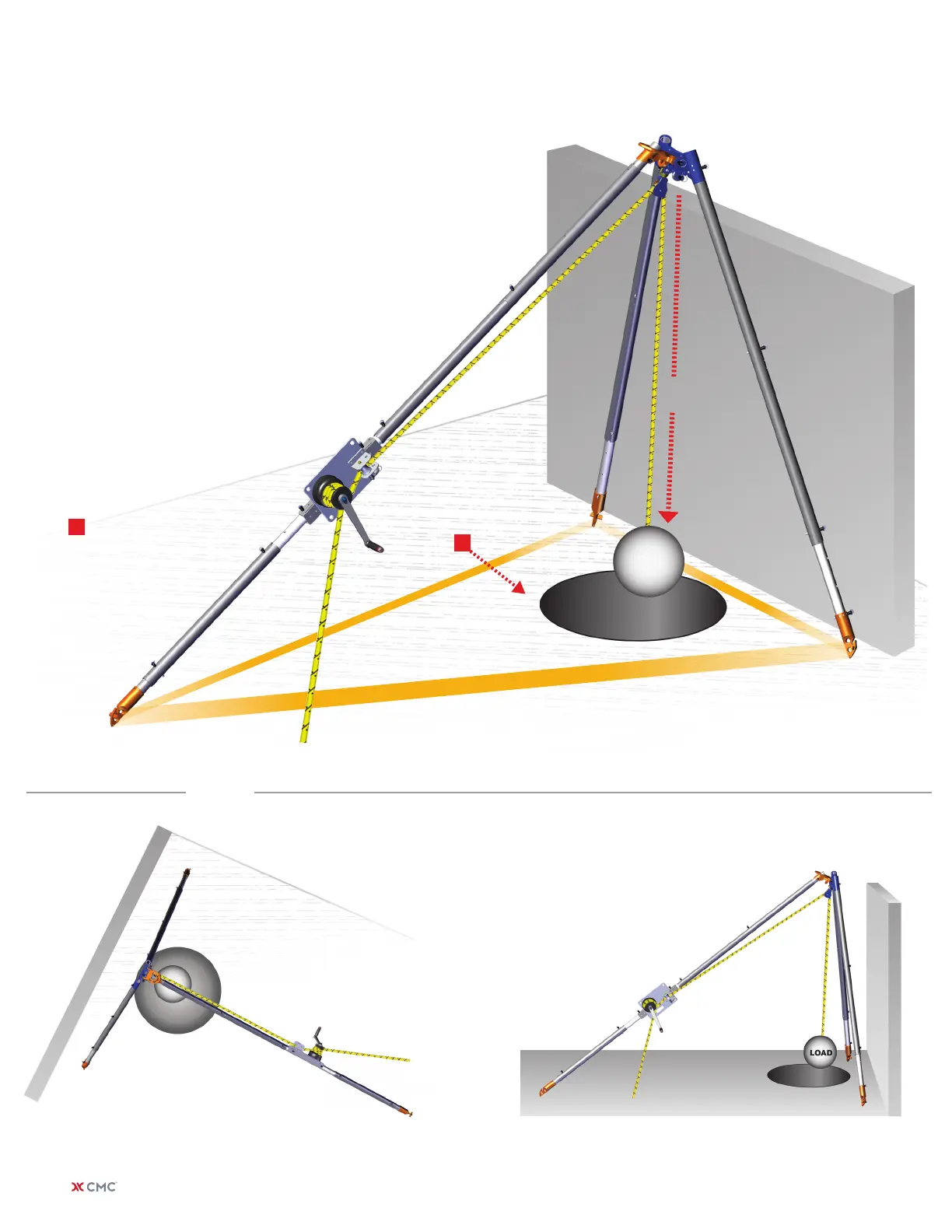

The Easel-Leg Tripod shown is an Anchor Frame as the rope that
supports the load is anchored to the frame via a leg-mounted
winch. The use of hobbles alone is normally considered accept-
able to secure the feet in this conguration. However, the
action of cranking the winch may cause unwanted move-
ment of the Easel-Leg.
As with the Equal-Leg Tripod, the hobbles form a
triangle between the feet. Ideally the load should
be suspended in the center of the triangle. As the
load is moved toward the outside of the trian-
gle, the Tripod will tend to topple.
Care must be taken to ensure the
load is kept well within the
triangle.
| ARIZONA VORTEX KIT USER MANUAL24
