CMC ARIZONA VORTEX KIT - CONFIGURATION: A-FRAME BIPOD

LOAD
LOAD
LOAD
HOBBLE STRAP
HOBBLE STRAP
SIDE VIEWTOP VIEW
VIEWS
GUYLINE
GUYLINE
GUYLINE
GUYLINE
GUYLINE
GUYLINE
GUYLINE
APPLIED
FORCE
Directional Frame
MODE OF USE:
CONFIGURATION:
A-Frame
A
Keep the Applied
Force centered within
the footprint/Frame
Plane of the Bipod.
B
CONFIGURATIONS

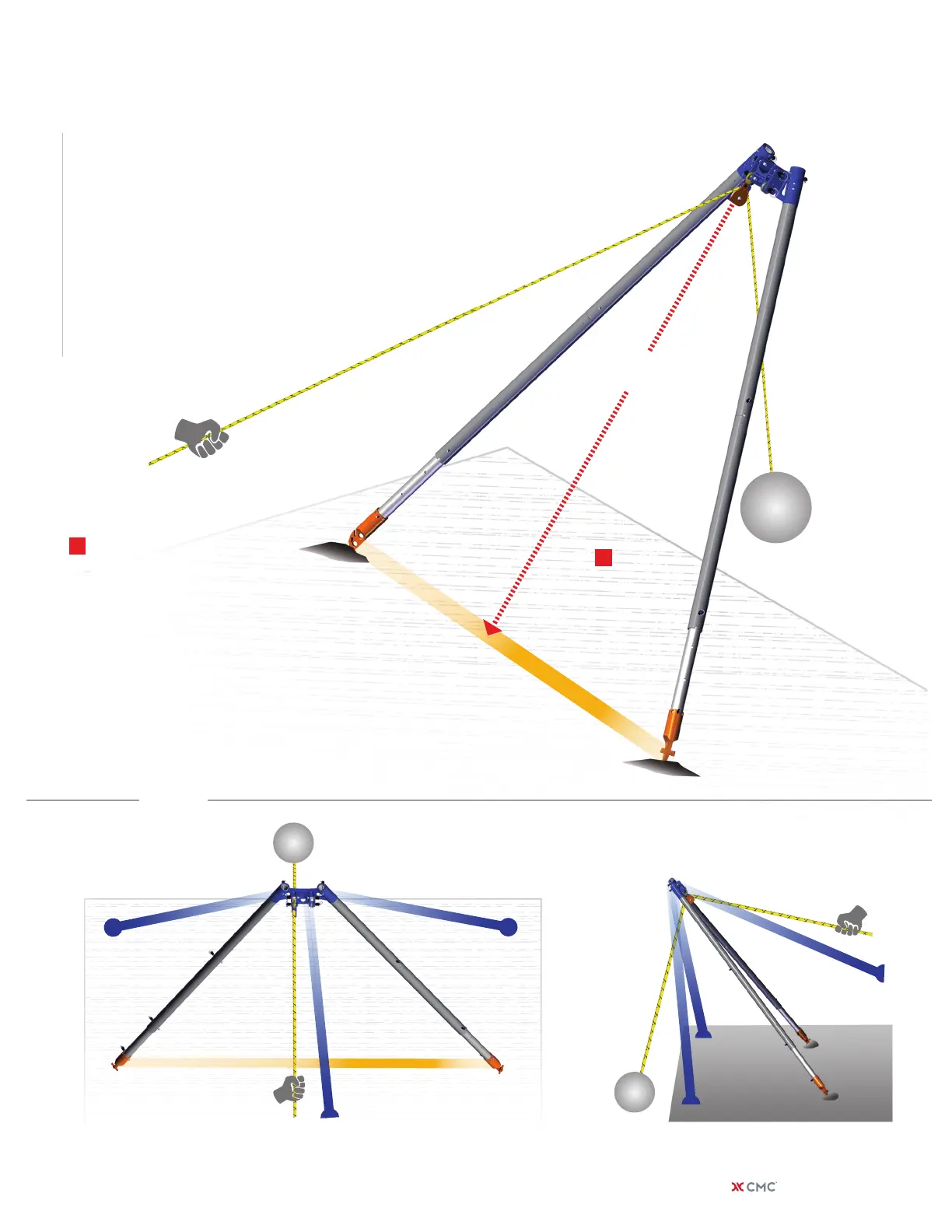

A-FRAME BIPOD
An A-Frame conguration requires guylines con-
nected to anchors both to the front (near or over
the edge) and to the back of the frame. Additional
guylines may be needed to prevent the A-Frame
from moving sideways if the load were to shift
laterally.
The A-Frame conguration shown is a Directional Frame
as the rope supporting the load is directed through a
pulley on the head and is not anchored to the frame.
The example shown would require a combination of
hobbles and Raptor Feet inserted into crevices and
guys to provide security and stability.
| cmcpro.com 27
