SIDE VIEWTOP VIEW
VIEWS
APPLIED
FORCE
Directional Frame
MODE OF USE:
CONFIGURATION:
Easel-Leg Tripod
A

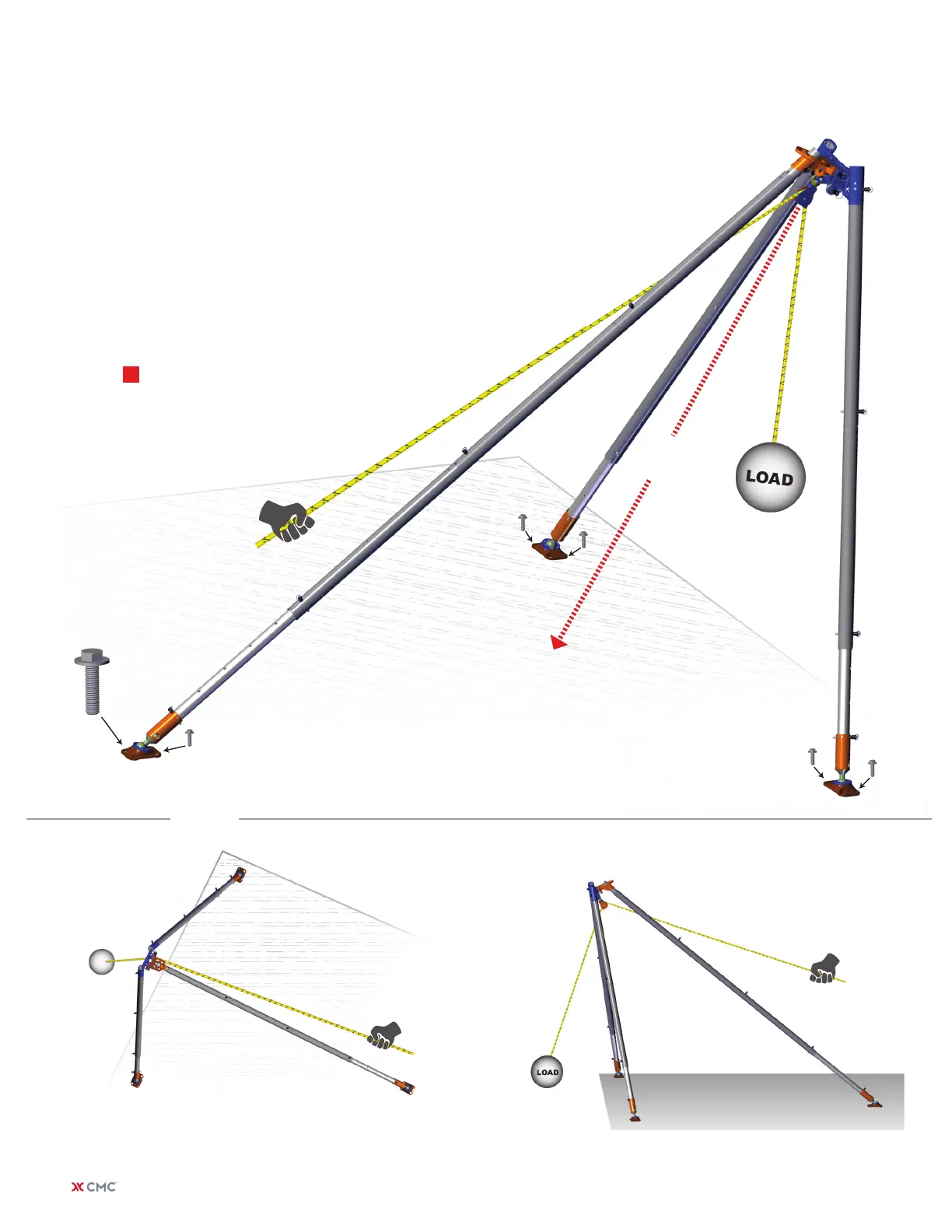

The Easel-Leg Tripod shown is a Directional Frame as the rope
supporting the load is directed through a pulley on the head and
is not anchored to the frame.
The use of hobbles alone is not enough to secure the frame in
this conguration as the frame will tend to move back when the
load is applied. This example shows all feet bolted to the oor.
Avoid cantilevering the head over the edge if possible. If the
head is cantilevered, for example when lifting an untendered
load, secure the head with one or more guy lines.
CONFIGURATIONS
EASEL-LEG TRIPOD
(with Directional Pulley)
| ARIZONA VORTEX KIT USER MANUAL26
