CMC ARIZONA VORTEX KIT - CONFIGURATION: EASEL-LEG TRIPOD (with Leg-Mounted Winch) - SECURING

LOAD
SIDE VIEWTOP VIEW
VIEWS
HOBBLE STRAP
APPLIED
FORCE
GUYLINE
GUYLINE
Anchor Frame
MODE OF USE:
CONFIGURATION:
Easel-Leg Tripod (with
leg-mounted winch)
A
The Applied Force is outside of the
Tripod’s footprint. An opposing
guyline(s) must be used.
B
CONFIGURATIONS
EASEL-LEG TRIPOD
(with Leg-Mounted Winch)

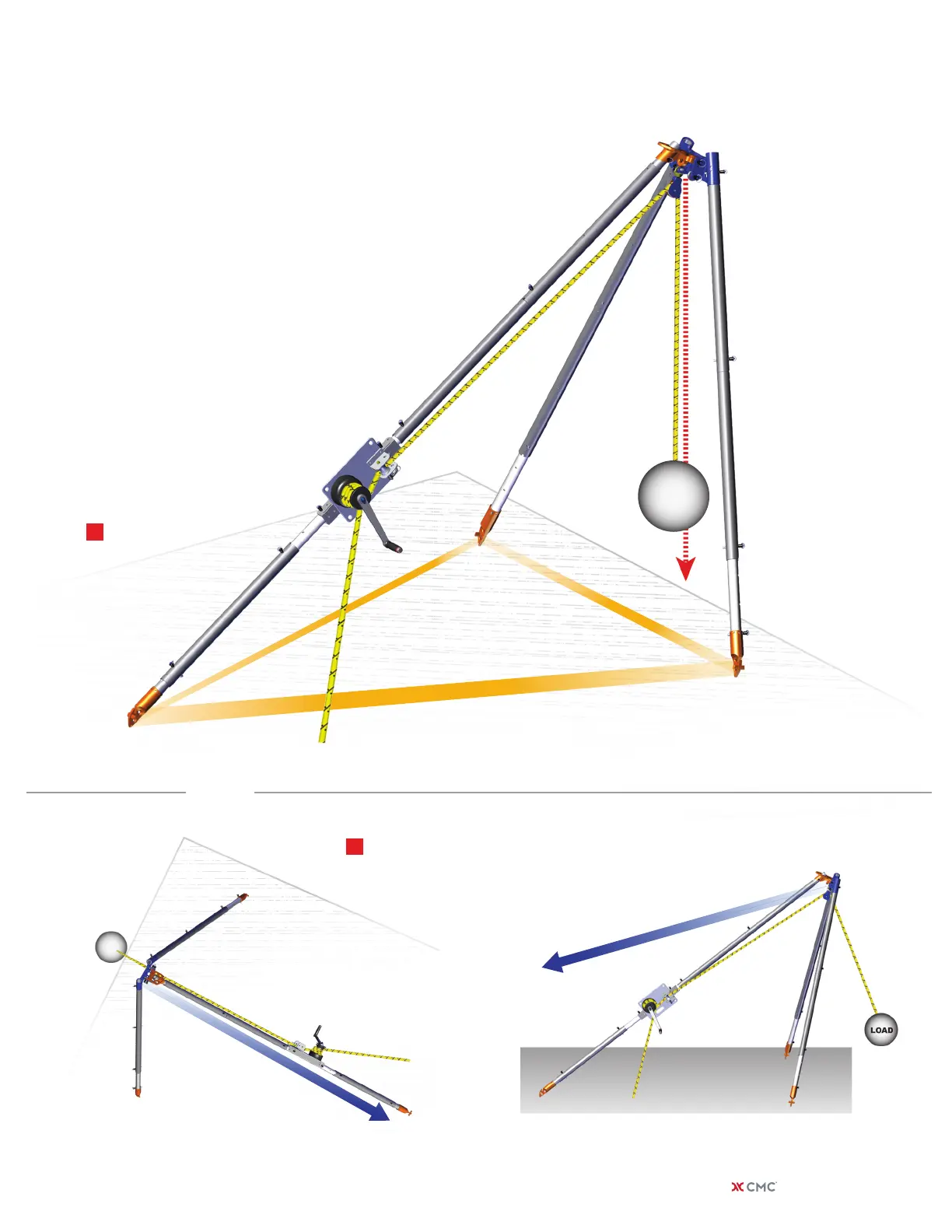

The Easel-Leg Tripod shown is an Anchor Frame as the rope that
supports the load is anchored to the frame via a leg-mounted
winch. The use of hobbles alone is not adequate to secure this
conguration.
The tendency of movement of this frame is forward (over
the edge), therefore the addition of a back guyline (or
other appropriate measures) is required to secure the
frame.
