Sonar 6
z Connect the VX to the computer and turn on the power.
z Press the U-CTRL button on VX once to set U-CTRL to U-CTRL A.
z Open Sonar 6.

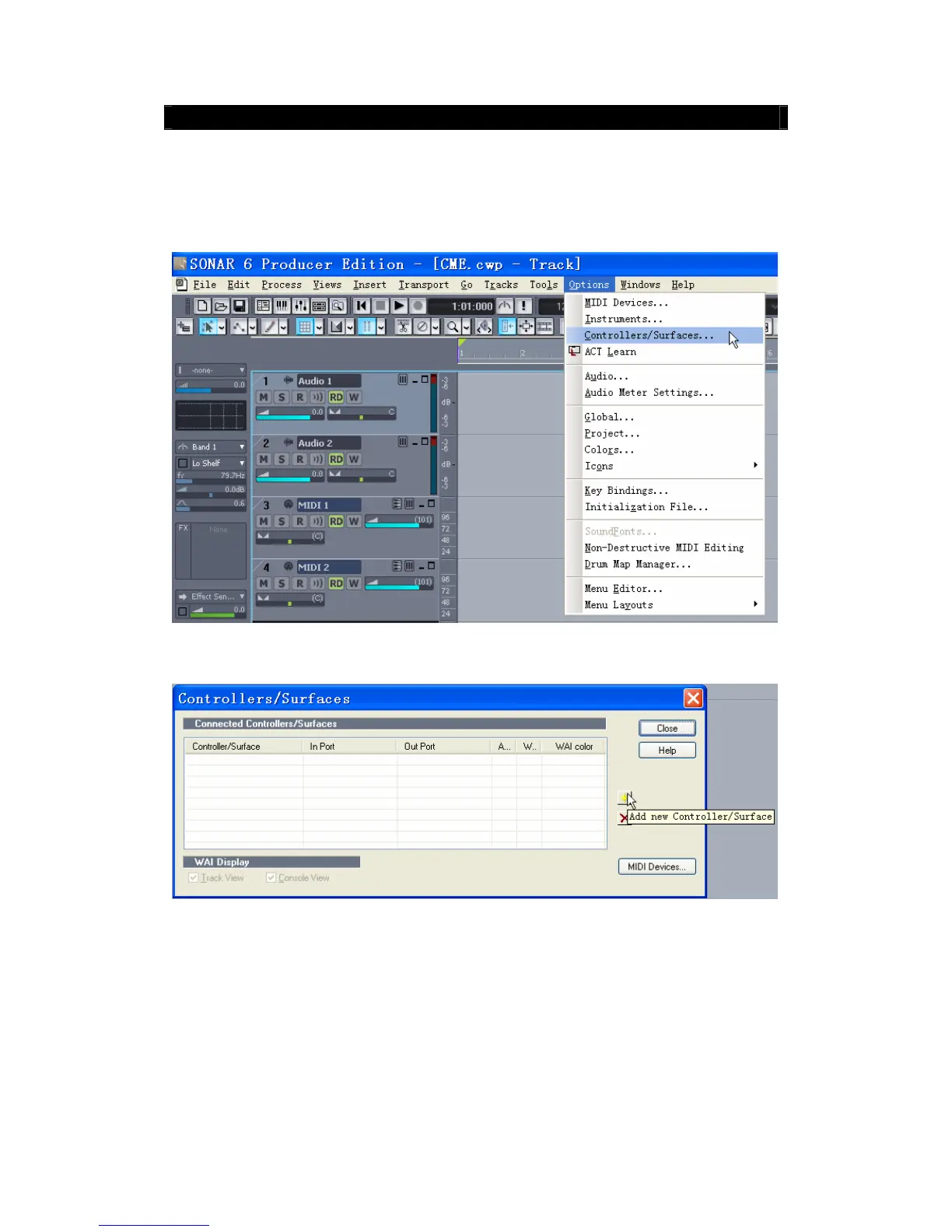

z Under the【Options】menu, click on【Controllers/Surfaces…】.
z On the【Controllers/Surfaces…】window, click on【Add new Controller/Surface】.
z On the【Controller/Surface Setup】window,
 For【Controller/Surface】, select “Mackie Control”
 For【Input Port】, select “USB Audio Device [2]”
 For【Output Port】, select “USB Audio Device [2]”
z Click on【OK】, close【Controller/Surface Setup】window.
