9. TIMER2
9.1 TIMER2 General
TIMER2 mod is an 8-bit timer/counter with the following characteristics:
◆ 8-bit timer register (TMR2);
◆ 8-bit period register (PR2);
◆ Interrupt when TMR2 matches PR2;
◆ Software programmable prescaler ratio (1:1, 1:4 and 1:16);
◆ Software programmable postscaler ratio (1:1 to 1:16).
Prescaler
1:1,1:4,1:16
T2CKPS<1:0>
2
TOUTPS<3:0>
4
Fsys/4
TMR2
Comparators
PR2
Post divider
1:1至1:16
Reset
equal
TMR2
Output
Set the
TMR2IF
flag bit to 1
0
1
XT 32.768KHz/4
CLK_SEL

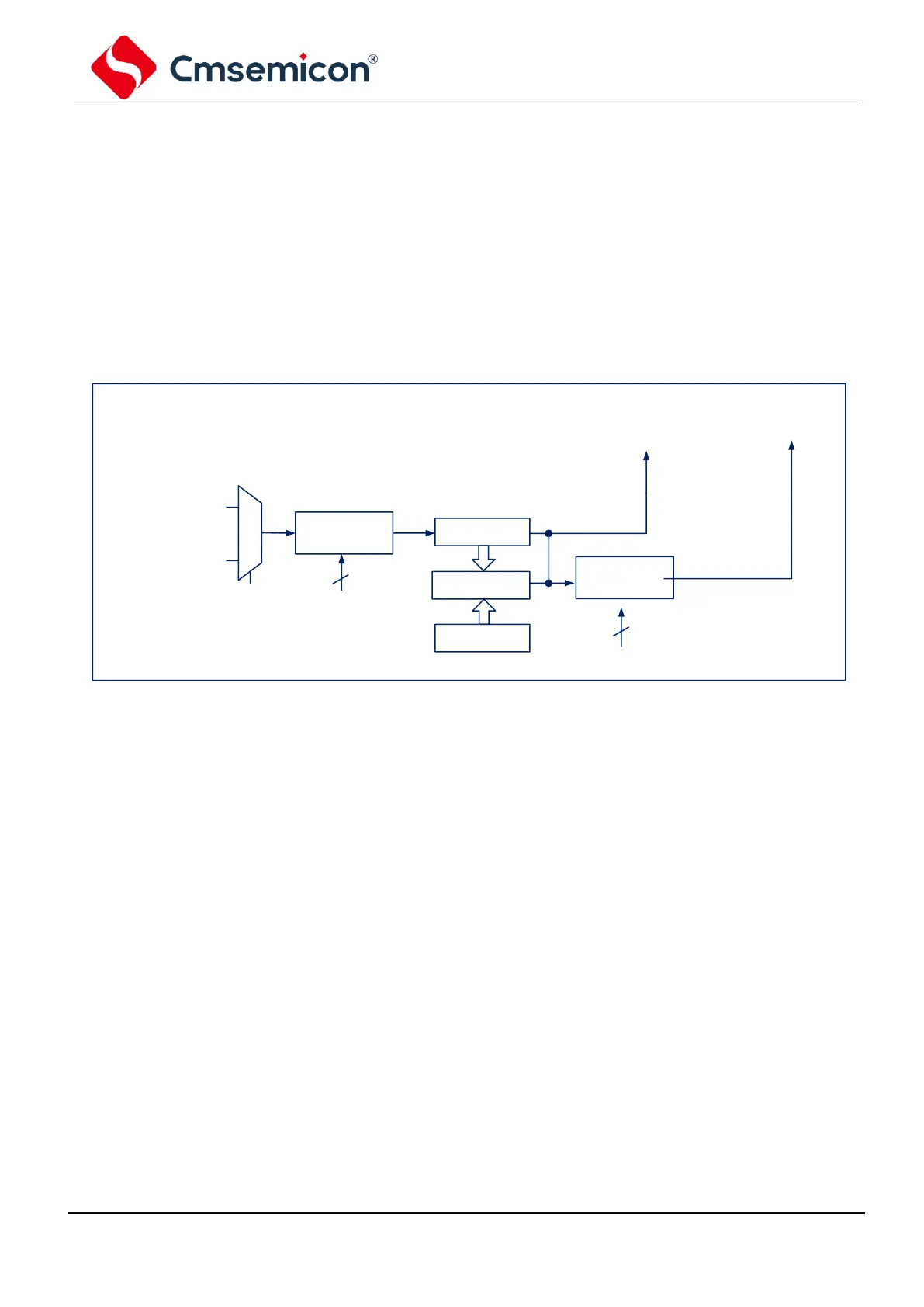

Fig 9-1: TIMER2 structure
