CNC 3018-PRO User Manual

12
3
、

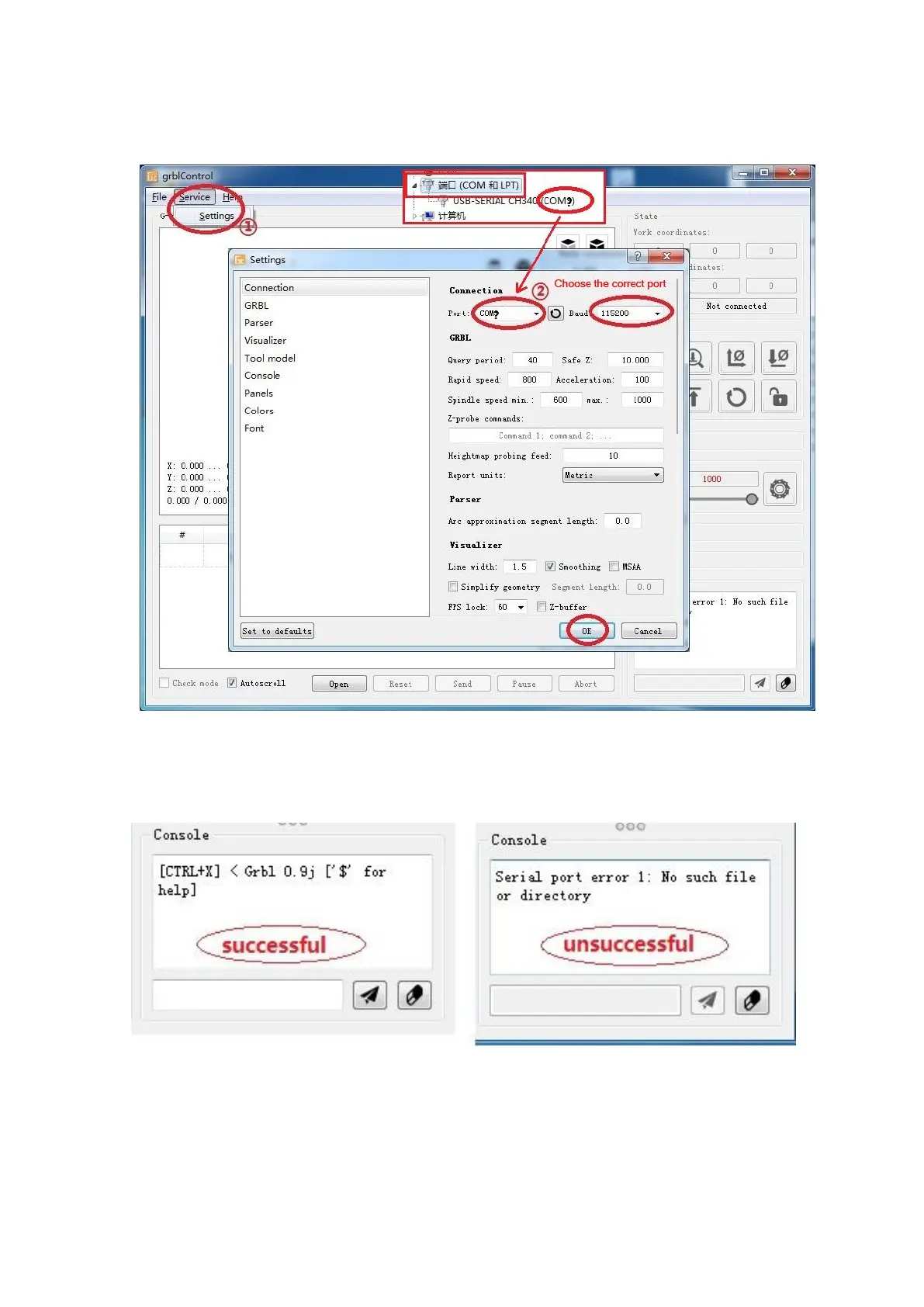

Open GrblControl software(software -> Grblcontrol -> grblControl.exe)
Tips: Right-click "Send to", select "Desktop Shortcut", and then you can open it directly on the desktop.
●
Console window print ” [CTRL+X] < Grbl 1.1f ['$' for help]” If the connection is successful.
●
Console window print ” Serial port error 1: No such file or directory “ indicate that the connection is
failed.

CNC 3018-PRO Specifications

General

Model	CNC 3018-PRO
Working Area	300 x 180 x 45 mm
Frame Material	Aluminum
Control Software	GRBL
Power Supply	24V 5.6A
Interface	USB
Machine Size	400 x 330 x 240 mm
Spindle Motor	775 spindle motor (12-36V) 24V:10000rpm
Supported OS	Windows XP/7/8/10, Linux
Supported File Formats	G-code, nc, ncc, tap
Stepper Motor	1.3A, 12V, 0.25Nm
