CNC 3018-PRO User Manual

1

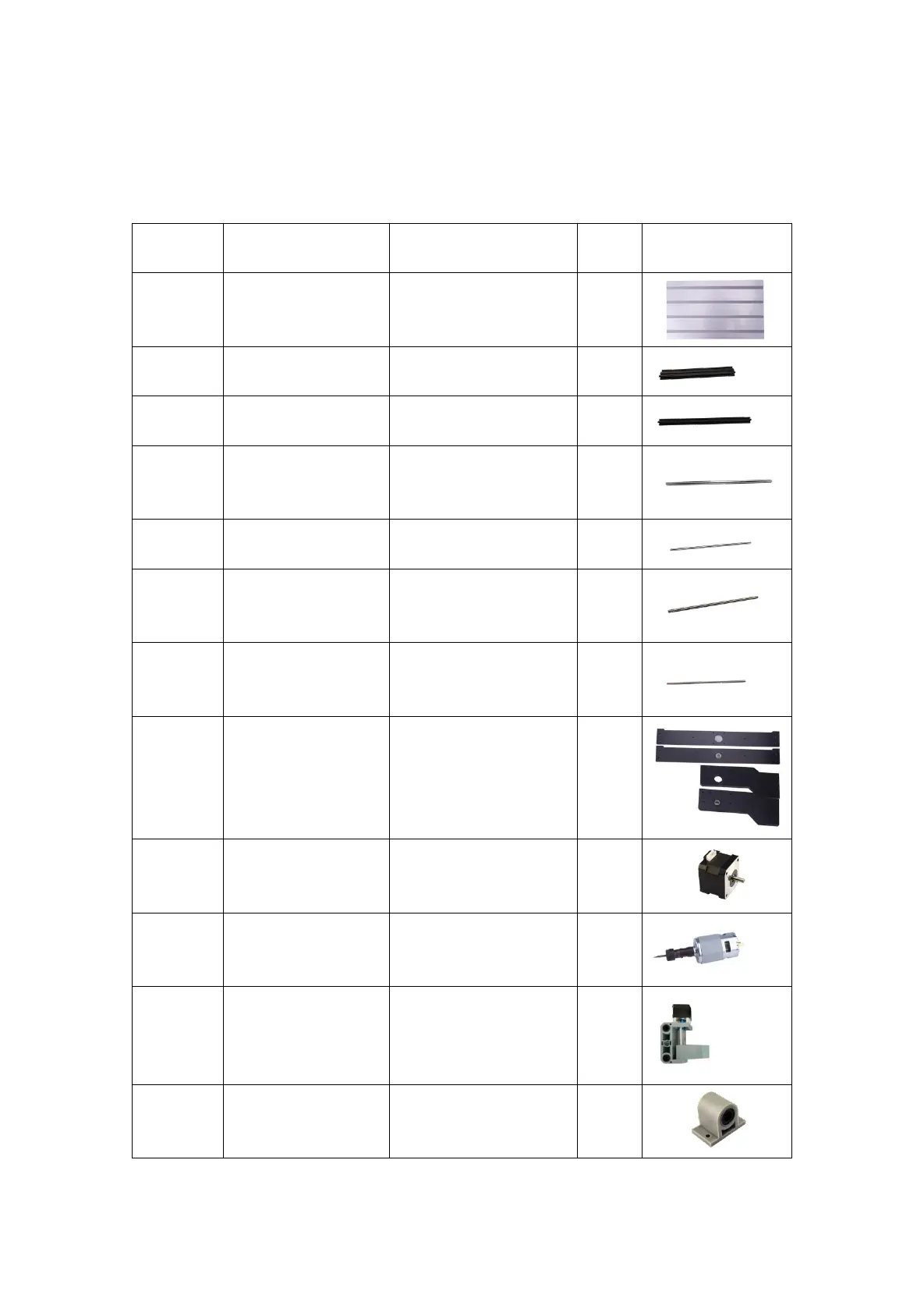

Parts list
Serial
number
Name
Type
Qty
1
working desk
15*180*300mm
1
2
Aluminum
20*40*290mm
2
3
Aluminum
20*20*290mm
2
4
X Linear guide
Φ10*360mm
2
5
Y Linear guide
Φ10*290mm
2
6
X screw
T8(365mm)
2
7
Y screw
T8(295mm)
2
8
Bakelite
1
9
Stepper motor
42*34mm
2
10
Spindle
775ER\100w\8000rmp
1
11
X Z-Parts
1
12
Y-Axis slider
10mm
4

CNC 3018-PRO Specifications

General

Model	CNC 3018-PRO
Working Area	300 x 180 x 45 mm
Frame Material	Aluminum
Control Software	GRBL
Power Supply	24V 5.6A
Interface	USB
Machine Size	400 x 330 x 240 mm
Spindle Motor	775 spindle motor (12-36V) 24V:10000rpm
Supported OS	Windows XP/7/8/10, Linux
Supported File Formats	G-code, nc, ncc, tap
Stepper Motor	1.3A, 12V, 0.25Nm
