4. Unpacking and delivery checks
Carefully remove theplane and all loose parts from thepackage.

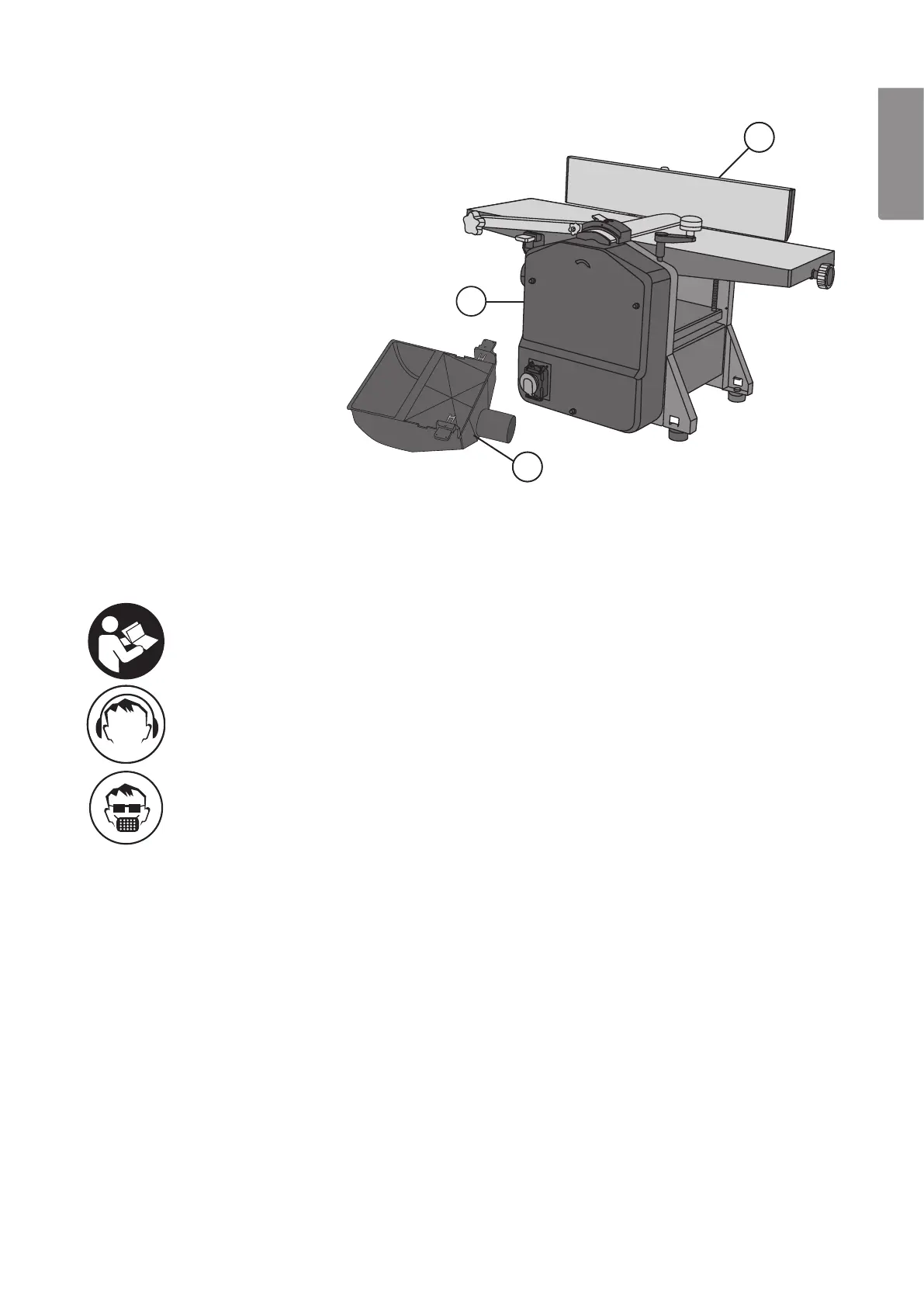

4.1 The package contains
1. Surface plane
2. Anglestop
3. Extraction hood
• Crank
• Screws (M5×15)
• Locking washer 5mm
• Plane washer 5mm
• Allen key (4 mm)
5. Product marking with safety symbols on the machine
Read all instructions foruse.
Always use hearing protection.
Always use goggles or visors and arespirator.
5.1 Product marking with warning text on the machine
Warning! Rotating cutter, keep hands out of theway.
• Read all instructions and try to understand themachine’s operations.
• Do not use themachine if thecovers are not mounted, correctly adjusted and without fault.
• Never perform larger cuts than 2mm.
• Never plane material shorter than 250mm
• Do not expose themachine to damp orrain.
• Only plain one object at atime to avoid objects jutting backwards.
