Caravan equipment
144www.coachman.co.uk
Owners handbook 2022
Coachman Caravan Company Limited, Amsterdam Road, Sutton Fields Industrial Estate, Hull, HU7 0XF
Entertainment systems
Your caravan is fitted with a radio/
USB + aux in.
For instructions on how to set up and
use this equipment, you should refer to
the manufacturer’s handbook you have
received with your information pack. For
service, warranty support and technical
queries you should refer to the rear of this
handbook.

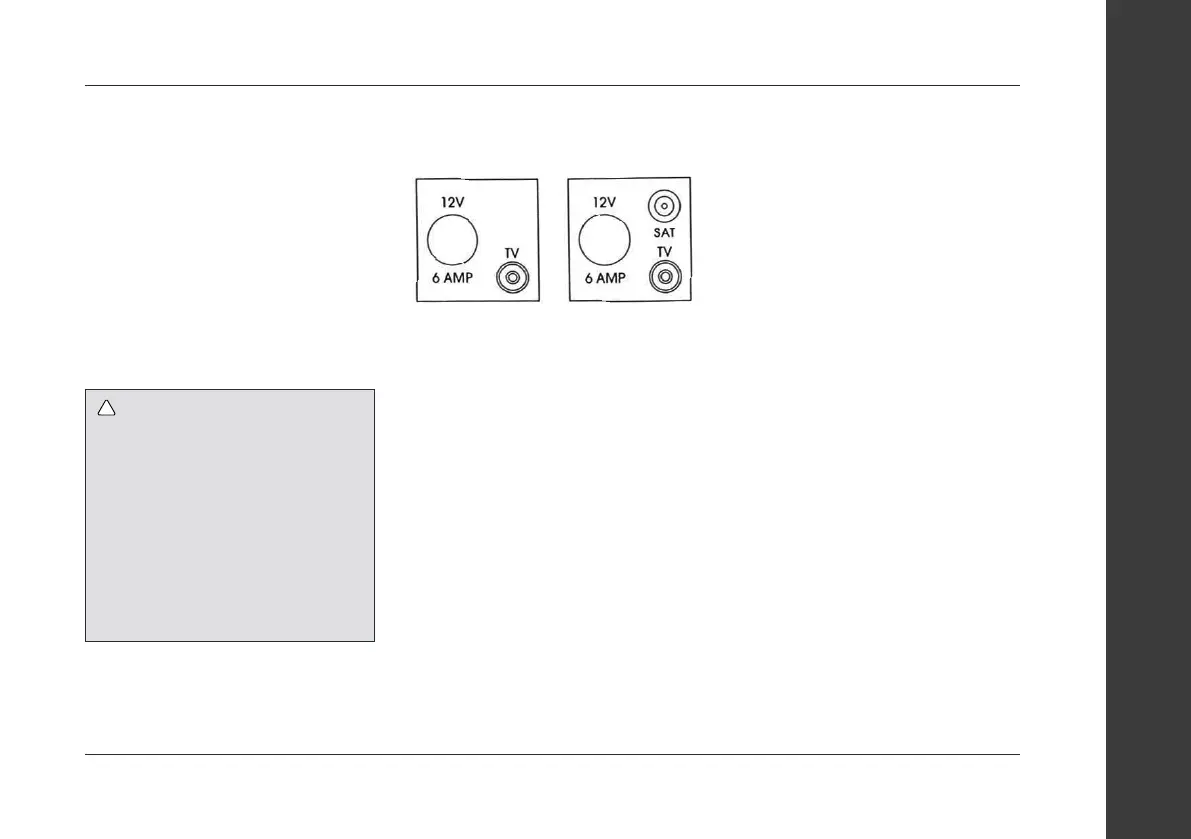

AV/TV CONNECTIONS
For TV 12 volt supply + aerial connection.
Vision Plus Status 570 Digital
Antenna System
Your caravan is fitted with a high gain,
directional aerial. It receives FM, AM, MW
and WN, digital and analogue signal.
No adjustments is required but it must
have power connected. If you encounter
an electrical ‘spike’ and your antenna
stops working turn o your caravan master
switch, leave for 1 minute then turn it
back on.
Technical:
Antenna Dome
Length 413mm
Width 348mm
Height 72mm
Mounting Foot
Diameter 122mm
Height 35mm
Amplifier 114 x 45 x 29mm
Frequency Range UHF 470-790 Mhz
FM 88 – 108 Mhz
DAB 175 – 230 Mhz
Antenna Forward Gain 7db
Amplifier Gain 16db
Gain Adjustment 15db
Noise Figure 2.8 db
Output Impedence 75 ohms
Output 95 dbuV
Power Supply 12-24 vDC
Power Consumption 55 ma
Signal Outputs 2 TV 1 Radio
Operating the system
Travelling
When positioning the antenna dome
please allow for the following:
DO NOT TRAVEL:-
• With the antenna raised.
Warning
Radio Fascia plates should be
removed and stored safely, if the vehicle
is to be stored for any period of time.
The fascia panel will cause a drain on
the leisure battery.
Your vehicles radio will need re-
tuning when you set up on a dierent
site. See additional notes on Aerial
fault finding.
