Generators
When using a generator ensure that the
actual output voltage does not exceed
the rated generator output voltage, and
the rated input voltage of the consumer
unit, otherwise internal damage to the
unit could occur.
Before starting the generator ensure that
the RCD lever is in the o position.
NOTE: Refer to the manufacturer’s
instruction book before use.
NOTE: It is important as with all power
supplies that the generator is run up to
speed and allowed to settle before
switching it onto the system.

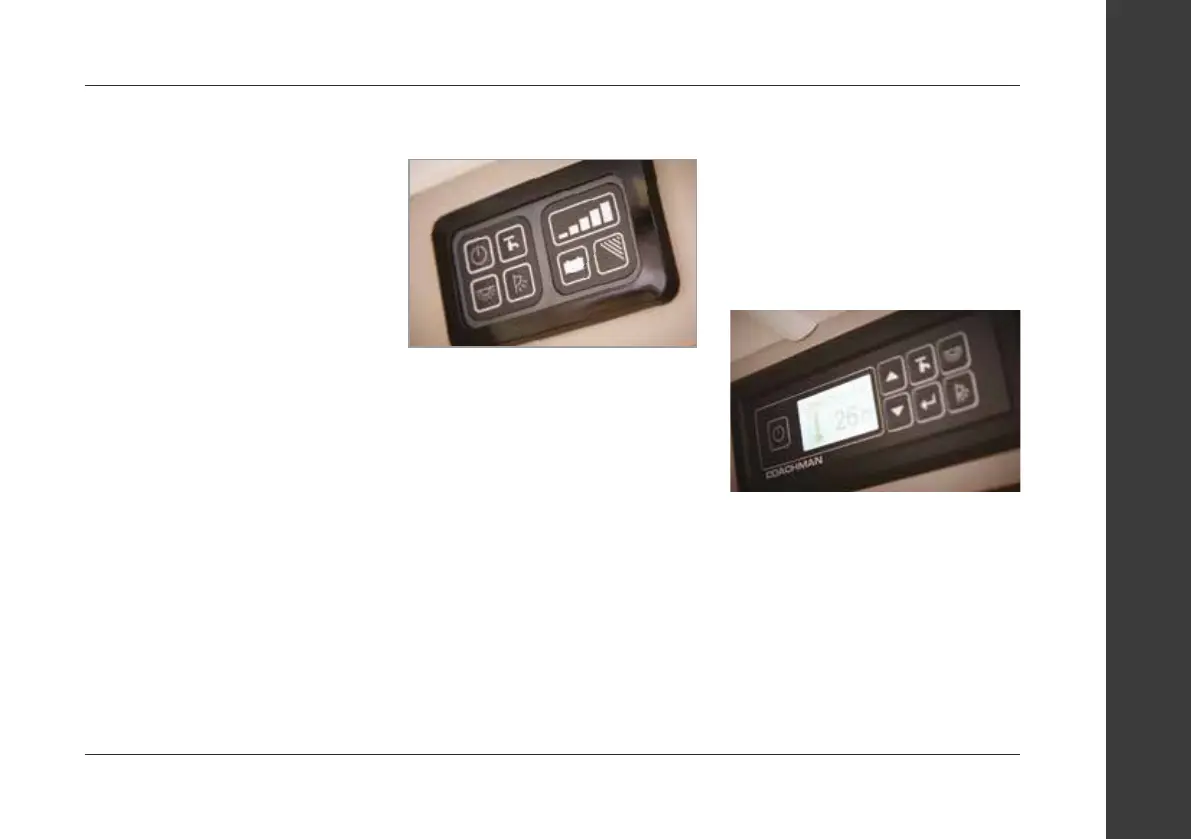

Control panel (where fitted)
• Master 12 volt ON/O Switch
• Pump ON/OFF Switch/Pump Run
Indication
• 12 volt Lighting Switch
• Awning Light Switch
• Voltmeter Switch
When the caravan is connected to
the car, the car supply is connected
automatically. For your convenience the
master 12 volt switch, switches all the 12
volt circuits from the caravan except for
the circuits requiring dedicated supplies
from the battery, such as fridge ignition
or alarm if fitted.
The pump switch, switches the supply
to the pump, but the pump light is
illuminated all the time.
Seattle Control Panel
(where fitted)
User Manual - not all functions
are available
Overview:
The Seattle control panel allows the
user a central point to check:
• Leisure battery voltage
• Leisure battery current
• Load current
