EDGE Installation Manual
www.cobantech.com Page 10 of 40

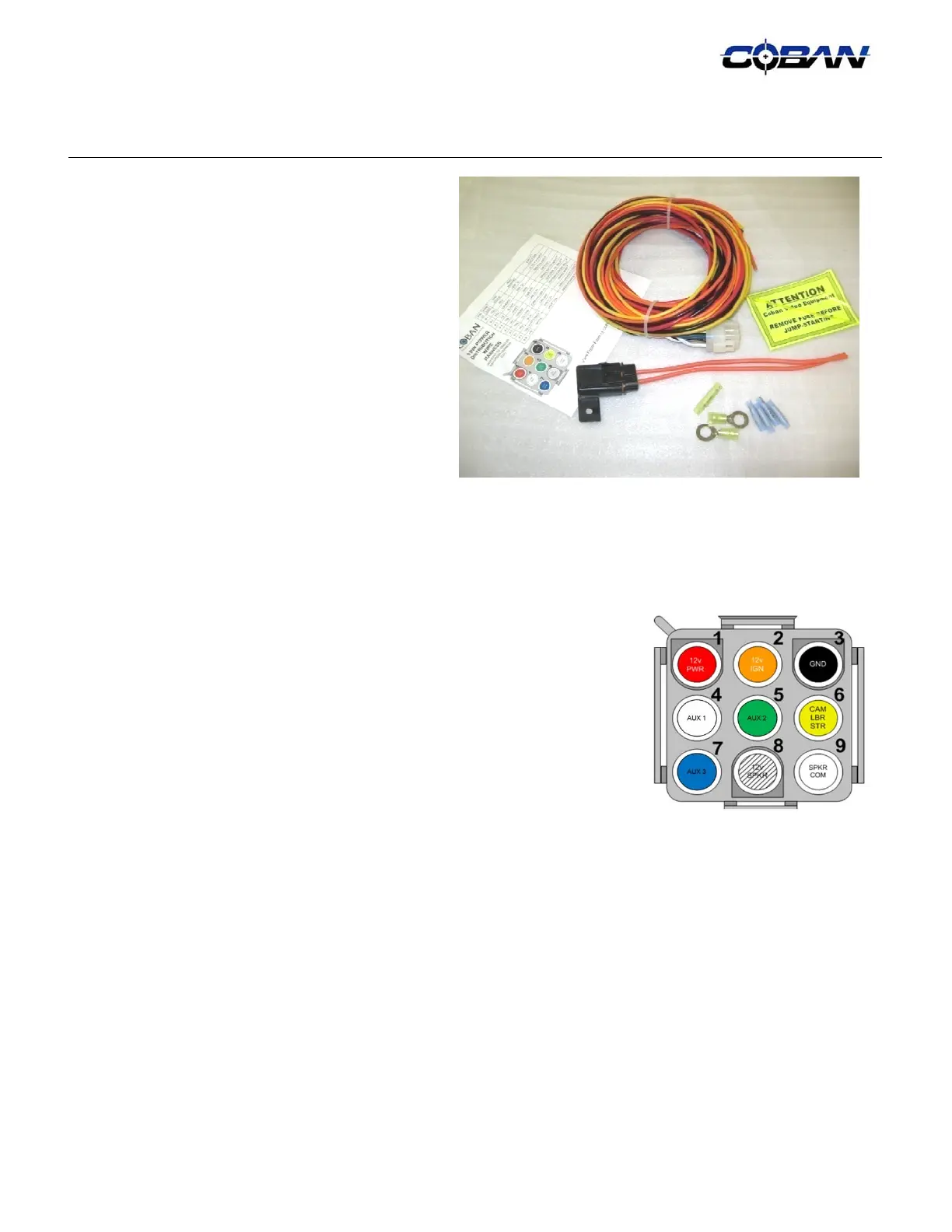

Electrical Hardware
Closed In-Line ATC Fuse Housing w/15a Fuse
Rated for up to 30a, with no less than 14g
connection wire
Used to Fuse:
12v Power at Battery
Heat Shrink Butt Connectors
(4) 16g-14g Blue
(1) 12g-10g Yellow
Used to Connect:
Inline Fuse
Power Distribution Wire Harness
Splice at Light Bar Control Head
Ring Terminals
(2) 5/16" - 16g-14g
Used to Connect:
12v Battery Power
Battery Ground
9 Pin Power Distribution Wire Harness
(adheres to “MNSTAR Enforcer Harness-C27”)
Note: The installation technician will need to match the above wire type and
color scheme when installing the system.
Pin ID Wire Size
(AWG)
Wire
Color
Wire
Marking
Circuit
Function
#1 14 Red PWR 12V 12V Power
#2 16 Orange IGN 12V Ignition Input
#3 14 Black GND Ground
#4 16 White CAM BRK Auxiliary #1*
#5 16 Green CAM GUN Auxiliary #2*
#6 16 Yellow CAM STR LBR 12V Light bar/Strobe Input*
#7 16 Blue CAM SPR Auxiliary #3
#8 16 White/Black SPKR 12V Sire Speaker Load*
#9 16 White SPKR COM Siren Speaker Common*
*Optional functions (to be determined by Department Fleet Manager
