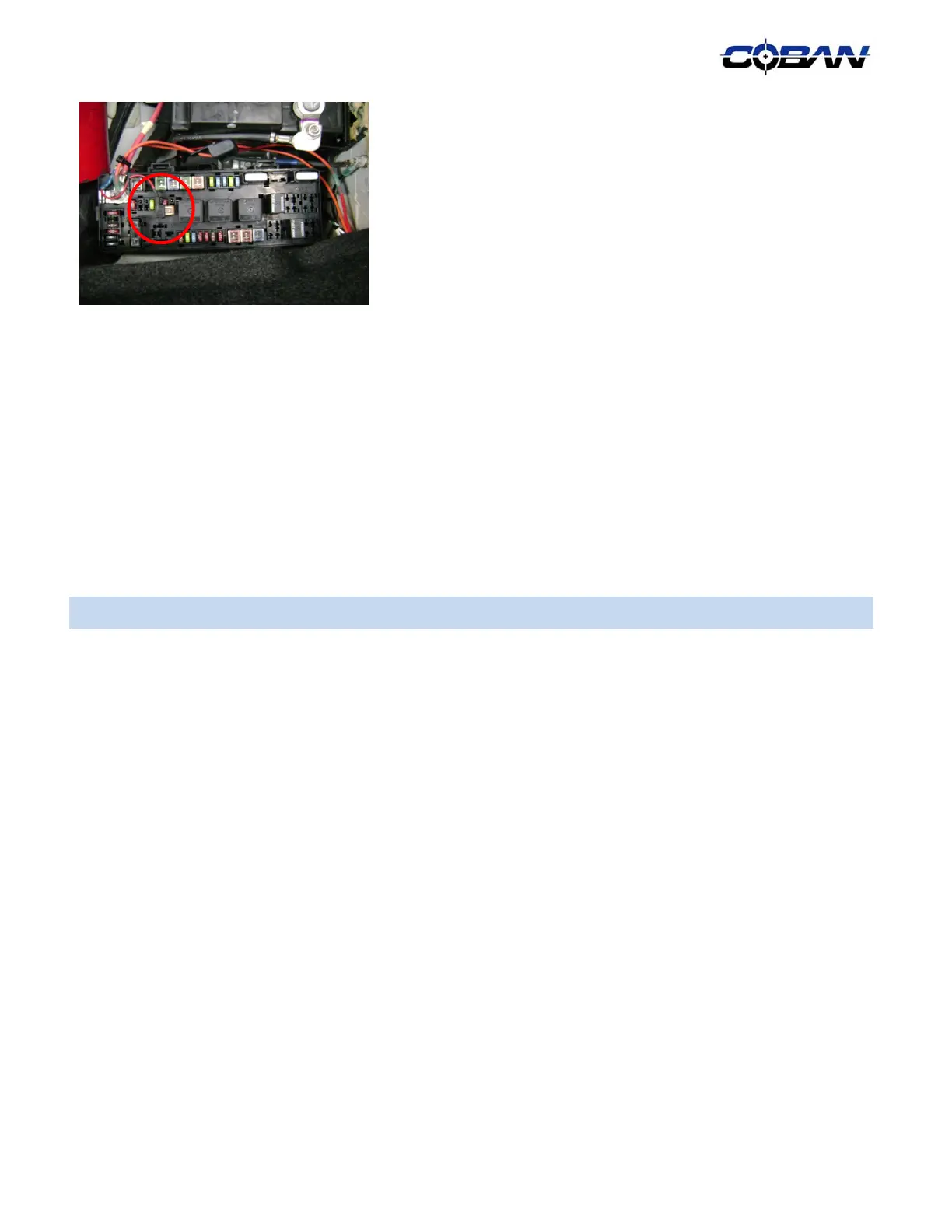

Charger ignition fuse box inside trunk
Tapping to Strobe Pack or Control Head for Light
Bar Signal
The Department will need to determine the desired trigger position of the Light-bar to activate the Camera System
prior to Installation.
Some strobe packs and power distribution packs may require a fuse tap, depending on the model of the light bar.
Locate the light bar power distribution pack or control head.
 Switch the light bar ON and OFF while testing for the signal with a voltage meter. Most light bar power
distribution packs have a label indicating the activation positions. [1, 2, 3, etc.]
 Ensure that the signal reads between 8 to 13 volts in ACTIVE position, and 0.0 volts in INACTIVE position.
Note: Use a butt connector to securely tap into the Signal Wire
