EDGE Installation Manual
www.cobantech.com Page 35 of 40

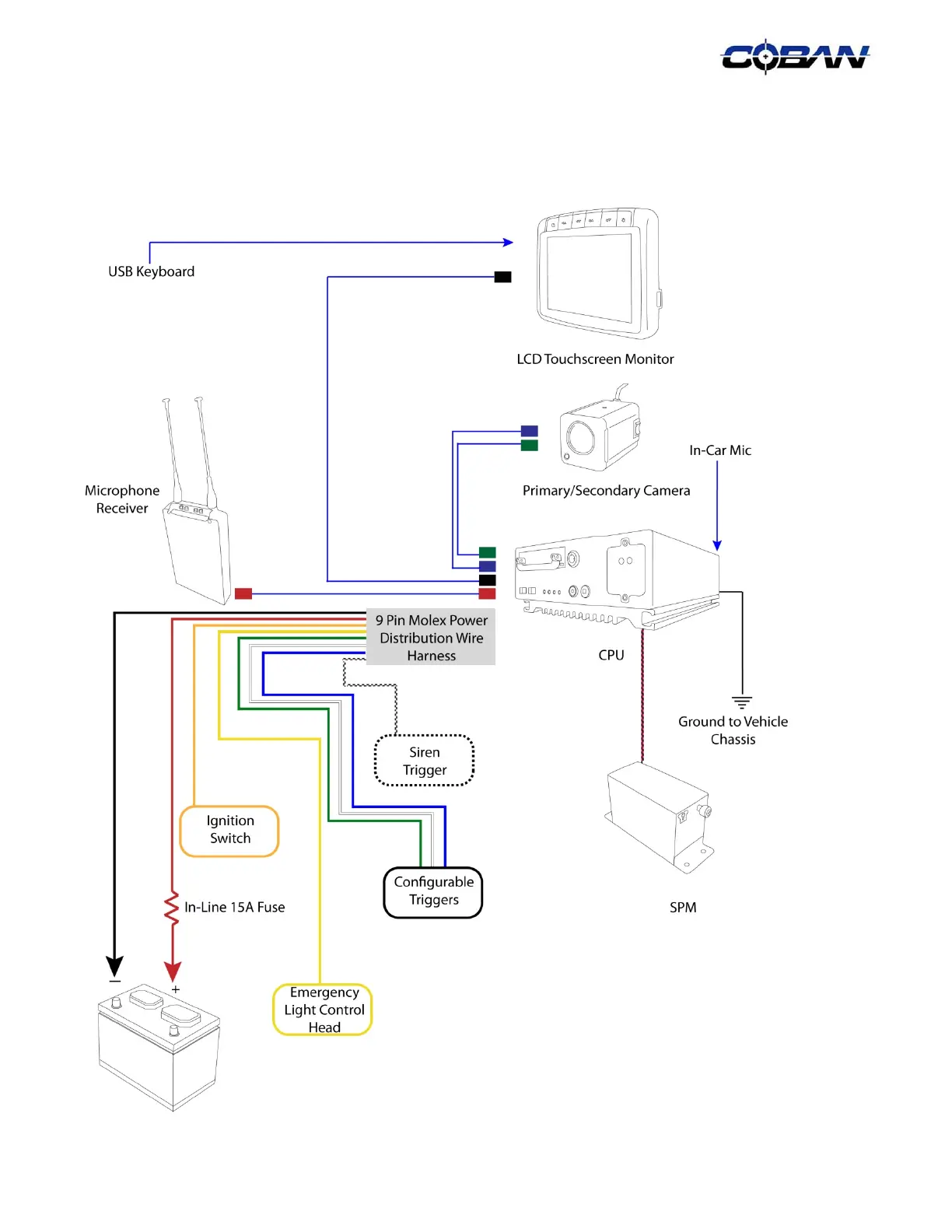

Wiring Diagram
Connect the COBAN cables and the 9-Pin Molex wires to the appropriate components and triggers as shown
below:
