Chapter 2: To install the system
98-169085-B To install the terminal 8
To mount the terminal fixed on the vehicle roof (recommended)
The terminal may be fixed on the roof of your vehicle using three M6 bolts (included) and
mounting spacers (already mounted). This solution requires that you drill three holes in the
roof of the vehicle.
To mount the terminal, do as follows:

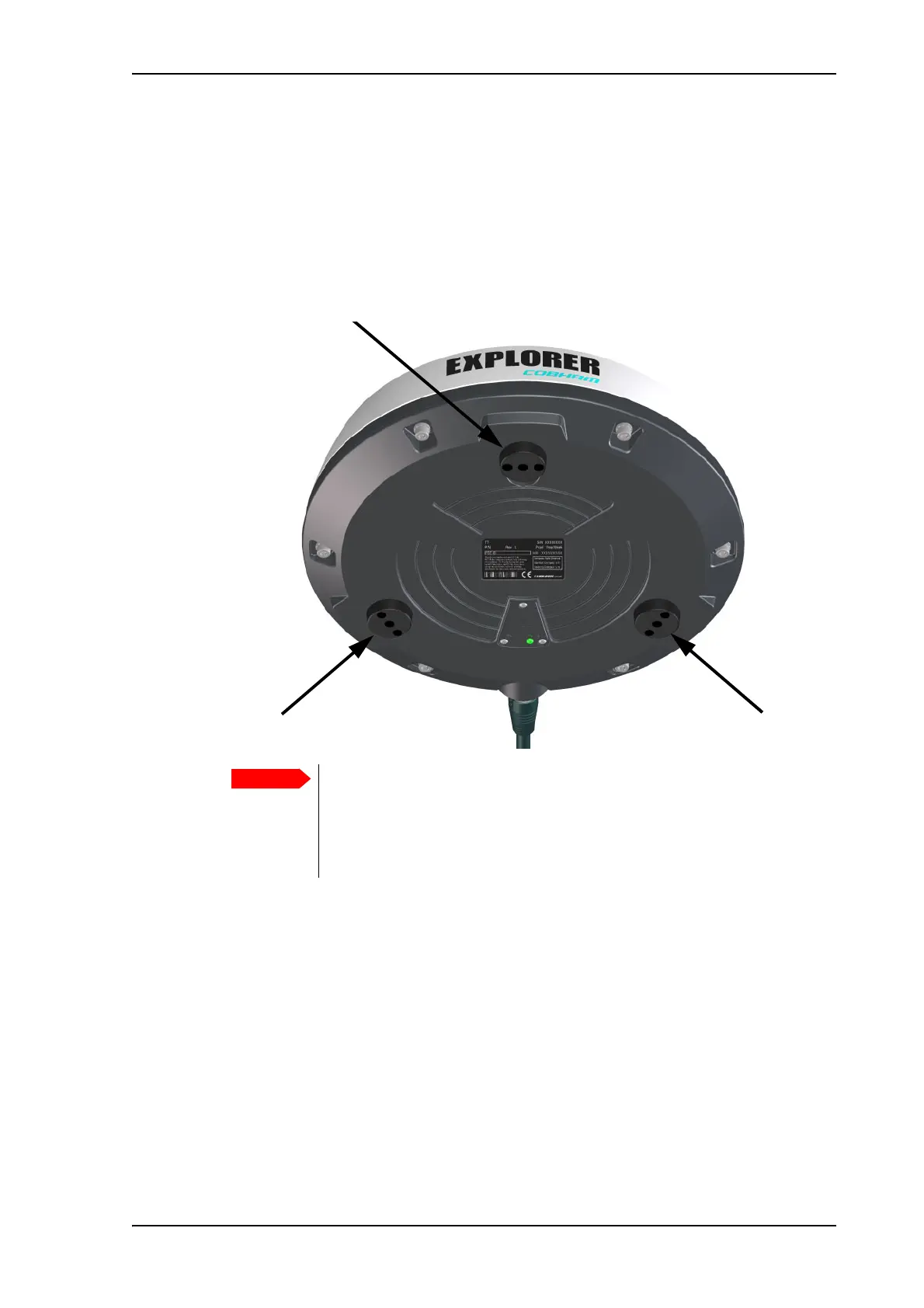

1. Use the already mounted plastic spacers or use similar mounting plates of 10 mm height.
See the drawing below.
2. Based on the dimensions of the mounting plates, calculate and mark up the position of the
holes to be drilled in the roof of the vehicle. The drawing below shows the Drill Circle
Diameter for the bushings in the terminal. The bushings are 120° apart.
Do not mount the terminal without the spacers! If you mount the E323
directly on a roof without the spacers, this will have a significant negative
impact on antenna performance.
Also, free airflow under the terminal is necessary for the ventilation hole in
the bottom of the terminal not to be blocked and to prevent over-heating.
