Chapter 4: Configuration with web interface
98-148232-B Advanced settings 72
5. Select Enable GPI pin wake up if you want to use the dedicated I/O pin on the
EXPLORER 540 to wake up the terminal from power save mode. See the next section I/O
pins (Settings) on page 72.
6. Click Save.
I/O pins (Settings)
The EXPLORER 540 has 3 I/O pins, two assigned pins and 1 general purpose pin.
• Request wake up (input)
• Terminal ready (output)
• Control/Status input/output

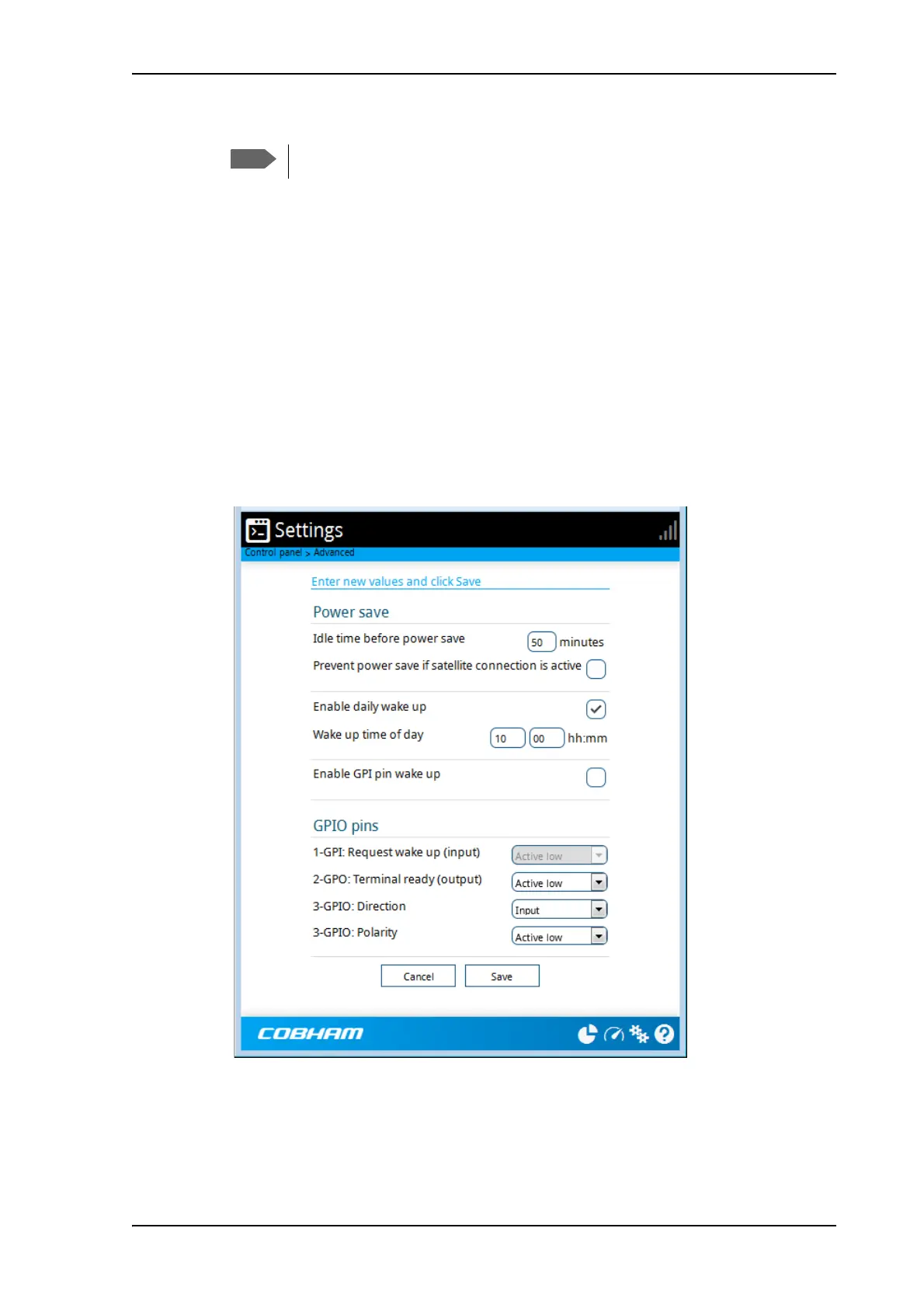

1. Under Advanced, select Settings.
2. If you have enabled GPI pin wake up, select whether the Request wake up input should be
active high or low.
3. Select whether the Terminal ready output should be active high or low. This output
signals when the EXPLORER 540 is ready to communicate with connected equipment.
Local time must be converted to UTC time!
