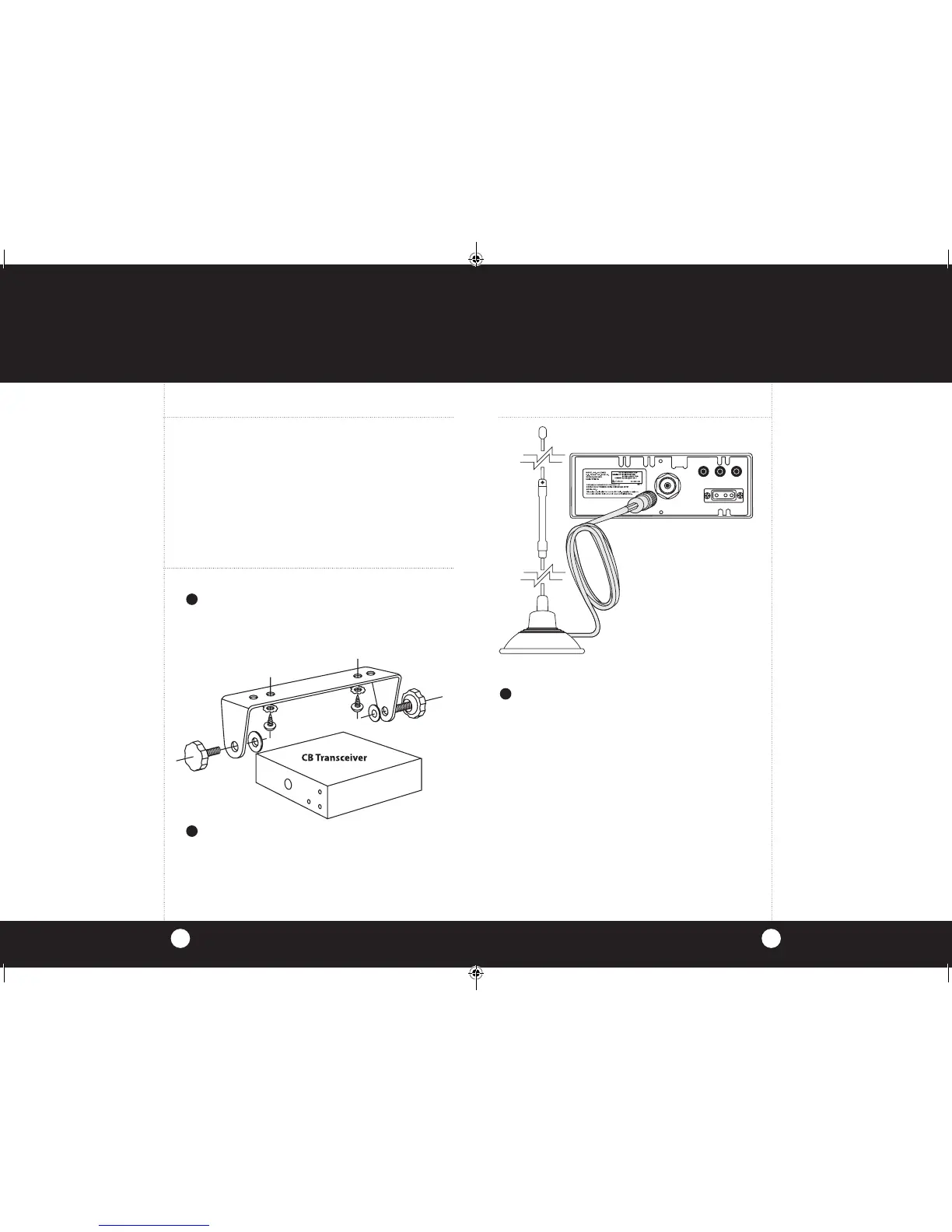

Mounting and Connection
Hold the radio with the mounting bracket in the
exact desired location. If there is no interference,
remove the bracket and use it as a template to
mark the location for the mounting screws.
Location
Plan a location of the transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation, yet
does not interfere with the driver or the passenger.
The transceiver is usually mounted to the underside of
the dash with the microphone bracket beside it.
Note
The transceiver is held in the
universal mounting bracket by
two thumbscrews which allow
for adjustment at a convenient
angle.
The bracket includes two
self-tapping screws and star
washers. The mounting must
be mechanically strong and
conveniently located.
continued
Drill the pilot and secure the bracket.
2
1
Connect the antenna cable plug to the receptacle
marked “ANT” on the back of the unit.
3
ANT
EXT MIC EXT. PTT EXT.SP.
+POWER–
