Overview
Block Up Converter Systems 6700/6900 series User Guide 11

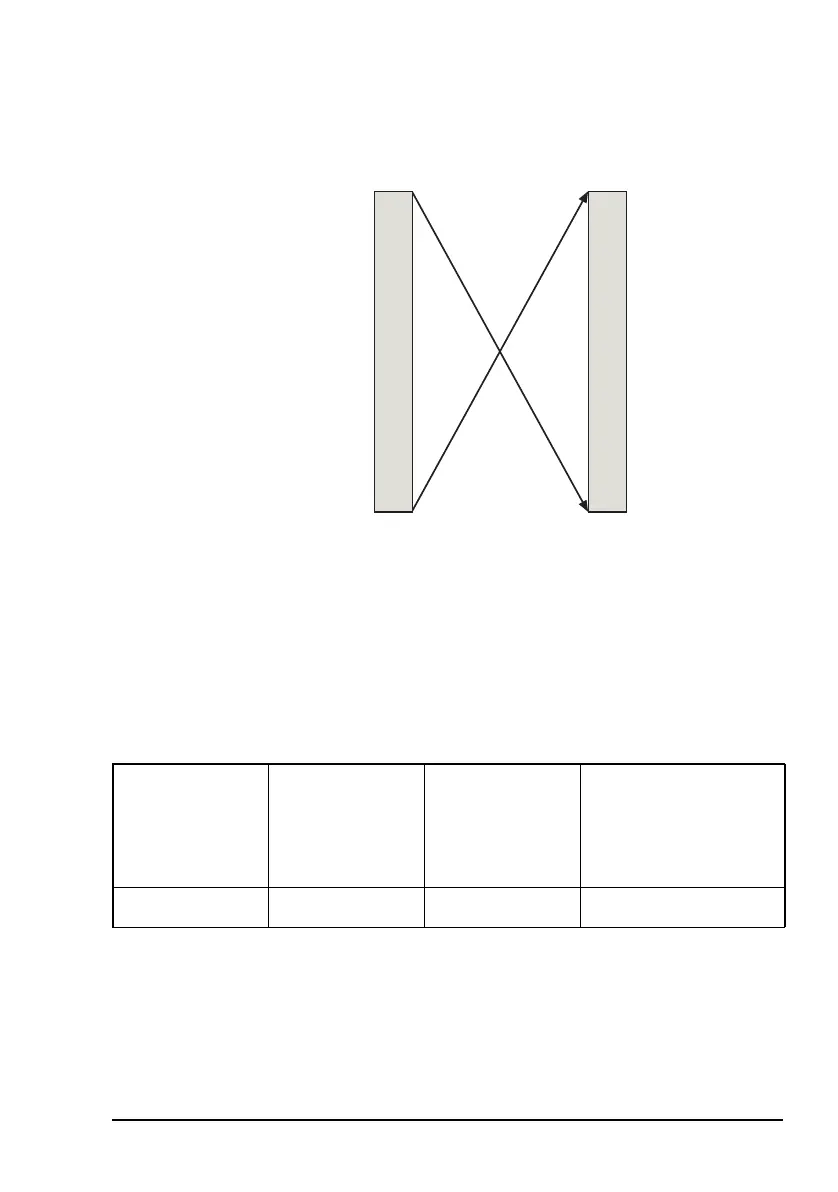

Figure 6: C-Band frequency conversion plan at an LO
frequency of 7675 MHz
Ku-Band
Figure 7 and Figure 8 show the frequency conversion plans
for each LO frequency of the Ku-Band BUCs.
Table 4: Frequency ranges for Ku-Band BUCs
(Standard)
LO frequency
(MHz)
f
LO
Tuning range of
L-Band
(MHz)
f
IF
Output
frequency
(MHz)
f
RF
See...
15450 950–1450 14000–14500 Figure 7 on page 12
950 MHz
IF input RF output
750 MHz1 725 MHz6
925 MHz5
