CB 1 Series
Administrator Guide
5.2 24V AC supply – Bring the power connection into the unit and using the proper crimping tool,
attach the incoming power wires to the appropriate black and red manifold wires or 24V fuse
block.
5.3 120V AC supply – Bring the incoming power into the junction box. Using the proper crimping
tool, attach and fasten each of the incoming power wires to the power brick’s white/yellow and
black/brown wires.
All wiring must be installed and connected by experienced and certied personnel to meet
local and national electrical codes, and will include a service disconnect.

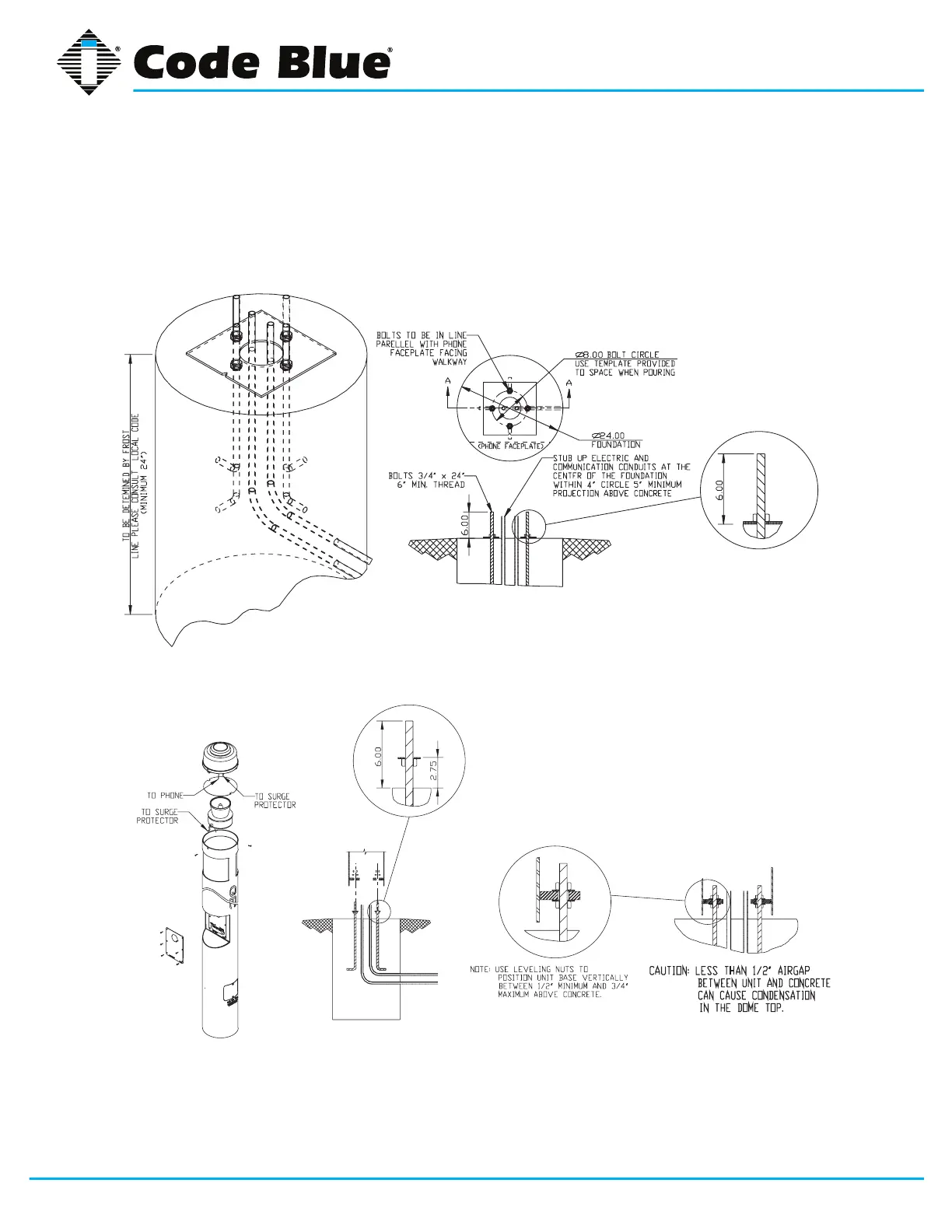

Figure 2
(CB 1-s as shown)
