CB 1 Series
Administrator Guide

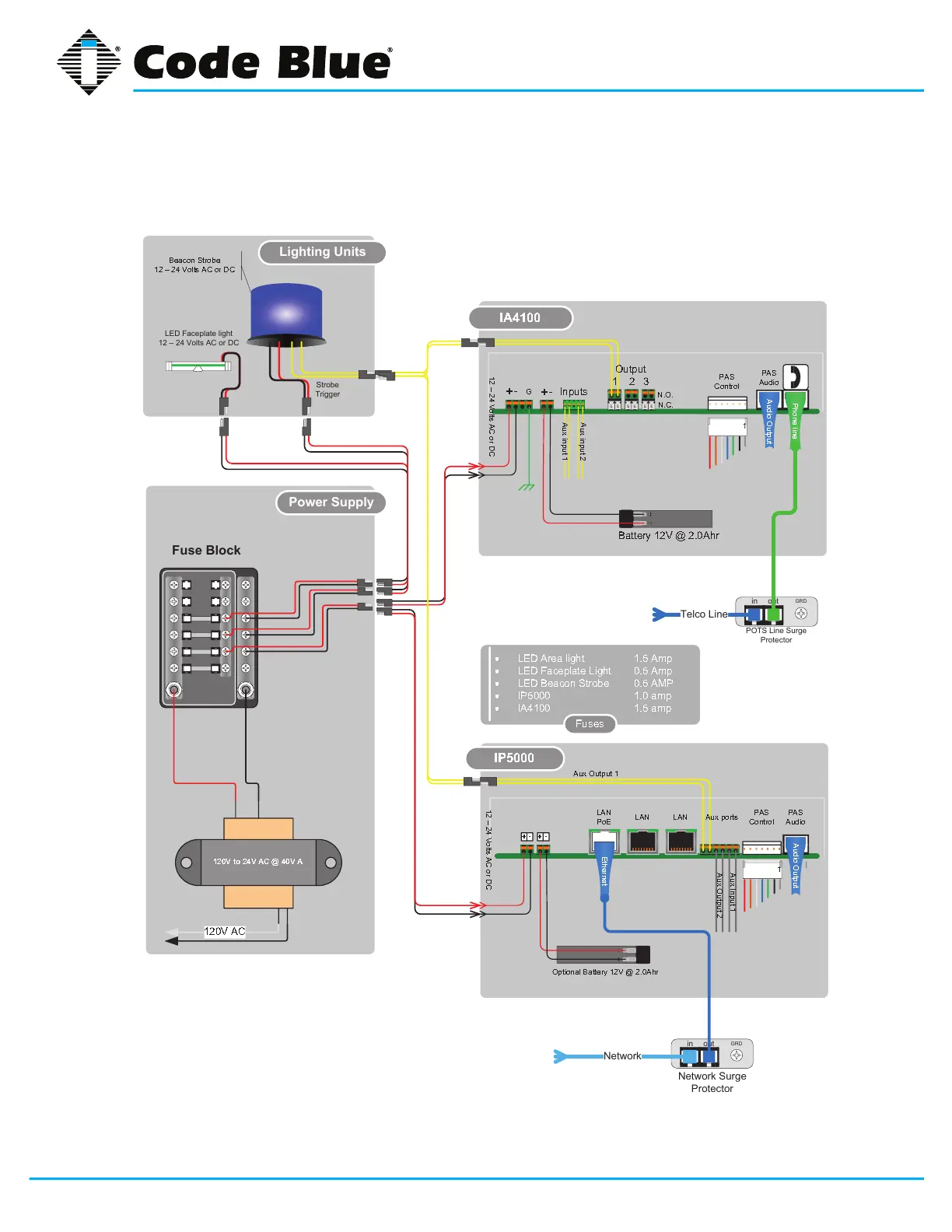

35 CB 1-e 120V Standard Wiring (after 2015)
(with Triad Transformer)
Lighting Units
Strobe
Trigger
LED Faceplate light
12 – 24 Volts AC or DC
Power Supply
Fuse Block
in out
GRD
Network Surge
Protector
in out
GRD
POTS Line Surge
Protector
Network
Telco Line
1
Inputs
Aux input
1
Aux input
2
Phone line
Audio Output
+
-
G
+
-
Output
1 2 3
N.O.
N.C.
PAS
Control
PAS
Audio
Battery 12V @ 2.0Ahr
12 – 24 Volts AC or DC
IA4100
LANLAN
LAN
PoE
PAS
Control
PAS
Audio
+
-
+
-
Audio Output
1
Optional Battery 12V @ 2.0Ahr
Ethernet
Aux Output 2 Aux Input 1
Aux Output 1
Aux ports
IP5000
12 – 24 Volts AC or DC
Beacon Strobe
12 – 24 Volts AC or DC
· LED Area light 1.5 Amp
· LED Faceplate Light 0.5 Amp
· LED Beacon Strobe 0.5 AMP
· IP5000 1.0 amp
· IA4100 1.5 amp
Fuses
120V to 24V AC @ 40V A
120V AC
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identication and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to conrm replacement part version and availability.
