4.3 120V AC supply – Using the proper crimping tool, attach a #8 fork to each of the incoming
power wires and fasten tem to the terminals as labeled on the transformer. After completing
the wire connections, install the supplied terminal covers.

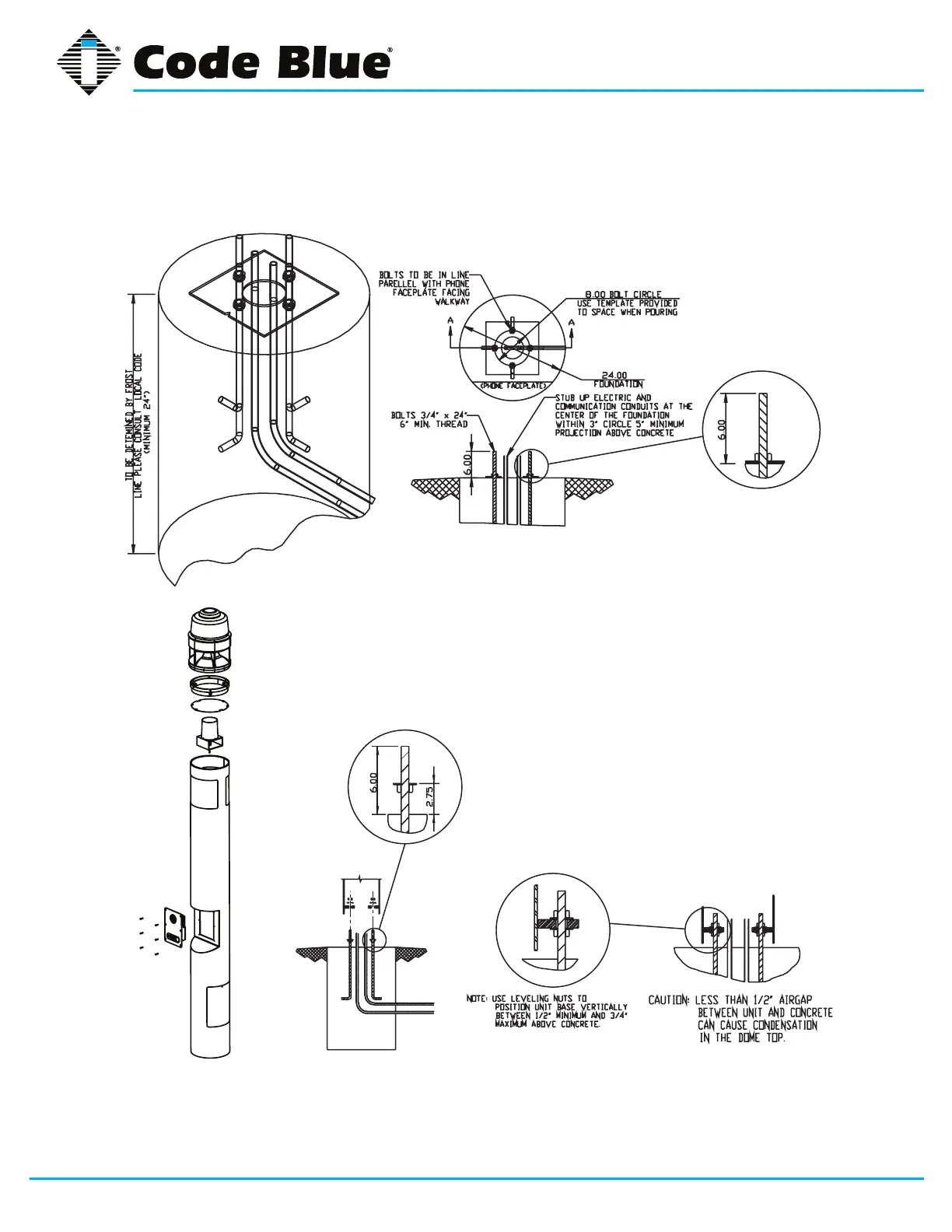

Figure 1
Figure 2
(PAS 1-s as shown)
All wiring must be installed and connected by experienced and certied personnel to meet
local and national electrical codes, and will include a service disconnect.
