Code Blue CB 2-e - CB 2-A Exploded View

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-149-AApage 15 of 63
CB 2 Series
Administrator Guide

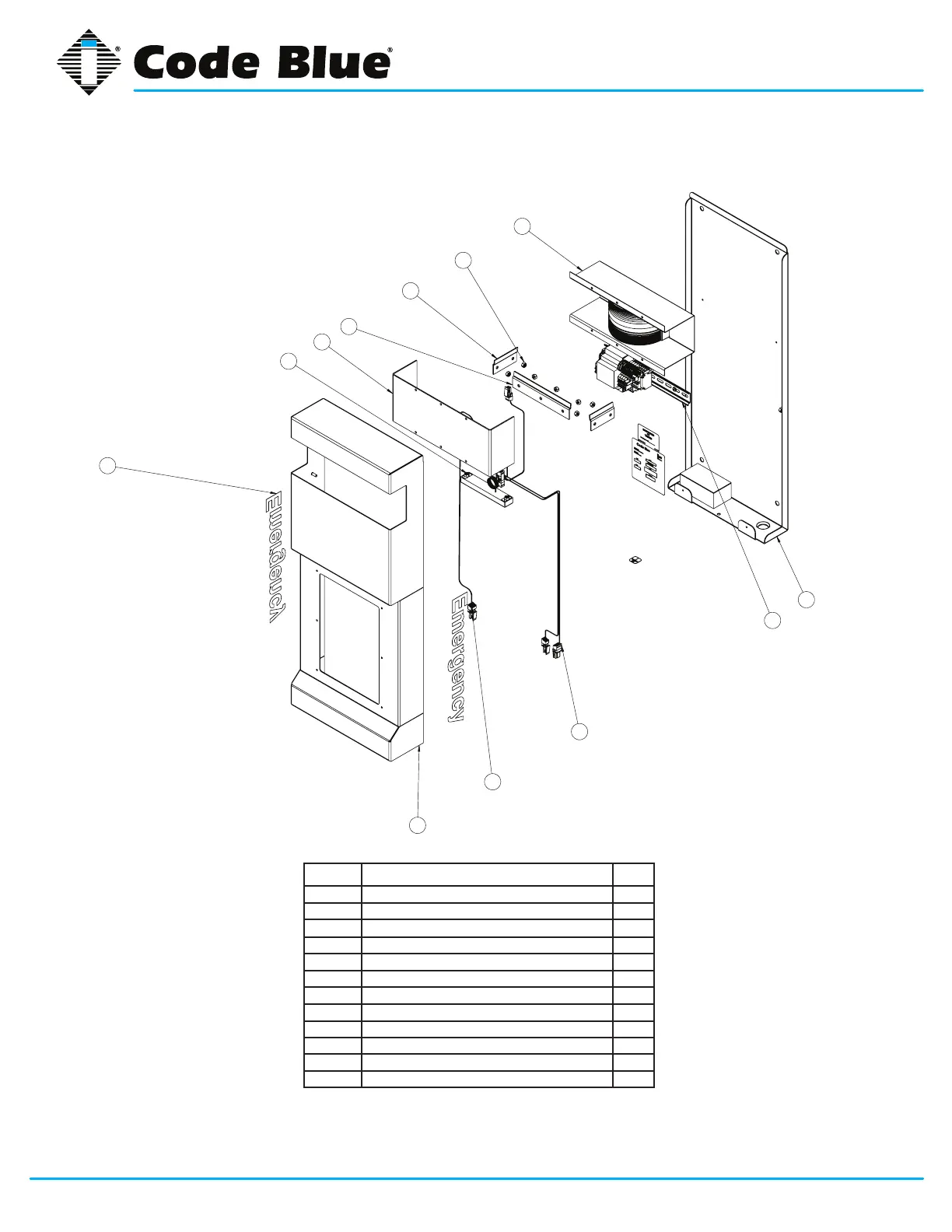

8 CB 2-a Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
4
6
2
7
8
1
5
3
12
10
11
9
ITEM # DESCRIPTION QTY
1 Wall Mount Shell Assy 1
2 2 Series Wall Plate Assy 1
3 LED Faceplate Light 1
4 LED Blue Beacon Strobe 1
5 Standard / Custom Graphic 2
6 DIN Rail Assy 1
7 28” Harness, 4 Connector 1
8 28” Harness, 1 Connector 1
9 Lens 1
10 10-24 Nylock Nut 7
11 Lens Retainer Bracket Long 1
12 Lens Retainer Bracket Short 2
