Code Blue CB 2-e - CB 2 Series Multi-Tap Power Brick Wiring; Power Source Wiring; Communication Connections Wiring

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-149-AApage 53 of 63
CB 2 Series
Administrator Guide
-
-
/

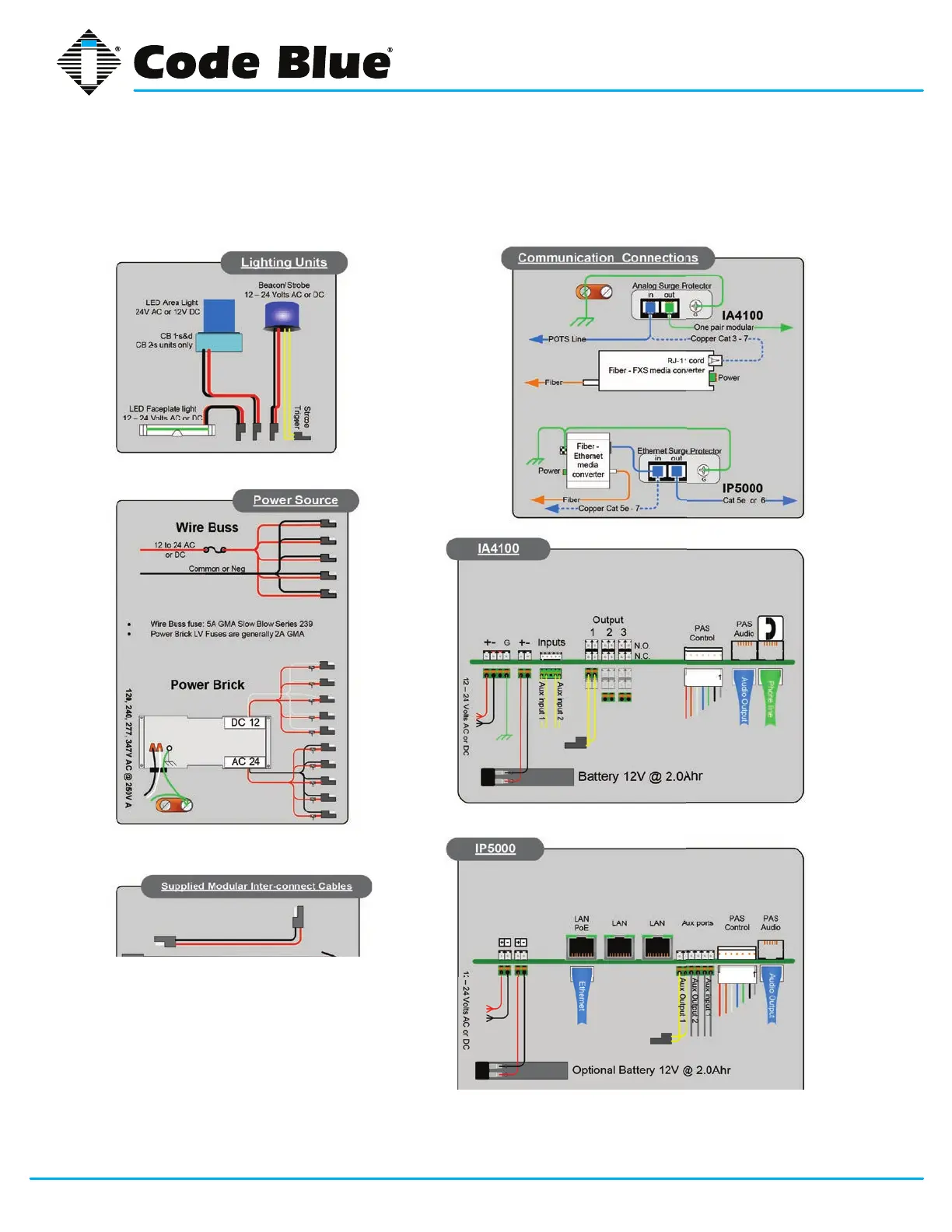

32 CB 2 Series 24V or 120V Multi-Tap Power Brick Wiring
(prior to 2020)
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identi cation and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to con rm replacement part version and availability.
