GU-149-AApage 18 of 63
CB 2 Series
Administrator Guide

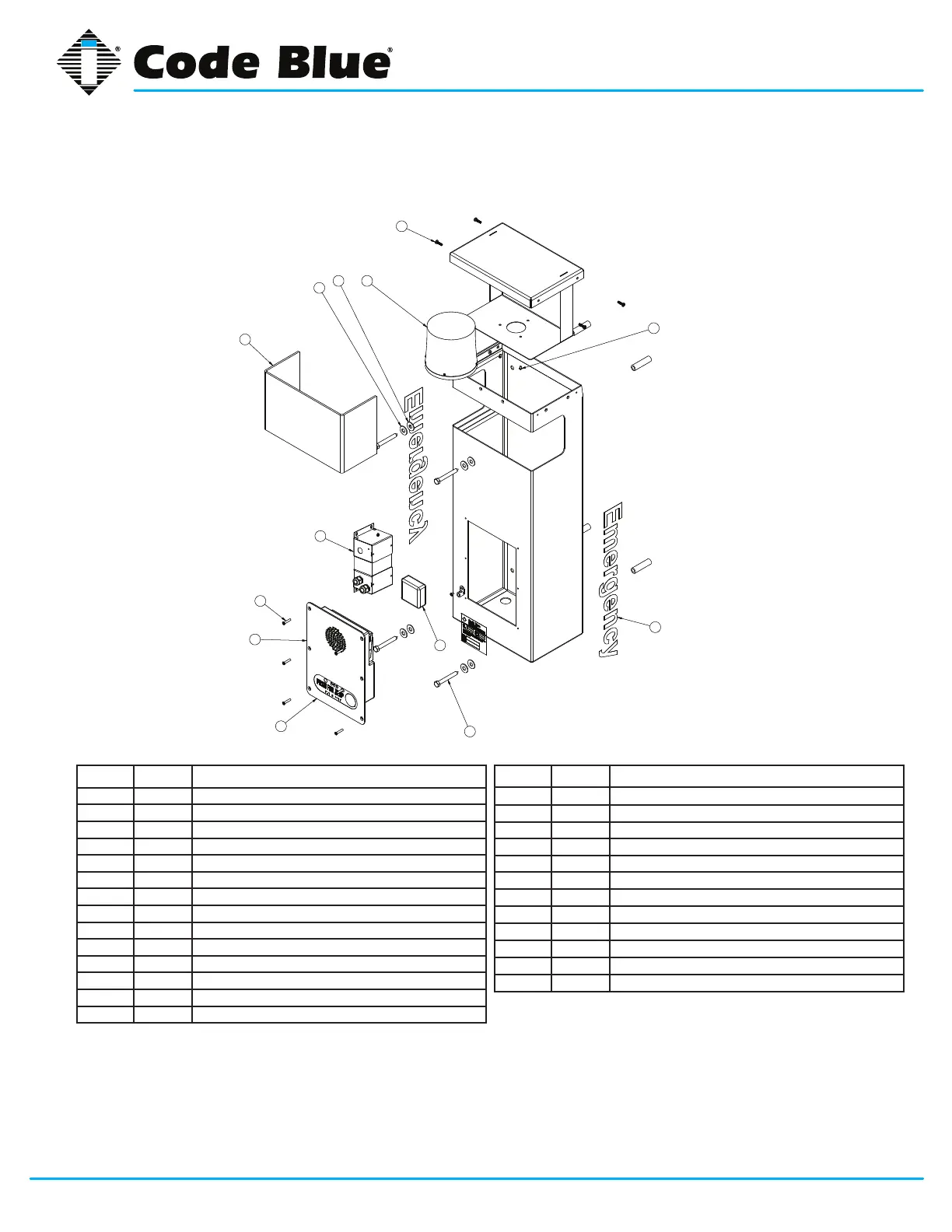

11 Legacy CB 2-e High Voltage Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
3
2
3
4
4
1
4
9
8
7
6
10
5
3
2
3
4
4
1
4
9
8
7
6
10
5
BALL # PART # DESCRIPTION
1 41425 HID Lens
2 40159 LED Beacon Strobe
3 41500 Button Head Security Screws (3 pk)
4 40102 Wall Anchor Kit
5 41471 Analog Surge Suppressor
5 41421 IP Surge Suppressor
6 CALL Standard Graphic
6 CALL Custom Graphic
7 50001 Single Button IA4100 Analog Phone – PUSH FOR HELP
7 50002 Double Button IA4100 Analog Phone – PUSH FOR HELP
7 50003 Keypad IA4100 Analog Phone – PUSH FOR HELP
7 50004 Single Button IA4100 Analog Phone – EMERGENCY
7 50005 Double Button IA4100 Analog Phone – EMERGENCY
7 50006 Keypad IA4100 Analog Phone – EMERGENCY
BALL # PART # DESCRIPTION
7 50101 Single Button IP5000 VoIP Phone – PUSH FOR HELP
7 50102 Double Button IP5000 VoIP Phone – PUSH FOR HELP
7 50103 Keypad IP5000 VoIP Phone – PUSH FOR HELP
7 50104 Single Button IP5000 VoIP Phone – EMERGENCY
7 50105 Double Button IP5000 VoIP Phone – EMERGENCY
7 50106 Keypad IP5000 VoIP Phone – EMERGENCY
8 41544 Faceplate Security Screw 10x24 (6 pk)
9 40104 Power Brick 120V, 240V, 277V, 347V
10 40357 Bezel Assembly IA4100 Analog Phone – PUSH FOR HELP
10 40407 Bezel Assembly IA4100 Analog Phone – EMERGENCY
10 40313 Bezel Assembly IP5000 VoIP Phone – PUSH FOR HELP
10 40405 Bezel Assembly IP5000 VoIP Phone – EMERGENCY
