Code Blue CB 2 Series - CB 2-E Exploded View

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-149-AApage 16 of 63
CB 2 Series
Administrator Guide

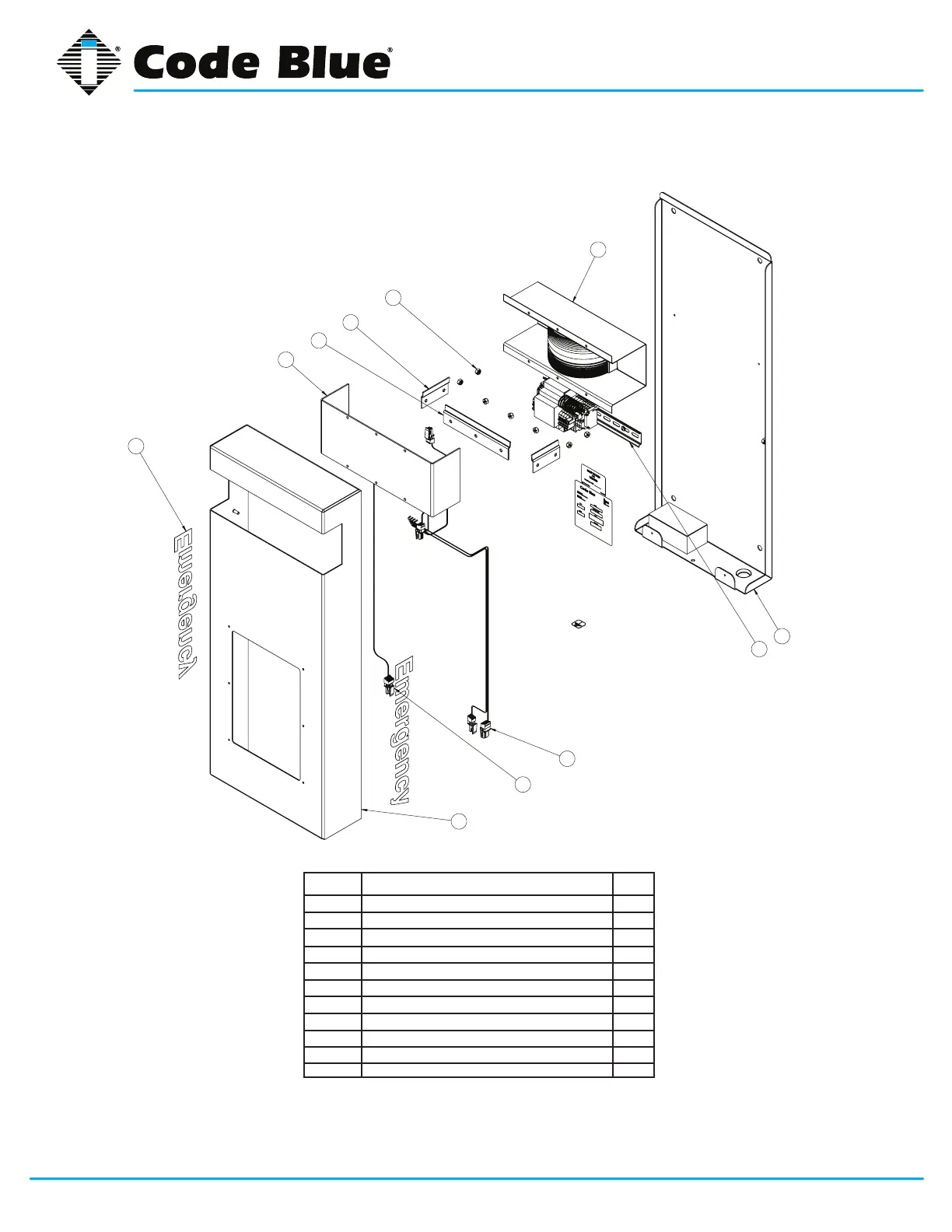

9 CB 2-e Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
5
3
2
6
7
1
4
11
9
10
8
ITEM # DESCRIPTION QTY
1 Wall Mount Shell Assy 1
2 2 Series Wall Plate Assy 1
3 LED Blue Beacon Strobe 1
4 Standard / Custom Graphic 2
5 DIN Rail Assy 1
6 28” Harness, 4 Connector 1
7 28” Harness, 1 Connector 1
8 Lens 1
9 10-24 Nylock Nut 7
10 Lens Retainer Bracket Long 1
11 Lens Retainer Bracket Short 1
