Code Blue CB 2 Series - CB 2-E Poe Diagram

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-149-AApage 50 of 63
CB 2 Series
Administrator Guide
For Incoming Power
POE
Centry
IP5000
Beacon Strobe
Faceplate LED Bar
Incoming POE
To
Ground

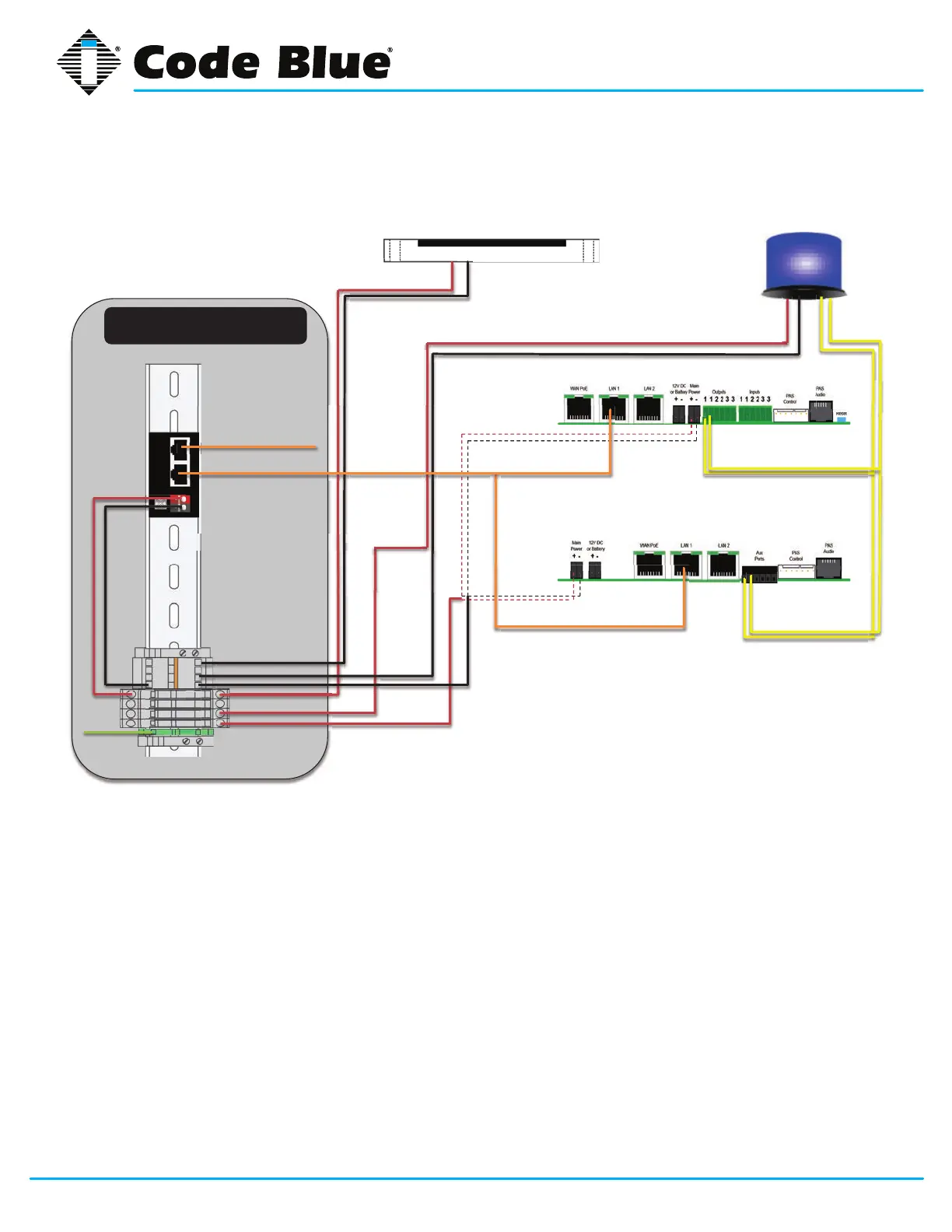

29 CB 2-e PoE Wiring (2020)
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identi cation and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to con rm replacement part version and availability.
