Code Blue CB 2 Series - CB 2-S Low Voltage Exploded View

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-149-AApage 19 of 63
CB 2 Series
Administrator Guide

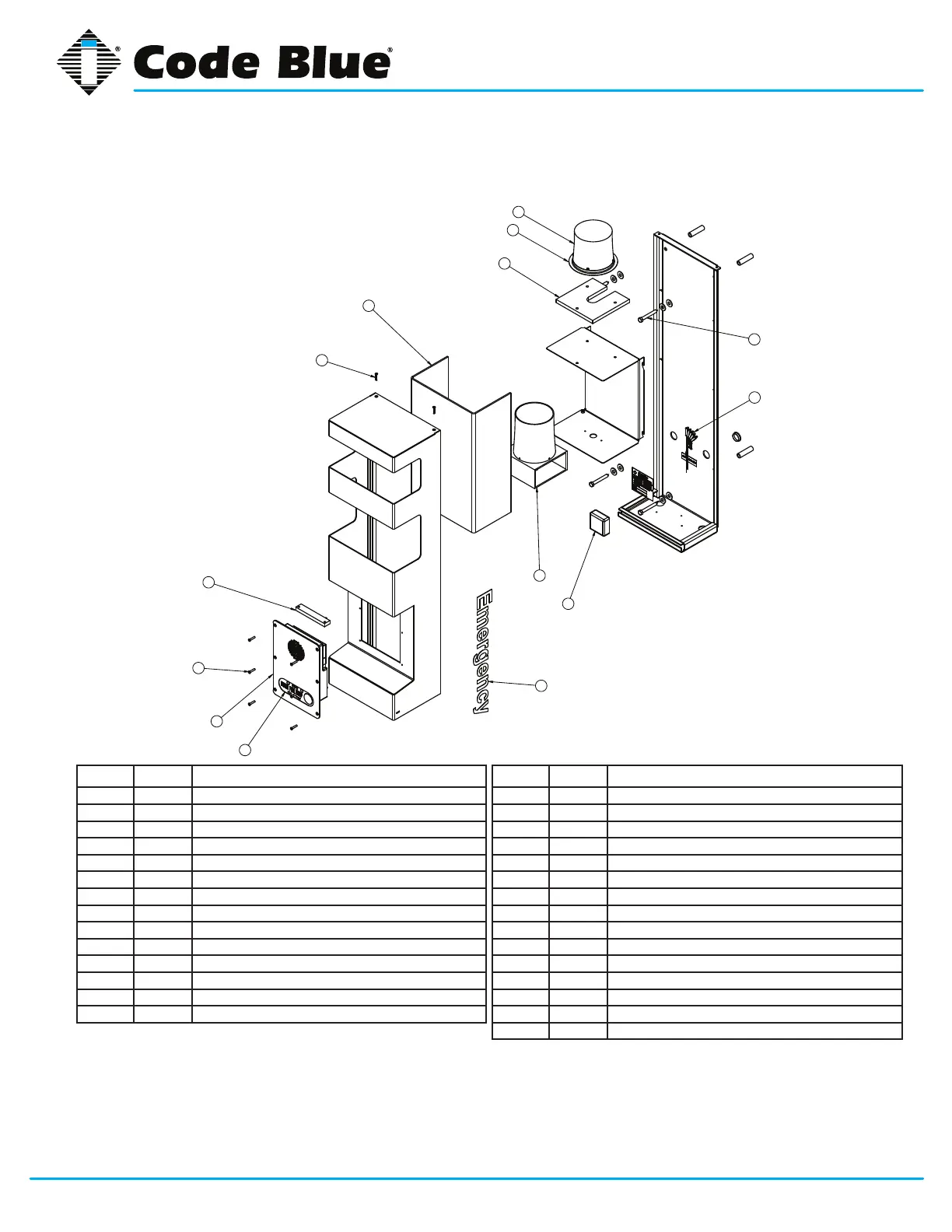

12 CB 2-s Low Voltage Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
9
3
7
10
4
14
5
6
8
2
1
13
12
11
BALL # PART # DESCRIPTION
1 40357 Bezel Assembly IA4100 Analog Phone – PUSH FOR HELP
1 40407 Bezel Assembly IA4100 Analog Phone – EMERGENCY
1 40313 Bezel Assembly IP5000 VoIP Phone – PUSH FOR HELP
1 40405 Bezel Assembly IP5000 VoIP Phone – EMERGENCY
2 50001 Single Button IA4100 Analog Phone – PUSH FOR HELP
2 50002 Double Button IA4100 Analog Phone – PUSH FOR HELP
2 50003 Keypad IA4100 Analog Phone – PUSH FOR HELP
2 50004 Single Button IA4100 Analog Phone – EMERGENCY
2 50005 Double Button IA4100 Analog Phone – EMERGENCY
2 50006 Keypad IA4100 Analog Phone – EMERGENCY
2 50101 Single Button IP5000 VoIP Phone – PUSH FOR HELP
2 50102 Double Button IP5000 VoIP Phone – PUSH FOR HELP
2 50103 Keypad IP5000 VoIP Phone – PUSH FOR HELP
2 50104 Single Button IP5000 VoIP Phone – EMERGENCY
BALL # PART # DESCRIPTION
2 50105 Double Button IP5000 VoIP Phone – EMERGENCY
2 50106 Keypad IP5000 VoIP Phone – EMERGENCY
3 41544 Faceplate Security Screw 10x24 (6 pk)
4 41548 LED Faceplate Light
5 CALL Standard / Custom Graphic
6 41471 Analog Surge Suppressor
6 41421 IP Surge Suppressor
7 41539 LED Area Light
8 41544 Faceplate Security Screw 10x24 (6 pk)
9 41412 HID Lens
10 40159 LED Blue Beacon Strobe
11 40543 Strobe Disk (3 pk)
12 10084 Clear Strobe Spacer
13 40102 Wall Mount Hardware Kit
14 40101 Manifold R/B 5-way
