CB 2 Series
Administrator Guide

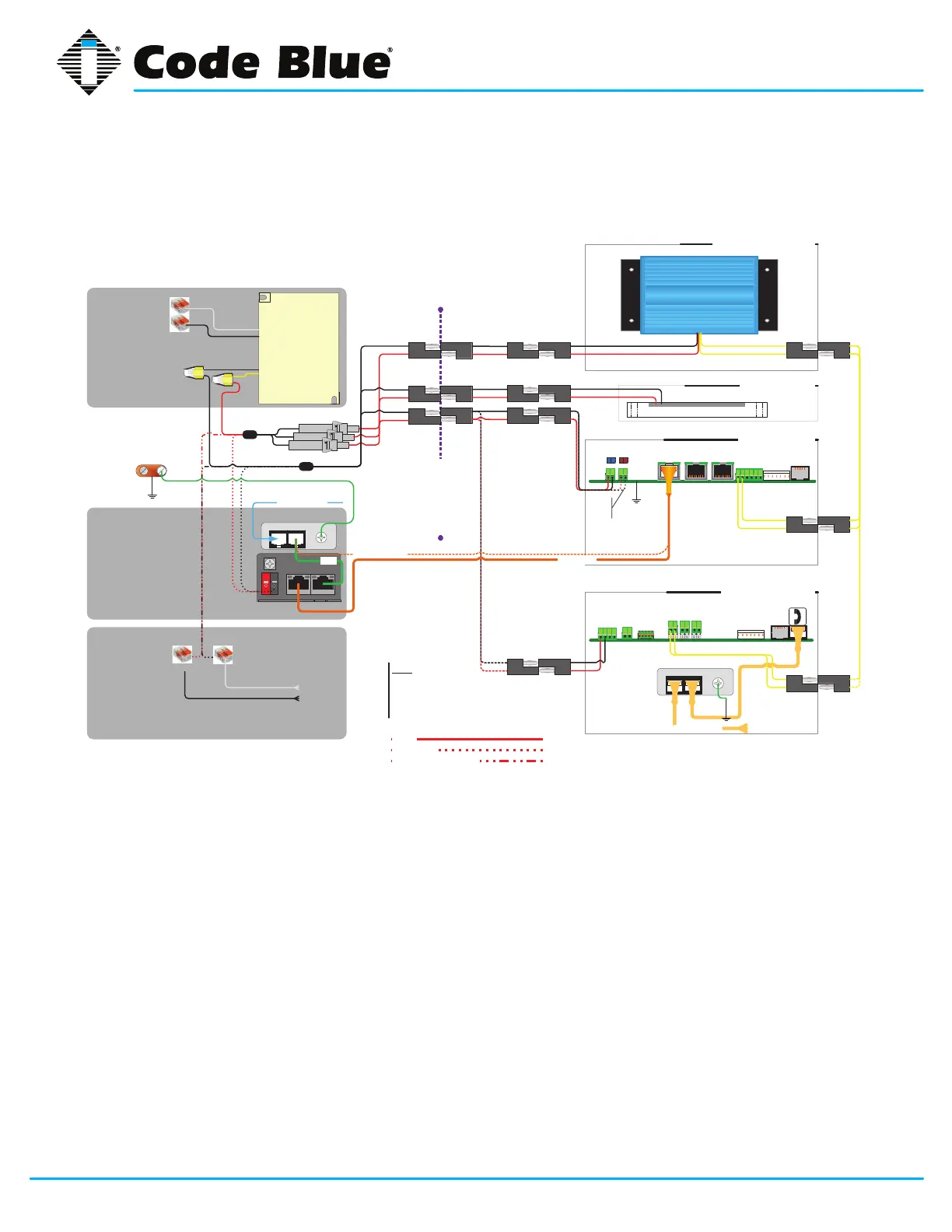

27 Legacy CB 2-a Wiring Diagram
(prior to 2020)
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identi cation and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to con rm replacement part version and availability.
FULL FILENAME
C:\USERS\MRUUD.CODEBLUE\APPDATA\LOCAL\MICROSOFT\WINDOWS\
TEMPORARY INTERNET FILES\CONTENT.OUTLOOK\EHKAOED2\CB2A WIRI
NG
DIAGRAM-B.VSD
SIZE FSCM NO DWG NO R
EV
DRAWN
Mike Rose CB-2a Wiring Diagram
B
ISSUED
7/22/16
SCALE
1 : 1 7/26/2016
SHEET
3 OF 3
Revised date
in out
GRD
Front Panel Disconnect
High Voltage
Power
Option
Customer
Provided
Power
Option
(12 – 24 Volts
AC or DC @ 12 watts nominal)
PoE
Power
Option
LAN 2
LAN 1
WAN
PoE
PAS
Control
Aux ports
PAS
Audio
+ -+ -
IP5000 VoIP
IA4100 Analog
PAS
Control
Aux Outputs
1 2 3
N.O.
N.C.
Aux
Inputs
PAS
Audio
12VDC or
Battery
Main
Power
Ethernet
POTS line - PSTN
Data +PoE
DATA
Data Cat5e
100 – 240Vac / 0.5A
277Vac /0.2A
to
12Vdc 3.3A
Class 2
Neutral
Load
S-180-1224-LED
FP-LED Bar
Fuse’s
Beacon Strobe 1 Amp
FP LED Light 0.5 or 1Amp
IP5000 1 Amp
IA4100 1.5 Amp
in out
GRD
PoE Cat5e Source
Cat5e
Non PoE - Cat5e
PoE splitter
powered
12VDC or
Battery
Main
Power
AC to DC
PoE Power (DC)
Low Voltage12- 24V AC - DC
