Code Reader 1000 - Connectivity: Cables and Pinouts; USB Cable Pinouts; RS232 Cable Pinouts

C005905_04_CR1000_User_Manual

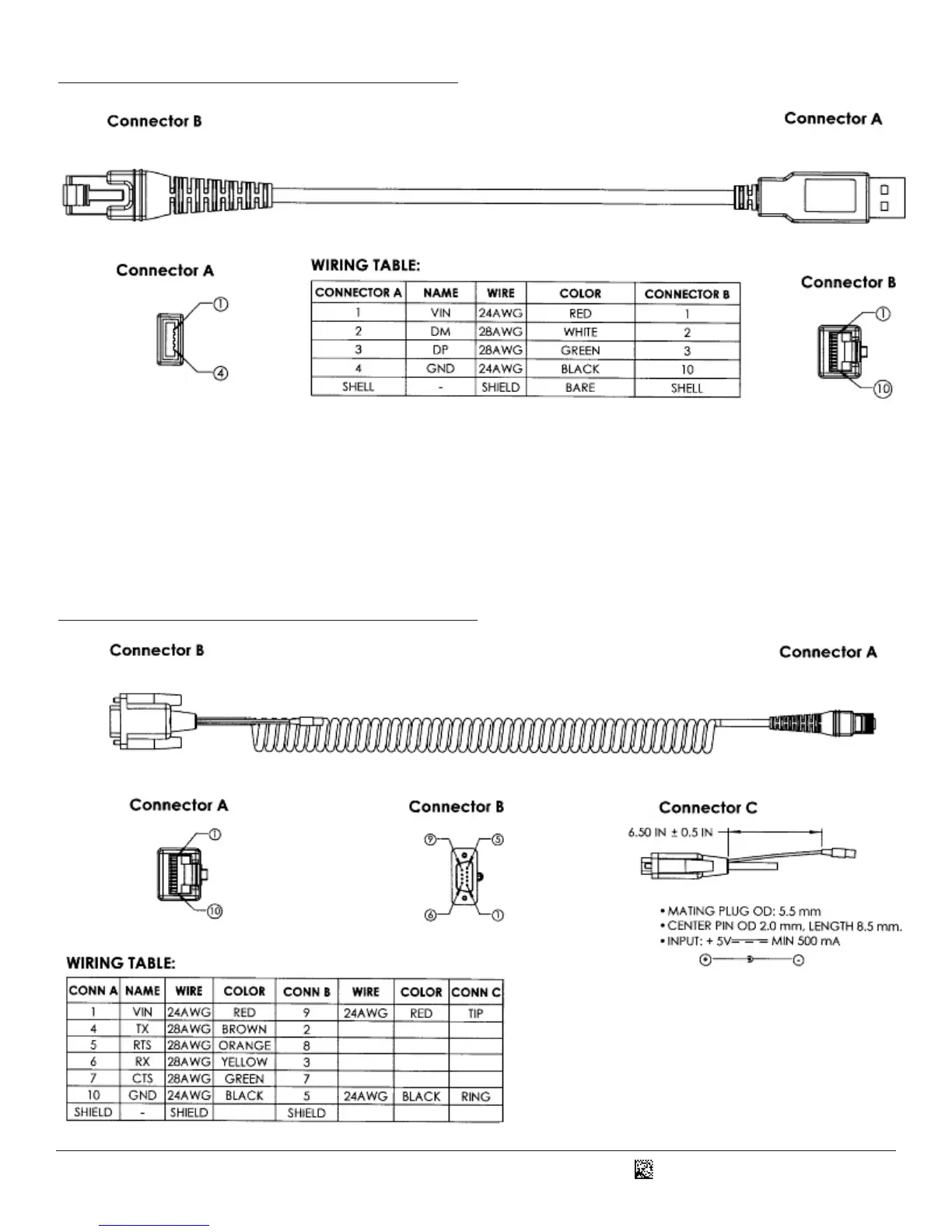

14.0 - USB Cable Example with Pinouts
7
15.0 - RS232 Cable Example with Pinouts
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Cauon: Exceeding the maximum voltage will void
manufacturer warranty.
NOTES:
1. Part to be ROHS and Reach compliant.
2. Maximum Voltage Tolerance = 5V +/- 10%.
3. Cauon: Exceeding the maximum voltage will void
manufacturer warranty.
See Secon 16.0 for complete reader pinouts descripons.
See Secon 16.0 for complete reader pinouts descripons.
