Cognex AS200 - Network Layout and Configuration

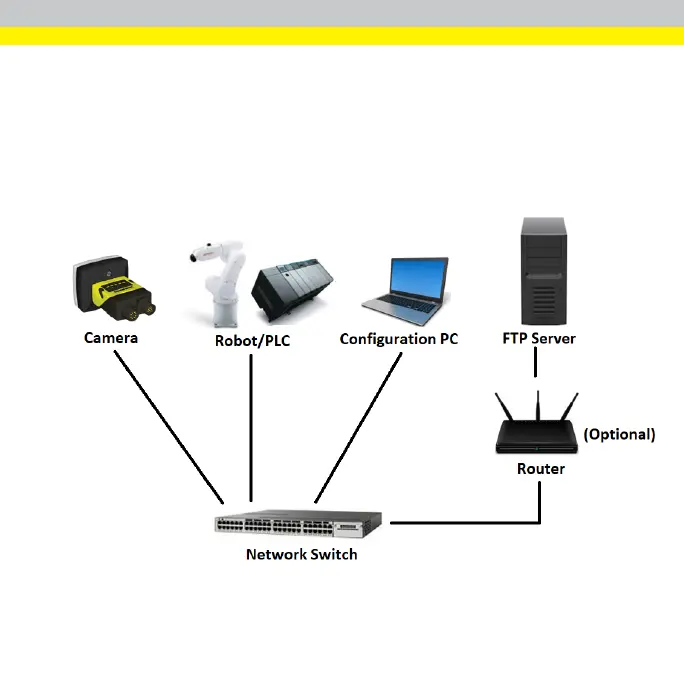

Network Layout
To network with the AS200 Alignment Sensor, use the following guidelines:
l All components must have a static IP addresses.
l All components must be in the same subnet, except the FTP server. If the
FTPserver is on a different subnet, you must connect it to a router through
a default gateway address.
13
