Mounting the Reader in Right-Angle Configuration

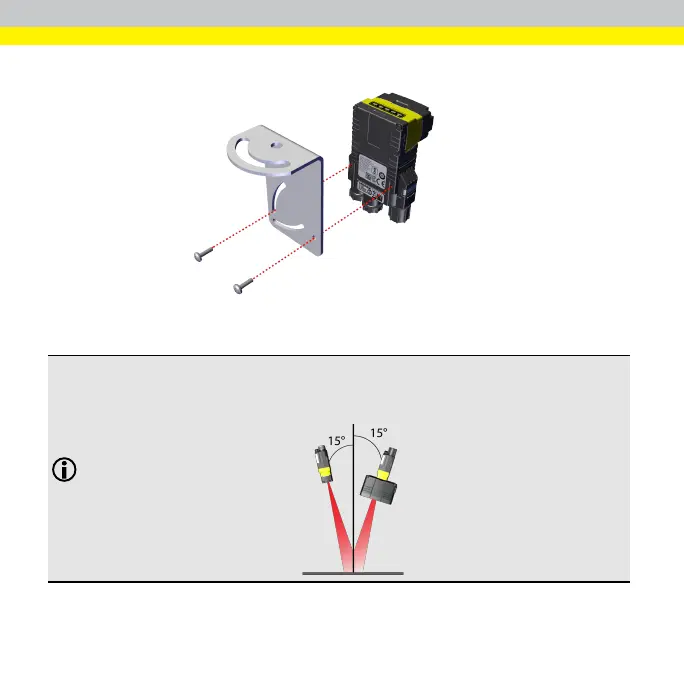

Align the holes on the mounting surface with the mounting holes on the reader. With
the reader in right-angle position, only the back mounting holes can be used.
Note:
Mounting the reader at a slight angle (15°) reduces reflections and improves
performance.
