Cognex DataMan 280 - Line EtherCAT Topology

Line EtherCATTopology

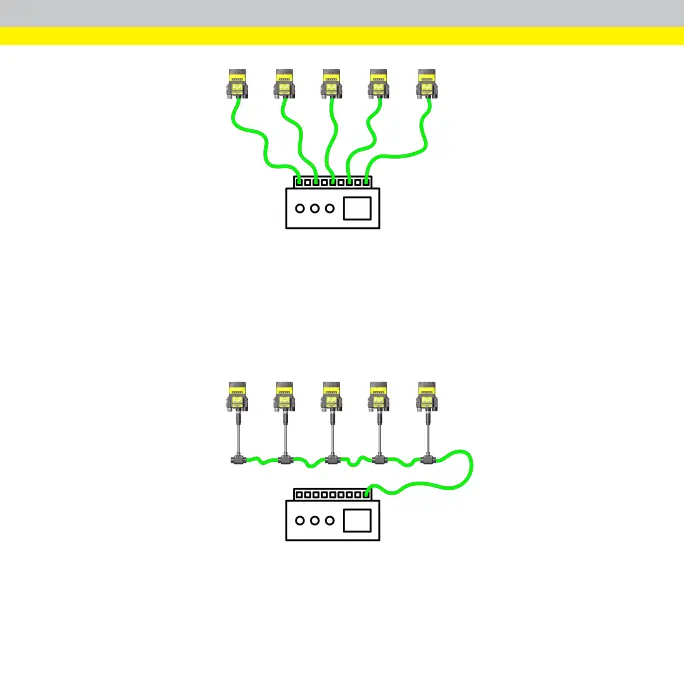

The line topology connects the readers in daisy chain. The output of one adapter
cable is plugged into the input of the next one. The line starts at the output from the
PLC, and ends at the input connector of the last reader. This topology reduces the
cabling needed to connect all readers.
33
