Mounting the Reader
The reader provides mounting holes for attachment to a mounting surface.
CAUTION: The reader has to be grounded, either by mounting the reader to
a fixture that is electrically grounded or by attaching a wire from the reader’s
mounting fixture to frame ground or Earth ground. If a ground wire is used, it
has to be attached to one of the four mounting points on the bottom plate of
the reader and not to the mounting points on the front of the reader.
The method of mounting depends on whether the reader is in straight or right-angle
configuration, regardless of the product variant.

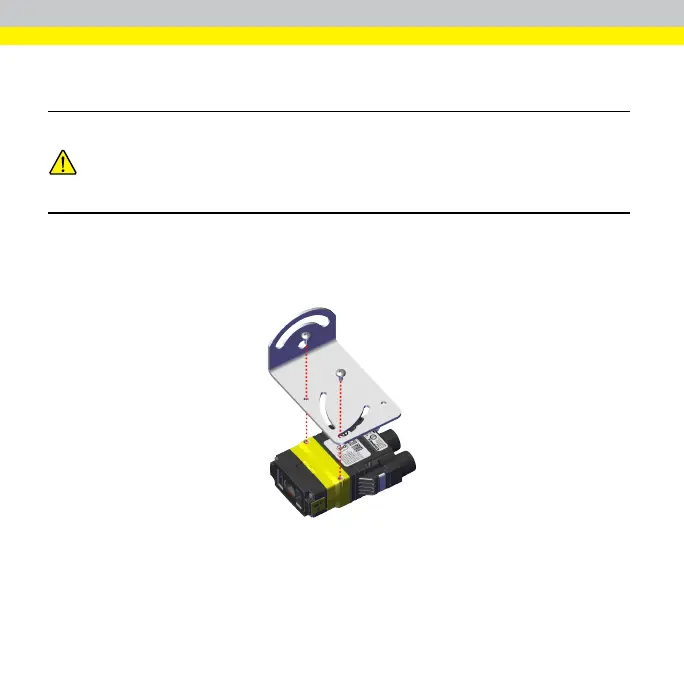

Mounting the Reader in Straight Configuration
Align the holes on the mounting surface with the mounting holes on the reader.
Insert the M3 screws into the mounting holes.
28
