Cold Jet PR120H - Procedure for Changing Refill Filter on Pr120 H

PR120H
MECHANICAL MAINTENANCE
Version: 5
Page: 14 of 24
Date: 2022.12.13
8. PROCEDURE FOR CHANGING REFILL FILTER ON PR120H
Procedure step by step
1. Dismount the 6 screws [2] from the refill filter [1].
2. Replace the refill filter. Make sure to replace the gasket [3]
3. Mount the 6 screws [2] again tightening evenly and firmly.
BEFORE STARTING PRODUCTION THE HYDRAULIC MOTION SHOULD BE CHECKED IN SINGLE MODE!

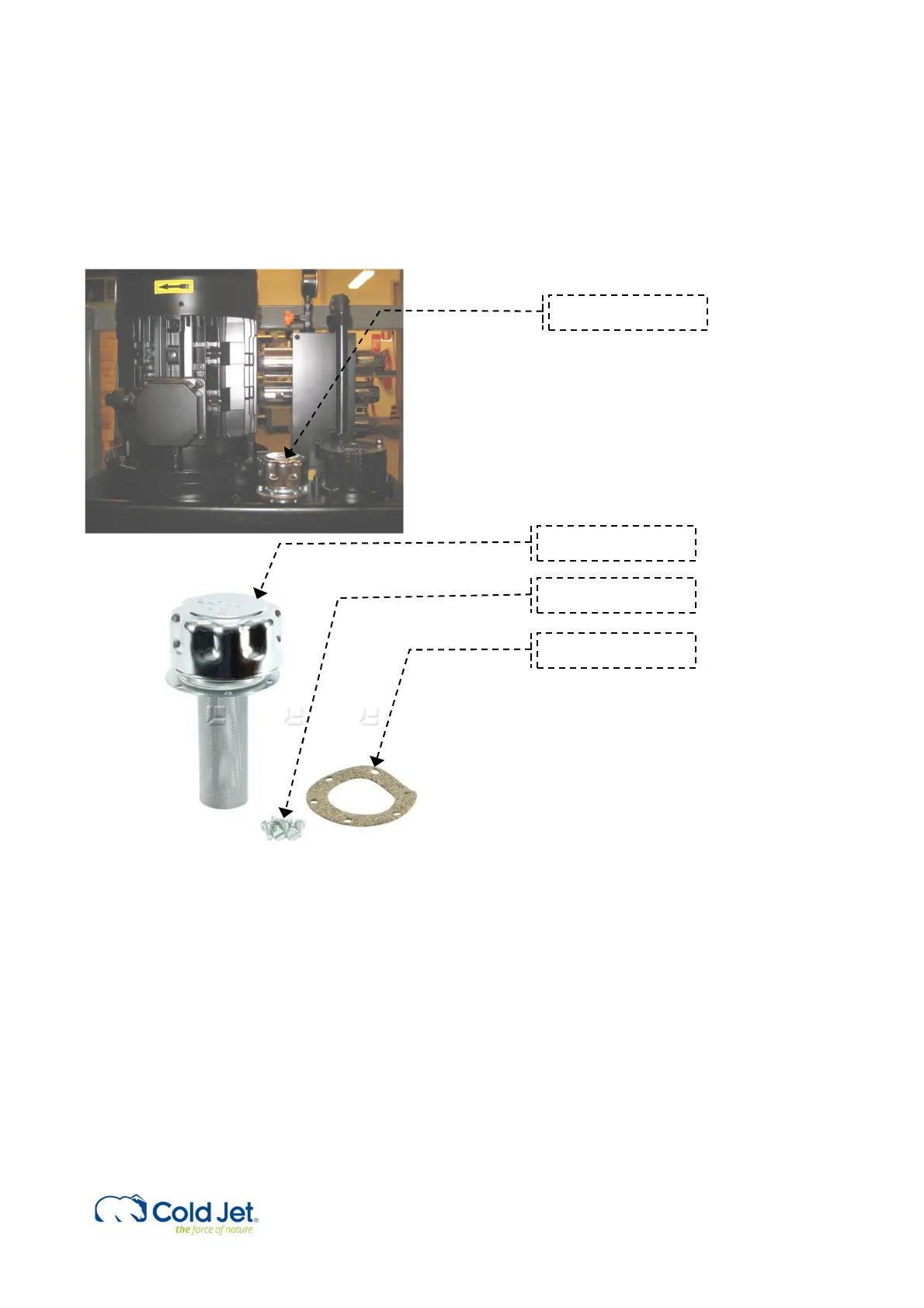

1. Refill filter
1. Refill filter
1. Screws
3. Gasket
