14
1
21
1
3
1
1
1
12
1
11
1
4
2
13
1
6
1
2
1
15
1
B
10
1
7
4
26
6
9
6
5
1
4
2
16
1
18
1
20
1
17
1
19
1
C
C
23
1
22
2
8
1
D
E
25
2
E
E
25
2
F
28
2
28
27
1
NOTES:
APPLY SEMI-PERMANENT THREAD SEALING COMPOUND
1.
TO ALL FITTINGS IF NOT PRE-APPLIED.
APPLY ANTI-SEIZE FOOD GRADE COMPOUND AFTER
2.
CLEANING THE THREADS.
SEE NOTE #1
SEE NOTE #1
SEE NOTE #2
SEE NOTE #2
24
1
SEE NOTE #1
29
2
F
TORQUE TO 117 FT-LBS (158 NM)
SEE NOTE #2
TORQUE TO 117 FT-LBS (158 NM)
SEE NOTE #2
G
REVISIONS
REV.
DESCRIPTION
DATE
IN ITIALS
B
changed check valve to 1 ½", BSPP; changed pipe
lengths
2016-04-08
lm
C
update length of pipes
2016-05-19
lm
D
updated bracket, pipes, add Flexible hose and
suspension,
08.02.2017
lm
E
102002 replace w. new part 504836, replaced fittings,
insert 502639x2, and update pipe length
19.09.2017
lm
F
Added annotations
21-03-2019
Hmh
G
ADDED NEW PART
19-01-2022
JVM
ITEM NO.
PART NUMBER
Description
QTY.
1 512628
CO2 out- welded pipe assem 01
1
2 512629
CO2 out- welded pipe assem 02
1
3 512630
CO2 out- welded pipe assem 03
1
4 510948
CO2 Out - Heat exchanger welded connection
2
5 510892
Heat exchanger
1
6 512611
Mounting block PR 120H
1
7 70067
Hexagon nut DIN 934 - M8 A2
4
8 513707
BRACKET, HEATEXCHANGER, PR120H
1
9 70030
SCREW, SOCKET HEAD CAP, M10 X 25 MM
LONG, STAINLESS STEEL
6
10 513706
PLATE, HEAT EXCHANGER, PR120H
1
11 512637
CO2 out- welded pipe assem 04
1
12 101223
Safety valve, 1/4", 1 bar
1
13 502516
Male-Female Elbow, G1/4-G1/4
1
14 500316
Nipple 2" x 2"
1
15 512853
Check valve, 1 ½", BSPP
1
16 504124
Nippel, 1/2", 1/2", BSP-BSP AIS
1
17 101221
Safety valve, 1/4", 27,6 bar
1
18 501784
Union muff/nipple 1/2"
1
19 500940
Nippel, 1/2", 3/8", BSP-BSP AISI
1
20 500943
Nippel-Muffe, 1/2"-1/4", BSP-BSP, AISI
1
21 512992
Muff reducere 1 ½” -2"
1
22 513714
Dual stainless clamp, Dim. 51-60m, AISI304
2
23 504836
HOSE, DEGASSING 2", PR120H
1
24 510965
Suspension for CO2 pipe, complete
1
25 502639
FITTING, 3/4 IN, BSP
2
26 70018
WASHER, STANDARD FLAT, M10,
STAINLESS STEEL
6
27 504814
Tredoring, G2"
1
28 500952
Tredoring, G1/2"
2
29 510921
Gasket, EPDM, 51
2
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Break sharp edges and deburr
Tolerance acc. to DS/ISO 2768-mK
512627
Article nr.:
Copy from:
Industrivej 62
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetechworld.com
-
Material:
P294-1-16336
1
Sheet no:
Projection:
A3
Creator:
Rev:
G
Date:
Scale:
Weight:
13.82 kg
1:6
Description:

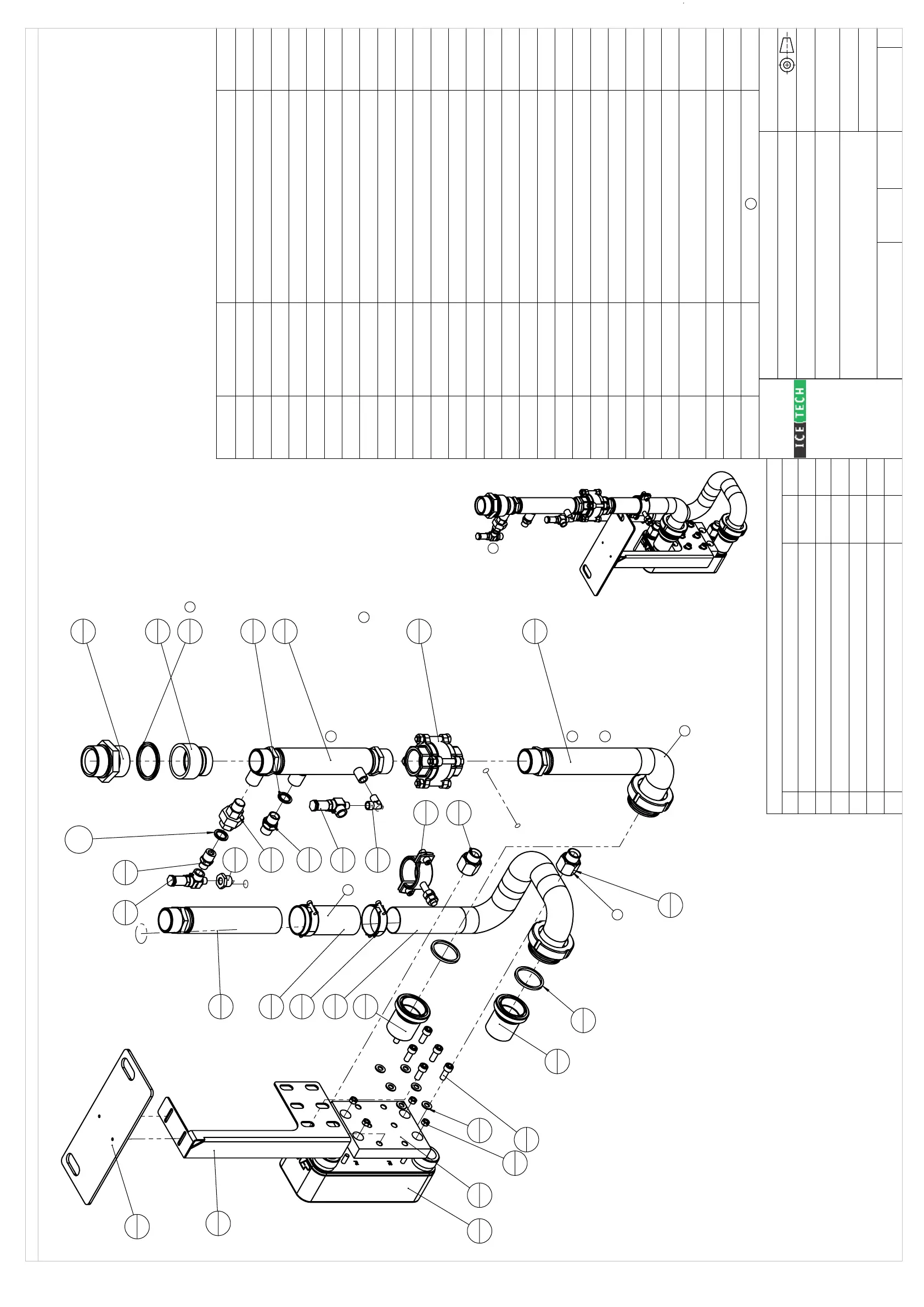

CO2 out - PR 120 H
Format:
lm
Drawing no.:
IceTech A/S
16-02-16
