Cold Jet PR120H - Page 95

min 538
PR120H
2
3
1
4
min 713
SL1000H
REVISIONS
REV.
DESCRIPTION
DATE
A
ITEM NO.
PART NUMBER
Description
1/QTY.
1 200531
Angle, Ø 14 x ½"
1
2 200533
Union, Ø14 x ½"
1
3 515675
Pneumatic hose (Clear), PU Ø14/10
1
4 502137
PROP, MS E29-5 1/2'' WITH O-RING
1
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
514724
Article nr.:
Copy from:
Industrivej 62 DK-6740 Bramming TLF. +45 76561500 FAX. +45 76561509 www.icetechworld.com
Material:
P294-1-20258
1/1
Sheet no: Projection:
A4
Creator:
Rev:
A
Date:
Scale:
Weight:
kg
1:5
Description:

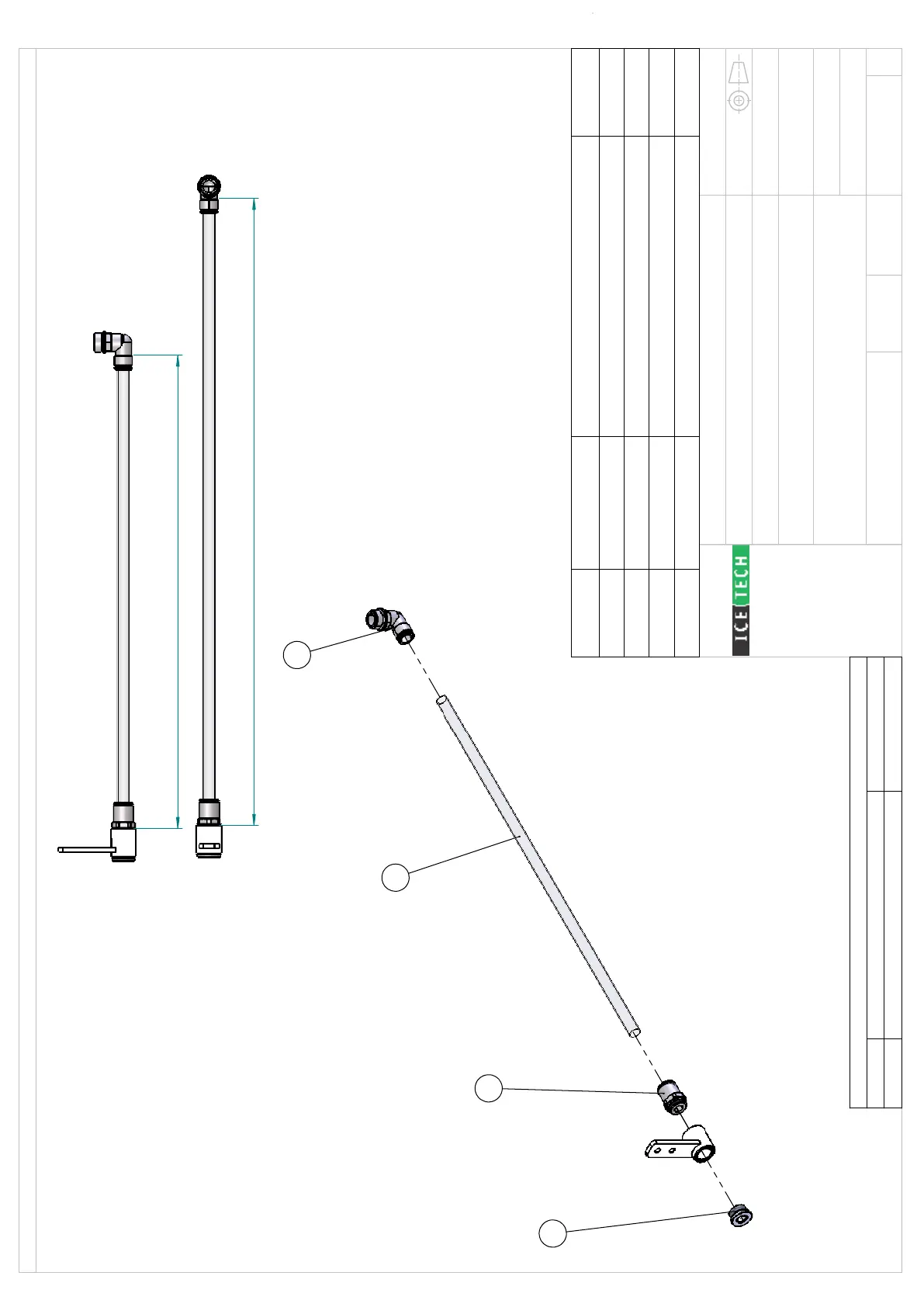

DRAIN 1/2" COMPL.
Format:
lm
Drawing no.:
IceTech A/S
25-09-17
