Pre-Installation Guidelines & Checklist
15

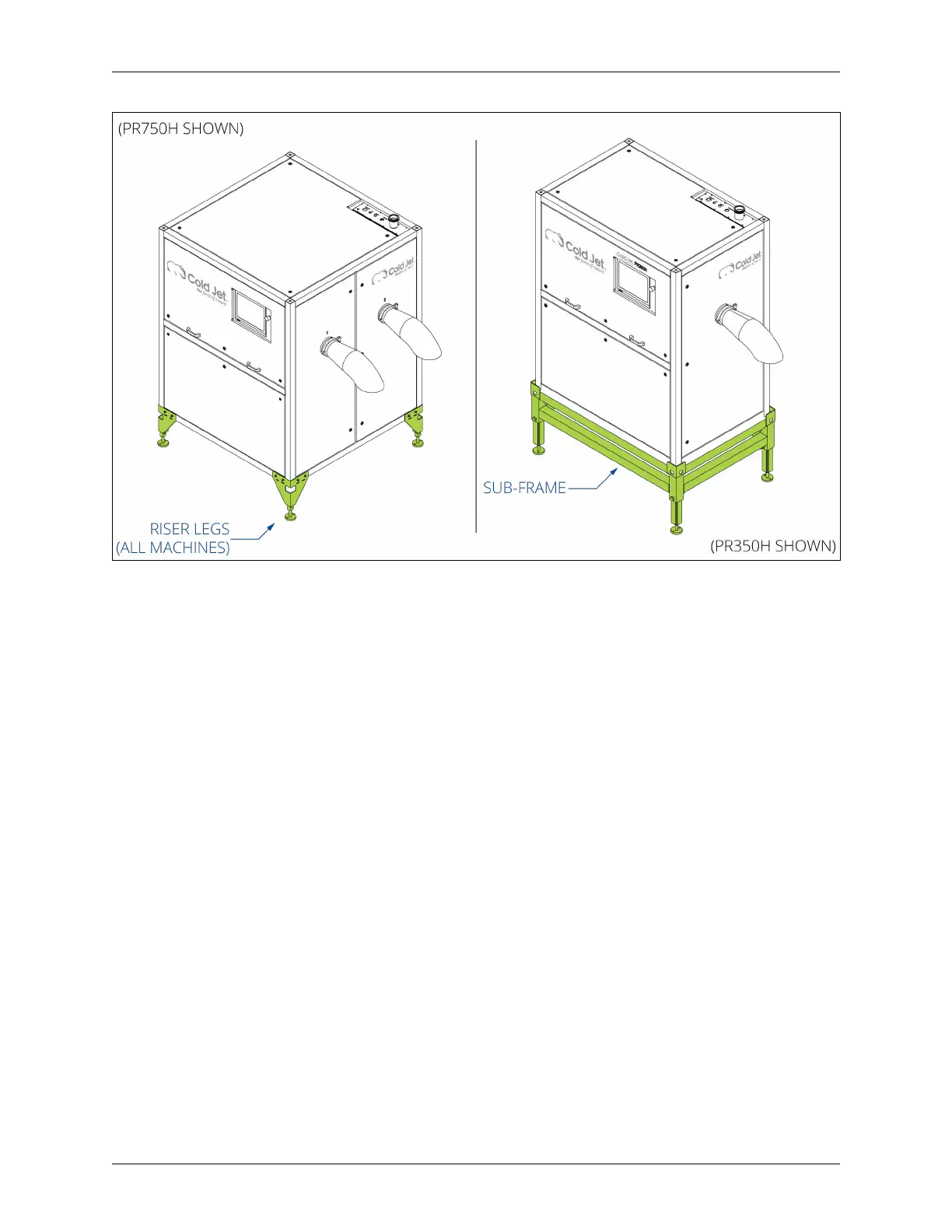

Riser Legs (Set of 4)
PR120H Riser Legs (Set of 4), Item 513813
PR350H/PR750H Riser Legs (Set of 4), Item 513814
The riser legs raise the pelletizer discharge height to allow for the direct feeding of dierent
types of taller dry ice transport container/totes. The riser legs raise the pelletizer by 200 mm
(7.87 in) and result in a total distance of 100 mm (3.97 in) between the oor and a standard
discharge chute. This option is recommended if the dry ice container/tote being used is taller
than 800 mm (31.5 in).
This option is available for PR120H, PR350H, and PR750H.
Sub-Frame
PR350H Sub-Frame, item 513751
PR750H Sub-Frame, item 513503
The sub-frame is an extension of the machine's frame that elevates the chute to accommodate
a conveyor system or other automated container-lling system. If combined with the riser legs,
the machine will have an adjustable height of 330-600 mm (13-24 in).
